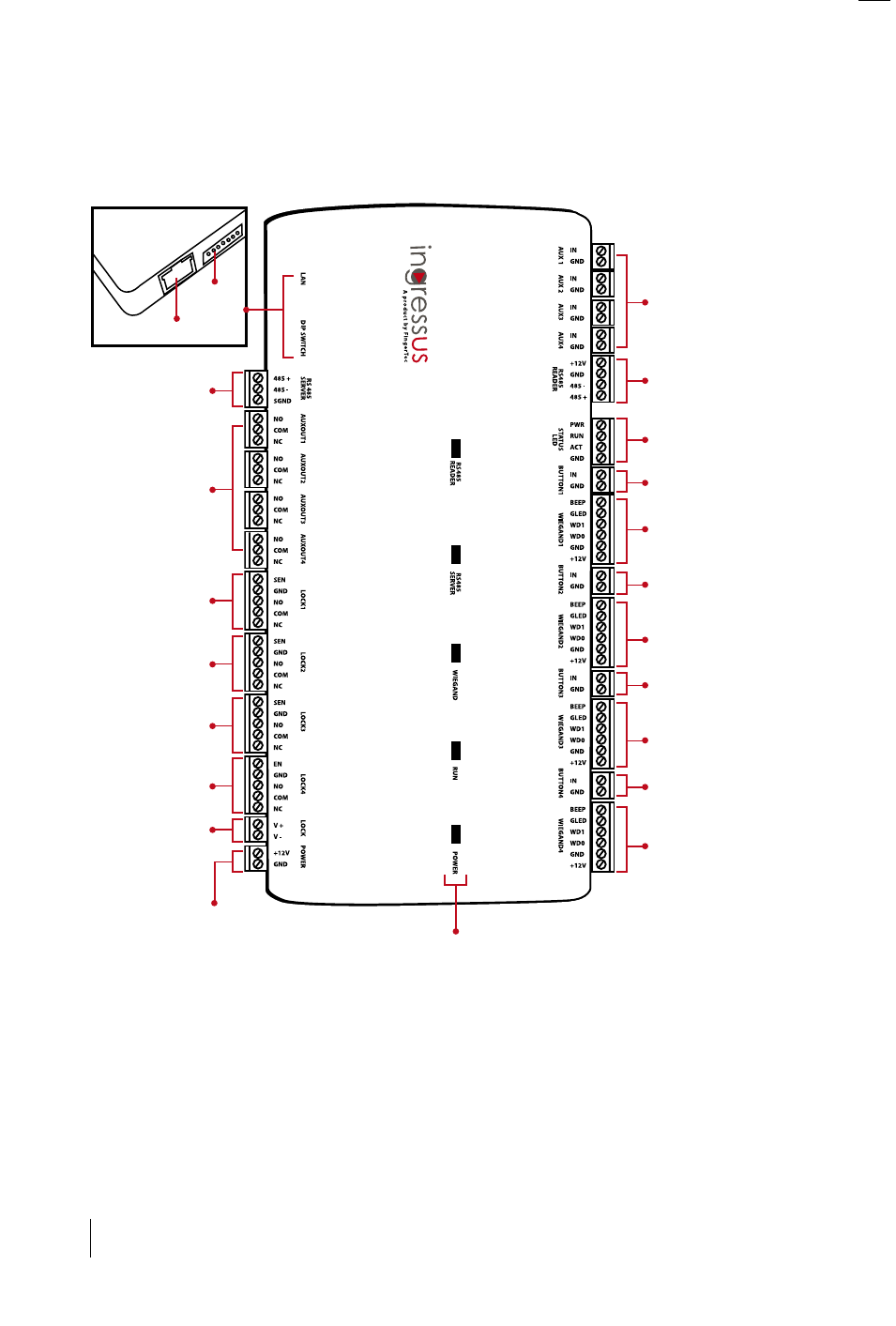

LED light indicators
TCP/IP Ports
DIP
switch
RS485 connection
to PC/server
AUX output ports
(max 4 ports)
Power input to
Ingressus
(Max12V 3A)
Door lock system
output (door 1)
Door lock system
output (door 4)
Power input for
door lock system
(Max 12V 3A)
AUX input ports
(Max 4 ports)
RS485 reader
input ports
Status LED output
ports
Push release button
input ports (Door 1)
26-bit Wiegand
input ports
(Wiegand reader 1)
26-bit Wiegand
input port
(Wiegand Reader 3)
26-bit Wiegand
input ports
(Wiegand reader 4)
Push release
button input ports
(Door 4)
Door lock system
output (door 3)
Door lock system
output (door 2)
Push release
button input ports
(Door 3)
26-bit Wiegand
input ports
(Wiegand reader 2)
Push release
button input ports
(Door 2)
• Ingressus IV
