FingerTec Ingressus IV - Manual (Page 22)

22
Name of LED
RS485 Reader
RS485 Server
Wiegand
Run
Power
LAN
Descriptions
Blinks to indicate
• RS485 reader captures and sends fingerprints or
card ID to Ingressus to verify.
• Ingressus replies to RS485 reader with the verifica-
tion result.
Blinks to indicate data transfer between Ingressus
and server via RS485 network.
Blinks to indicate
• Wiegand reader captures and sends card ID or pass-
word to Ingressus to verify.
• Ingressus replies to Wiegand reader with the verifi-
cation result.
Blinks to indicate Ingressus is working in good order.
Lights up to indicate Ingressus is receiving sufficient
power.
Blinks to indicate data transfer between Ingressus
and server via LAN (or TCP/IP) network.
Color of LED
Yellow & Green
Yellow & Green
Yellow
Green
Red
Yellow

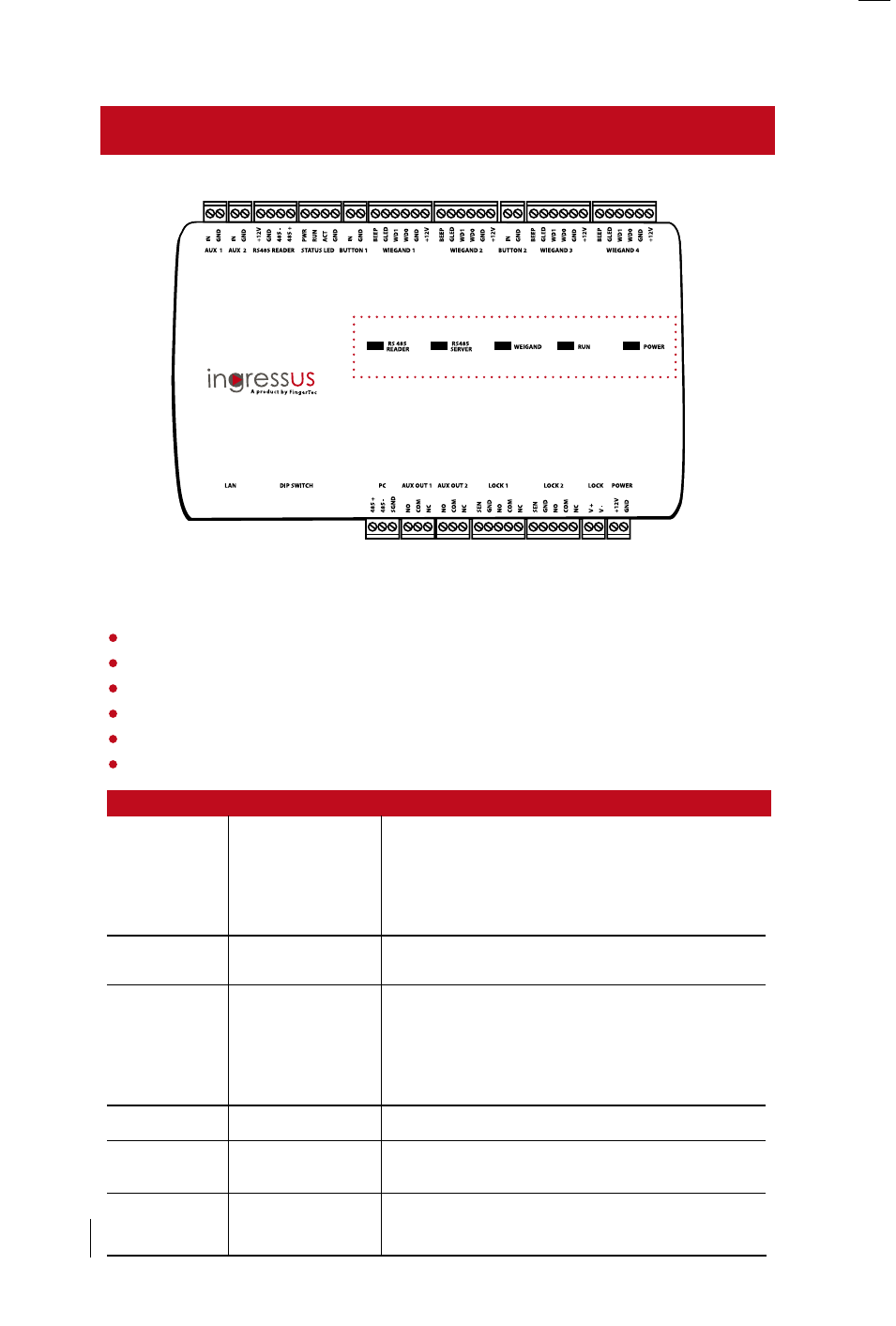

5 • LED LIGHT INDICATOR
There are a total of LED light indicators on Ingressus. They tell the status of:
LAN connection to server,
RS485 connection to server,
RS485 reader to Ingressus,
Wiegand reader to Ingressus,
Operating system of Ingressus, and
Power input to Ingressus.
