Nexys3 Reference Manual
Doc: 502-182 page 6 of 22

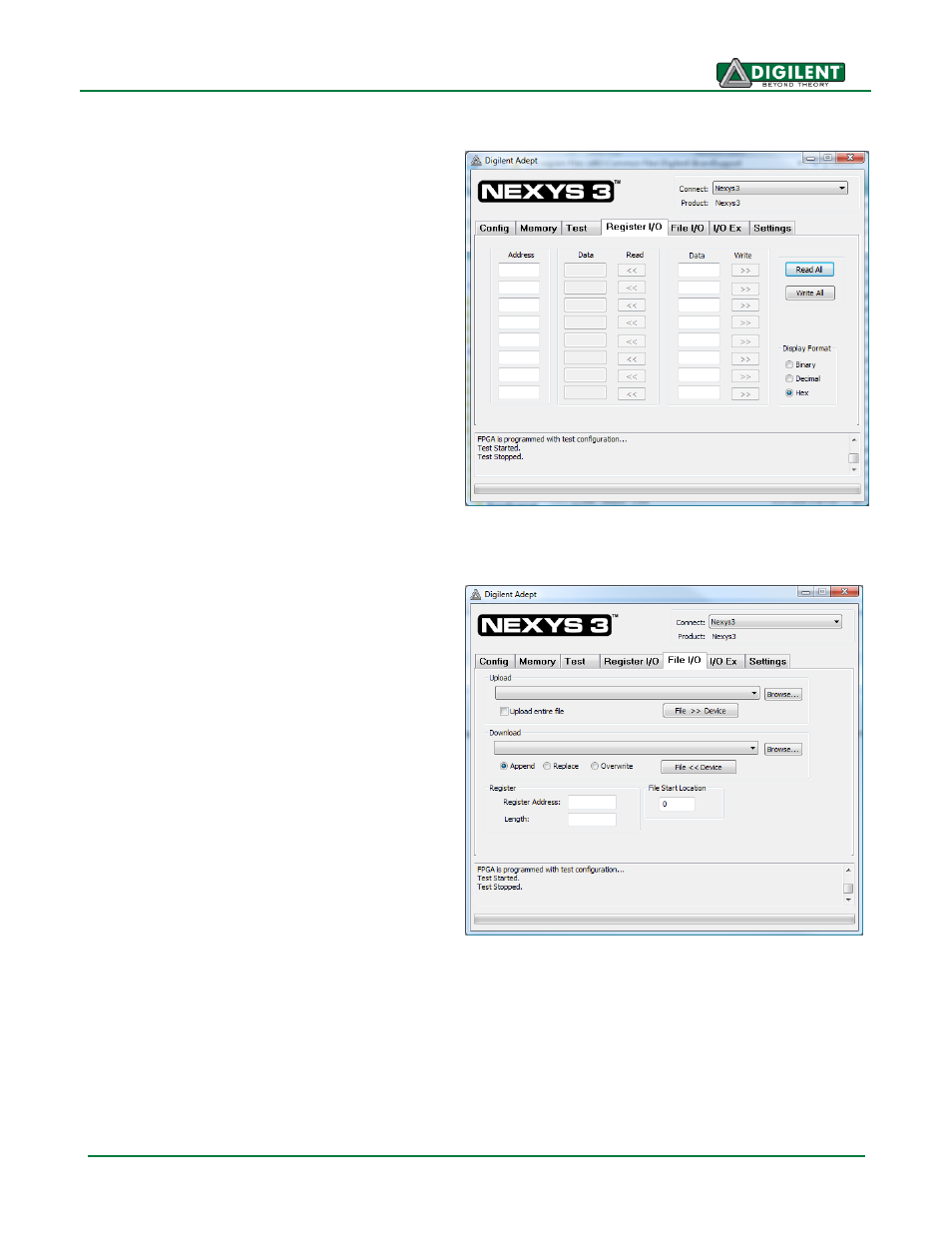

Register I/O
The register I/O tab requires that a
corresponding IP block, available in the
Parallel Interface reference design
(DpimRef.vhd) on the Adept page of the
Digilent website, is included and active in the
FPGA. This IP block provides an EPP-style
interface, where an 8-bit address selects a
register, and data read and write buttons
transfer data to and from the selected address.
Addresses entered into the address field must
match the physical address included in the
FPGA IP block.
Register I/O provides an easy way to move
small amounts of data into and out of specific
registers in a given design. This feature greatly
simplifies passing control parameters into a
design, or reading low-frequency status
information out of a design.
File I/O
The File I/O tab can transfer files between the
PC and the Nexys3 FPGA. A number of bytes
(specified by the Length value) can be
streamed into a specified register address from
a file or out of a specified register address into
a file. During upload and download, the file
start location can be specified in terms of
bytes.
As with the Register I/O tab, File I/O also
requires specific IP to be available in the
FPGA. This IP can include a memory
controller for writing files into the on-board
Ram and Flash memories.
