16 - DeviceMaster AIR User Guide: 2000365 Rev. C

Hardware Installation and WLAN Configuration

Configuring an IP Address (Static or DHCP)

Enter Admin as the User Name, enter the password, and select Ok.

Select the Network tab.

Select the appropriate type of IP addressing for your environment.

DHCP IP Addressing

Select Dynamic IP Address and select Apply.

Note: If you have not done so, give your System Administrator the WLAN

MAC address of the DeviceMaster AIR so that they can assign an IP
address from the DHCP pool of reserved addresses.

Static IP Addressing

Select Static IP Address and enter appropriate values for your network and
select Apply.

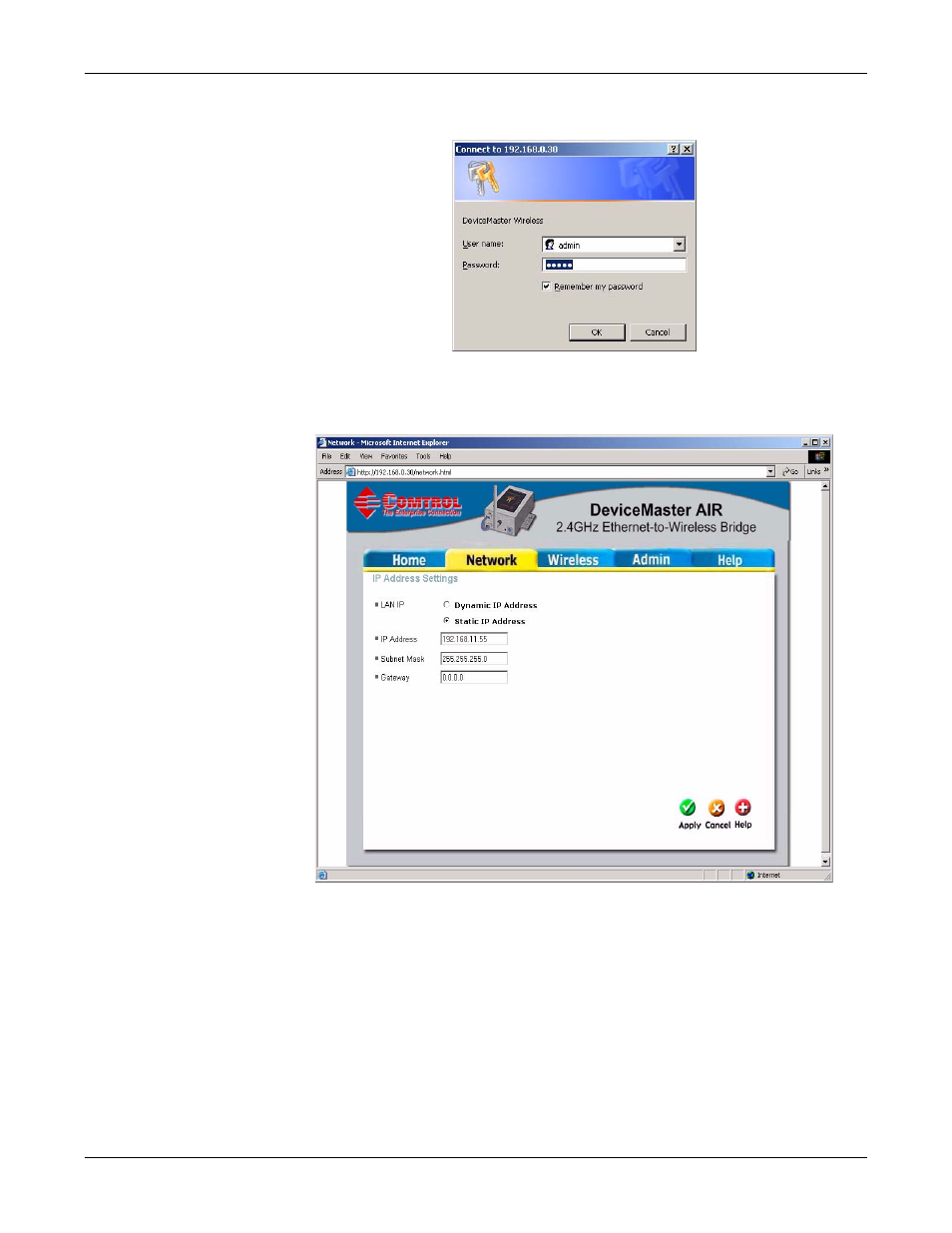

This illustrates a Windows XP

connection. Windows Server 2003
and Windows 2000 are similar.

This screenshot illustrates a static IP address installation.
