Connections
Connecting Devices to the Front Panel Inputs
A set of inputs (Input-4) are provided for your convenience on the front panel of the
AV-56WP30 or AV-48WP30. The inputs are located behind the door at the center of the front
panel below the indicator lights. These inputs are designed for the easy connection of devices
like
camcorders or game consoles which are not permanent parts of your home entertainment
center.
® f
JVC
To access the front panel jacks, gently pull the tab on the door torwards you to open it.

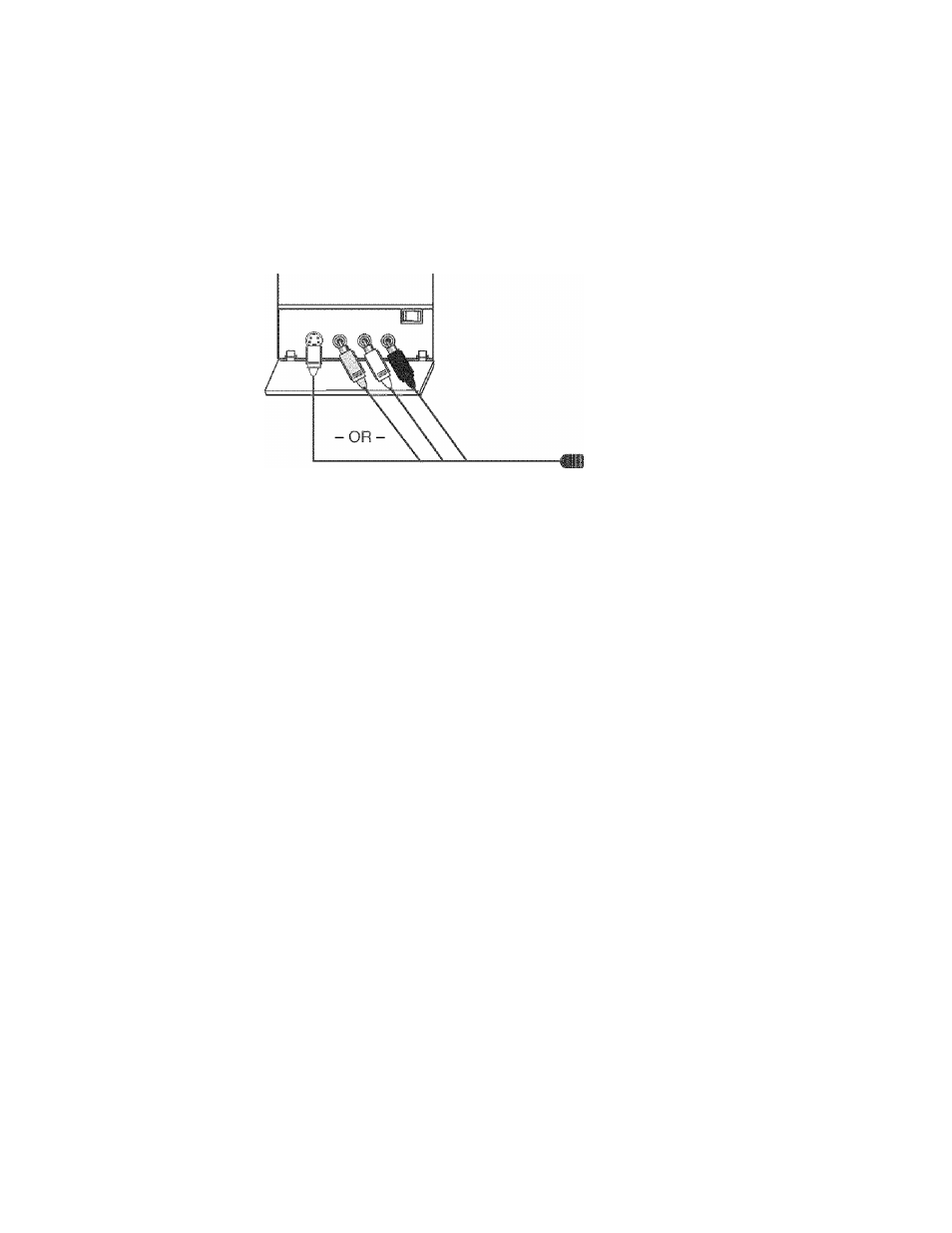

To connect a device like a camcorder:
1) Connect the yellow video cable from the device’s Video Output jack to the TV’s Video Input
jack, or connect an S-Video cable from the camcorder’s S-VIdeo Output to the TV’s S-Video
Input.
2) Connect the white (or black) audio cable from the device’s Left Audio Output jack to the TV’s
Left
Audio input jack.
3) Connect the red audio cable from the device’s Right Audio Output jack to the TV’s Right
Audio Input jack.
• If you are connecting a mono sound device it will have only one audio out jack. Connect it to
the TV’s left audio input jack.
• The device will be available on Input 4 on the Input Menu (see page 58) if the connection shown
above is used.
• Please consult your camcorder or other device’s owners manual for more information on its
operation.
19
