Connecting to a Digital TV Receiver w/HDCP
By inputting a high bandwidth Digital Content Protection High Definition picture source to the
Digital-In terminal of this television, high-definition pictures can be displayed on the screen in
their digital form. (This terminal is for use in the future when high bandwidth Digital Content
Protection DTV decoders and DVD players and D-VHS are put on the market.)

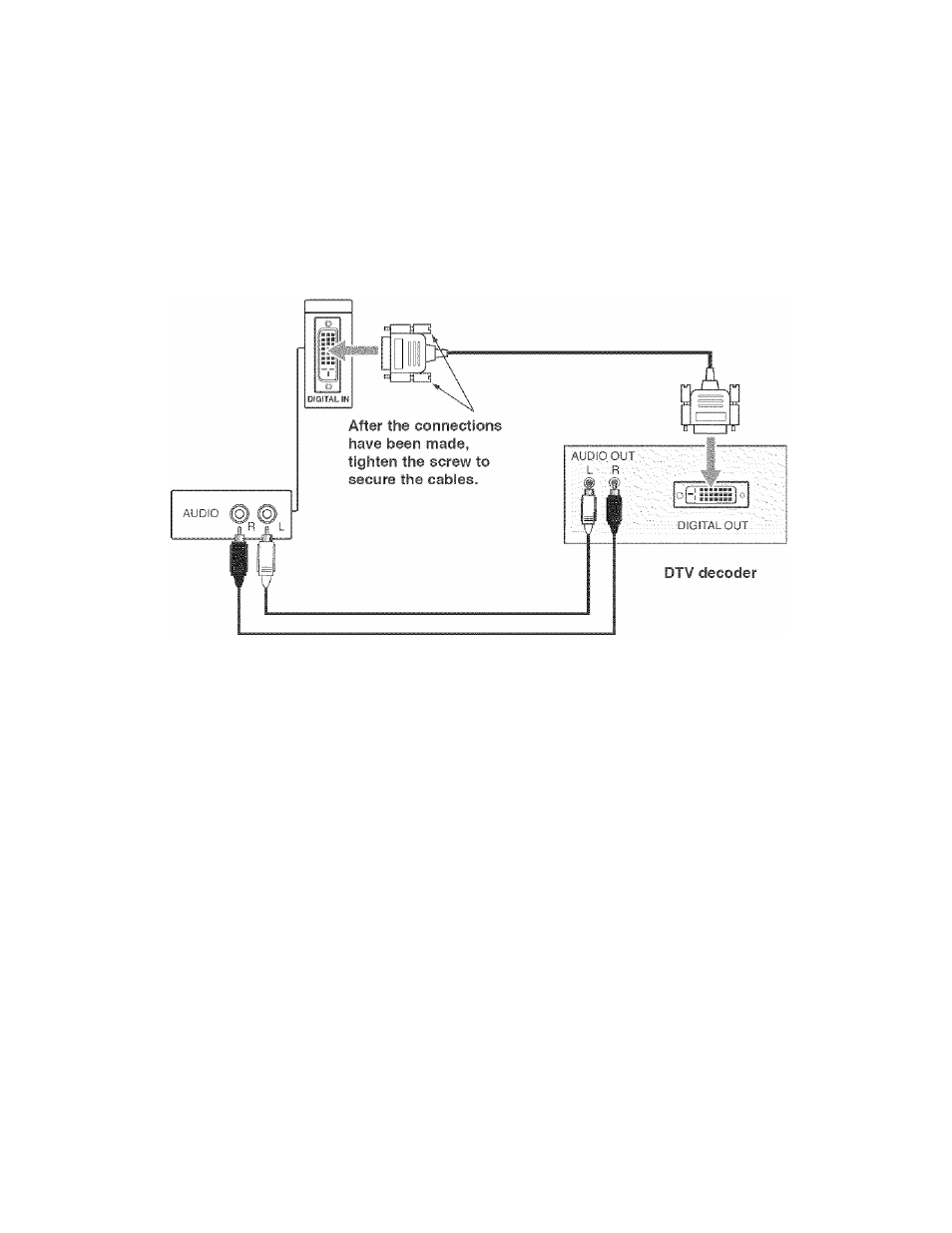

Connections-----------------------------
1) Connect the DTV digital RGB output terminal to the digital input terminal of the television,
and then tighten the 2 screws.
2) Connect the DTV decoder left audio output to the DIGITAL-IN left audio input.
3) Connect the DTV decoder right audio output to the DIGITAL-IN right audio input.
• The Digital-In terminal can only be used with lOSOi, 720p and 480p picture signals. Set the
DTV decode Digital-Out terminal output setting to 10801, 720p or 480p. For detailed
information, refer to the DTV decoder instruction manual, if you can not display the picture
because your DTV decoder does not have a Digital-Out terminal output setting, use the
component Video input (or the S-Video input or Video Input). (Refer to page 15) In this case
the picture will be displayed as an analog signal.
• The Digital-In terminal is not compatible with the picture signal of a personal computer.
• Use a DVi-D Single Link 19-pin cable (commercially available) in order to digitally connect
the television with a DTV decoder.
If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance may
be slightly shifted, in cases such as this, the horizontal balance can be adjusted by accessing
“DIGITAL-IN” in the INITIAL SETUP Menu. (Refer to page 41.)
16
