Quick Setup 2
Step Two - Making Basic Connections

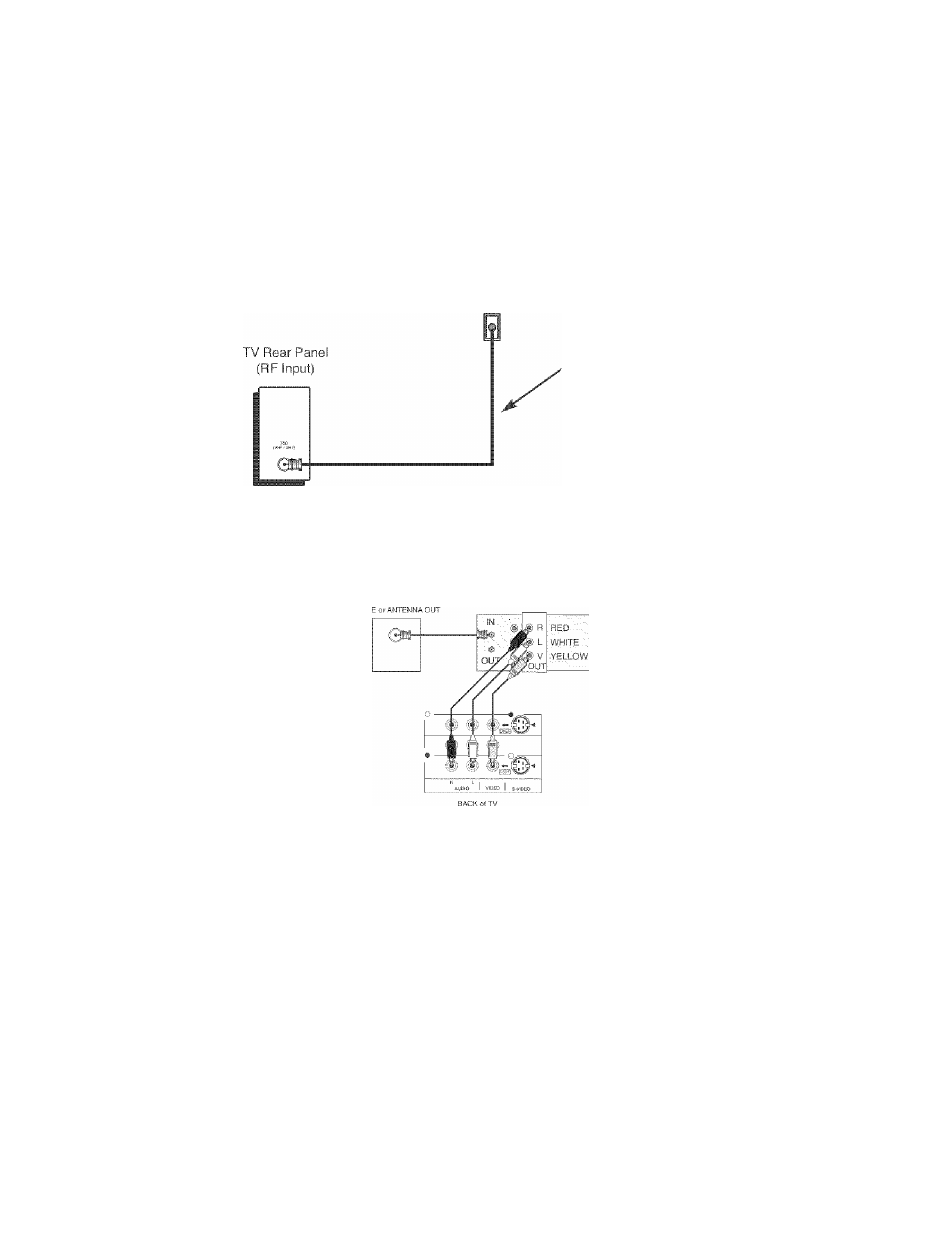

Next you will need to connect your television to an antenna, VCR or cable system. The most
basic VCR and antenna/cable connection is shown below. For more detailed connections,
such as ones where a cable box is required, or connecting with a combination of a cable box
and VCR, home stereo system, etc., see pages 12 to 20.
Cable or
Antenna
Output
. Cable/RF connector
1) Connect an RF Cable from the wall outlet into the RF Cable In on the back of the TV.
Connecting to a VCR
1) Connect the Red Cable from VCR Audio Output into the Red TV Audio In.
2) Connect the White Cable from VCR Audio Output into the White TV Audio In.
3) Connect the Yellow Cable from VCR Output into the Yellow TV Video In, OR Connect an
RF Cable from VCR RF Cable Out into the RF Cable In on the back of the TV.
NOTE:
• White, Yellow and Red are the most common colors for VCR Cables. Some models may
vary in color. Please consult the user’s manual for your VCR Player for more information.
• See page 23 for instructions on programming your remote control to operate the basic
functions of your VCR Player.
10
Proceed to Step Three
