Connections
Connecting to Cable or an Antenna
There, are three basic,types .ofanienna or-cable connections: ■
■
' "
•'/ .If you have a,na.ntenn.a o.r have,a.cable, system that
does not require you use a cable '
box.to select channels,'.please refer to Diagram #1,-
■. ..
... .
. . ' . . . . . :
•
If you have. a cable system that requires the us.e.of a cable .box to access all the ■
.
. -channels, please refer to .Diagram #2.
.
.
.y. -T
. ...: . ■
.
•. . If you have.a.cable.system that requires.the.'use of alcable.box to. access certain '
■ ■.■
premium channels, b.ui not “basic” cable channels, please refer to Diagram #3.
•: ..For your convenience, .connection to a VCR is .also shown in the. .following .diagrams. - A
- VC.R.
1
S not necessa.ry.for operation of .t.he television, .or Picture OUT or'Picture POP
-. function. You may-omit the VCR from your connections, if .you wish. . . . .
'- .
. - .
:• For instructions DH Connecting a VCR only,'please .see .the Qu.ick Setup on page 1.0. '. ■ .
•
For information on using POP, please see page 54. y - '
' \y - '
-
-

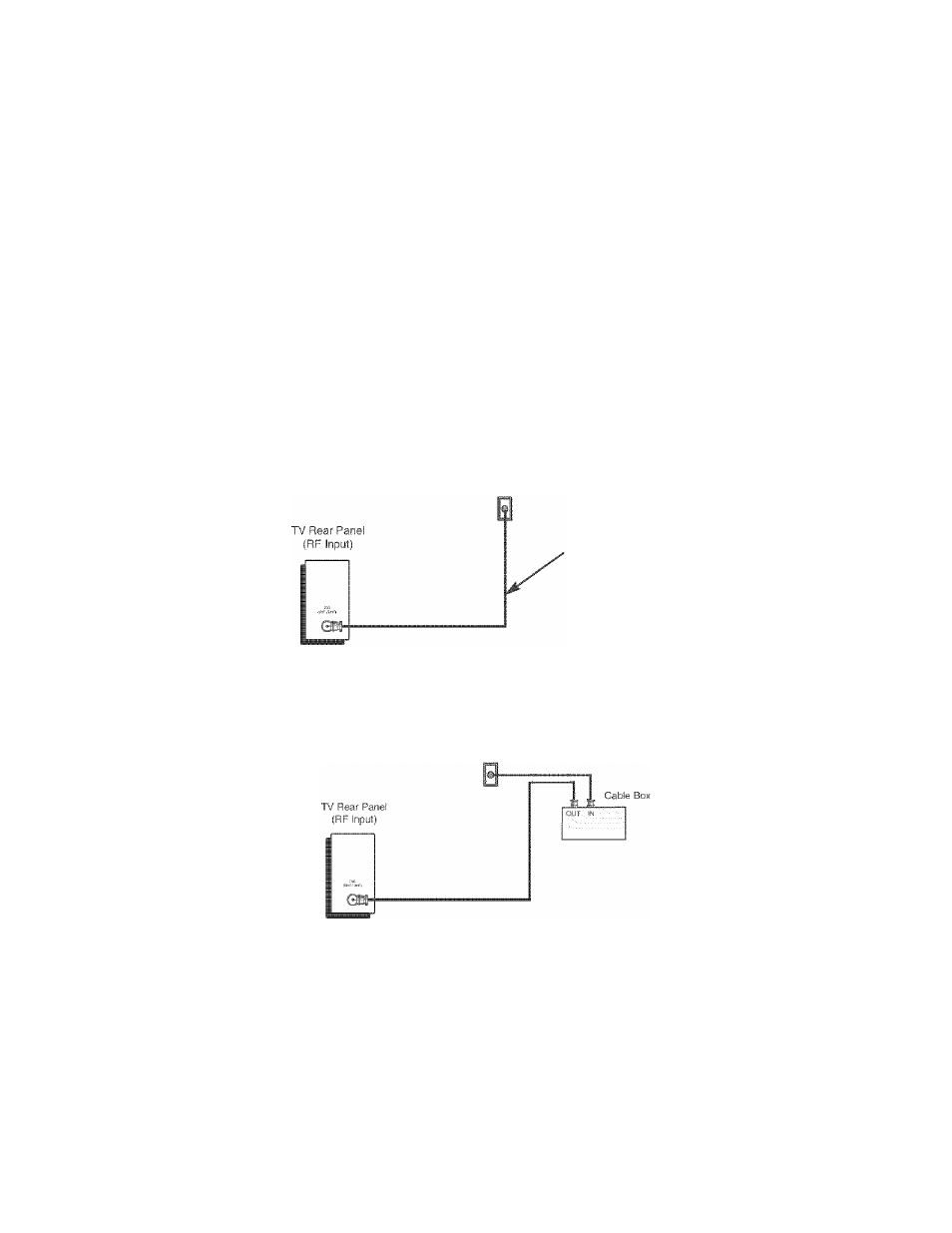

Diagram #1
Cable or Antenna
Output
. Cable/RF connector
1) Connect an RF Cable from the wall outlet into the RF Cable In on the back of the TV.
Connecting to a Cable Box
Diagram #2
Cable or Antenna
Output
1) Connect an RF Cable from the wall outlet into the RF Cable In on the Cable Box.
2) Connect an RF cable from the Cable Out on the cable box into the RF Cable In on the back
of the TV.
NOTE:
• Please see page 54 for more information on using the POP feature with a cable box.
13
