Connections
Connecting to a Cable Box and VCR

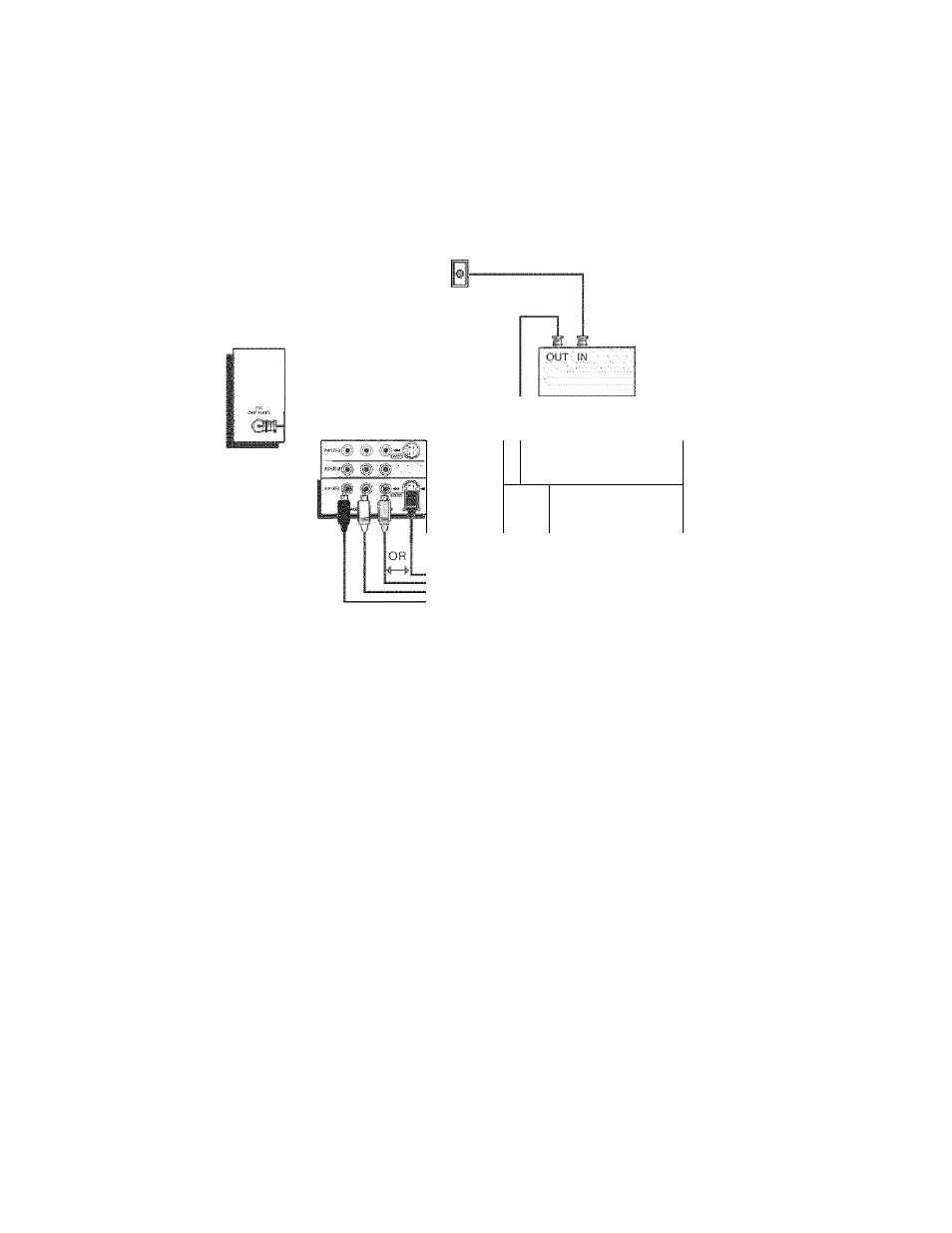

Diagram #3
Cable or Antenna
Output
TV Rear Pane!
Cable Box
VCR
J IN \
V L «
-------fmg ®
OR
1) Connect an RF Cable from the wall outlet into the RF Cable Box In.
2) Connect an RF Cable from the Cable Box Out into the VCR In.
3) Connect an RF Cable from the VCR Out into the RF In on the back of the TV.
4) Connect the Red Cable from VCR Right Audio Output into the Red TV Audio In.
5) Connect the White Cable from VCR Left Audio Output into the White TV Audio In.
6) Connect the Yellow Cable from VCR Output into the Yellow TV Video In, OR Connect an
S-Video Cable from VCR S-Video Out into the S-Video In on the back of the TV.
NOTE:
• White, Yellow and Red are the most common colors for VCR Cables. Some models may
vary in color. Please consult the user’s manual for your VCR Player for more information.
• See page 23 for instructions on programming your remote control to operate the basic
functions of your VCR Player.
The connection diagrams are'intended to show,some .tsasic, genera! .connections. '.' ;
Borne, cable companies, may require special connections .to properly use..your ■ ..
: ■
television.o.r.2-tyner M.ULTi.SCREEN futictlon. If you follow.these diagrams and..either
the te!ev.lslo.!i .or PiP.does not work.properly,.contact your local .cable.operato.r.lor. ■ .
more-connection information. Please see page 54.tor more information! on'the POP . r
feature., . . . . . . . . . . : . . . . . . : . . . : . . . . . . : . . . : . . . . . . : .
14
