12. DC POWER SUPPLY AND POWER CONNECTION
The following specifications are required for DC power supply (DC 12V).
Output voltage: DC12V±10%
Current capacity: More than 600mA
Ripple voltage: Under 50mVp-p
Make sure to supply the camera with power from one terminal either of 'DC 12V IN' or 'DC
IN/SYNC'. In case the power Is supplied from both terminals simultaneously, the power
supply may be damaged.
Terminal Connector Connector polarity
DC 12V IN HIROSE HR10A-7P-4S Pin 1, 2 : +
Pin 3, 4 : -
DC IN/SYNC HIROSE HR10A-10P-12S Pin 2 : +
Pin 1 : -

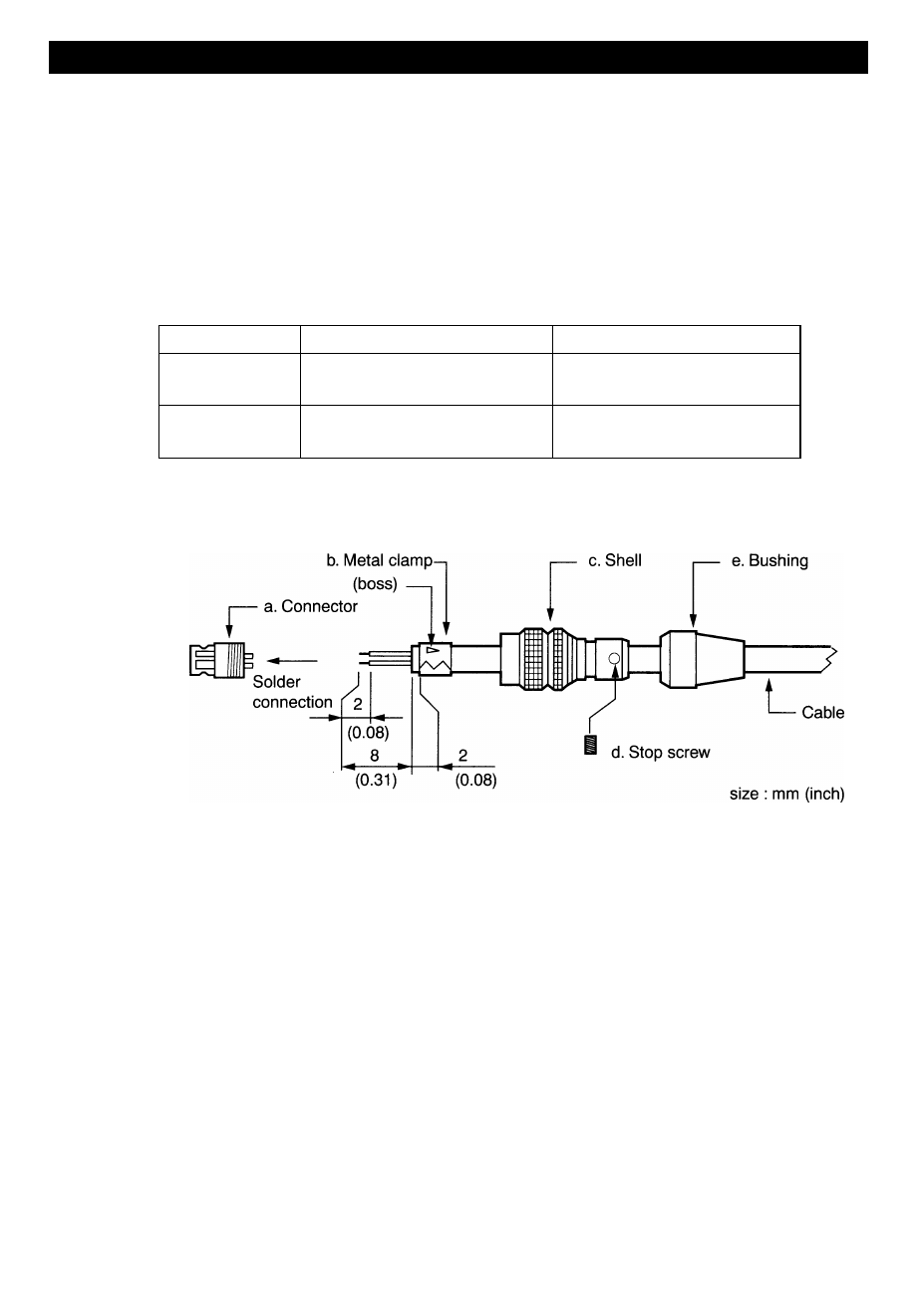

Use the supplied connector HR10A-7P-45 (of HIROSE). The connector consists of the fol­
lowing five parts a through e:
Use a cable diameter 5 mm (0.2 inch) or less.
Procedures
1. Insert the cable into the bushing and the shell, as shown. (To avoid losing the stop
screw, remove it beforehand.)
2. Solder the cable to the connector. (Check for continuity to avoid short circuit between
terminals.)
Pin assignment:Pins 1,2 + Pins 3, 4 -
3. Secure the metal clamp by clinching. Use the application tool HR10A-TC-02 of HIROSE.
(Apply with 5.3 side.)
4. Screw the shell onto the connector until tight. (Make sure not turn the connector and
the cable. Otherwise, the cable will be twisted.)
5. Tighten the stop screw so that it fits securely into the boss. Use a 0.05 inch (1.27 mm)
hexagon wrench.
6. Slide the bushing up until it fits securely against the shell, covering the connections.
