14 15
5. Press the or button to select AUTO or ON. Press the PROG button, the thermostat will now display
the
DAY setpoint time and temperature. Again, you will see the hour portion of the setpoint time and the
AM/PM indicator will be flashing.
6. Follow steps 3 through 5 to set the setpoint times and temperatures and fan mode for the DAY, EVE and NIGHT
for the
HEAT mode.
7. After pressing the PROG button, you will enter the Weekend Program Group. The display will show SA, SU to
indicate the Weekend Group is being programmed. The hour portion of the
MORN setpoint time and the AM/PM
indicator will be flashing.
8. Follow steps 3 through 6 to set the setpoint time and temperatures and fan mode for the DAY, EVE and NIGHT
for the
HEAT mode.
9. Press the SYSTEM button to select COOL to set cooling times and temperatures. The display will show COOL.
Follow steps 3 through 6 to set the setpoint times and temperatures and fan mode for the
COOL mode.
10. Press the RETURN button to return to the normal mode, or wait 30 seconds for the thermostat to
return automatically.
NOTE: To erase all entered programs, current time of day, day of week and other user settings, gently press the
RESET button using a paper clip or a small pencil tip. This will return all thermostat settings to their default values.
See the Installer Guide.
2
PROGRAMMING
USER SETTINGS cont.
3
ADDITIONAL
OPERATION FEATURES

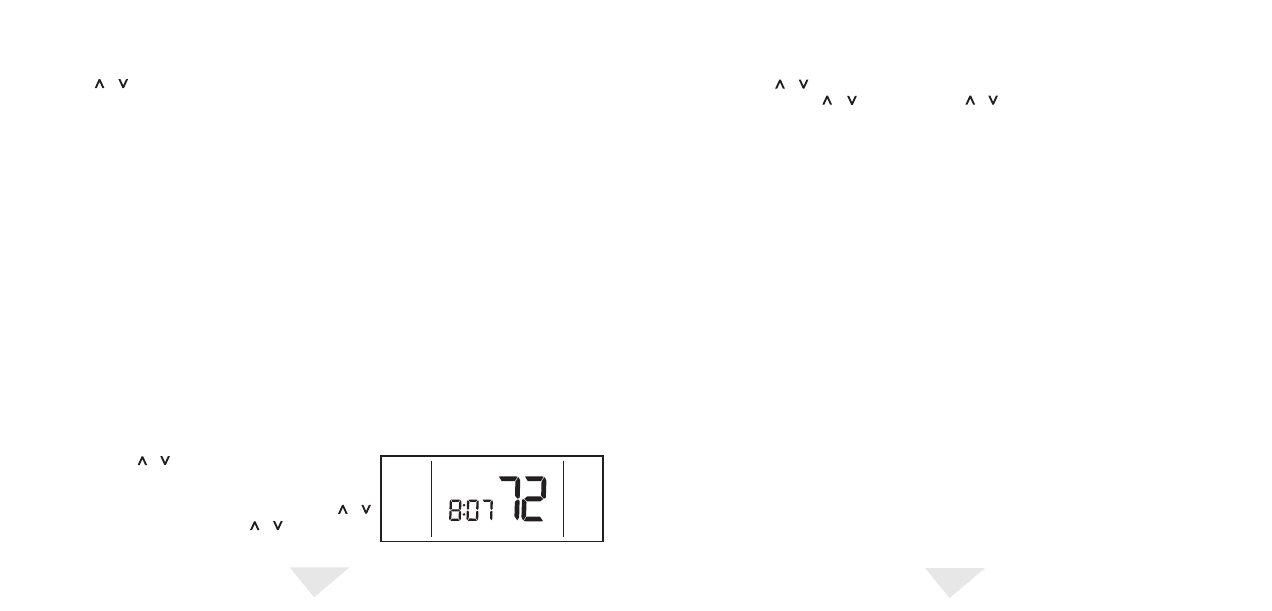

3.1 Review/Change Set Temperature, Non-Programmable Mode
1. Press and hold the or button. The current setpoint temperature
will be displayed in the place of the current room temperature,
and the indicator
SET will be displayed.
2. The display will return to normal operating mode when the or
button is released. Continuing to hold the or button for 1
second or longer will allow the user to change the current
setpoint temperature.
3
ADDITIONAL
OPERATION FEATURES
3. Press and hold the or button for 1 second. The entire display will flash once and the SET indicator
will be flashing. Release the or button and press the or button again to adjust the
setpoint temperature.
4. The display will return to normal mode after 15 seconds or by pressing the RETURN button.
5. By selecting the opposite system mode (HEAT or COOL) with the system button you can review or change
the set temperature for that mode.
NOTE: If Auto Changeover is enabled in the Installer Options, and a setting is made in either heating or cooling
which violates the dead band, the opposite mode will adjust up or down automatically to maintain the dead band
spacing. Any change made to the setpoint temperature only applies to the current mode. To review or make
changes to the opposite mode that mode must be selected and the above procedure followed. AUTO can then be
selected after the heating and cooling setpoints are set.
3.2 Auto Changeover Mode
When Auto Changeover mode is enabled and selected, the system automatically switches between heating and
cooling when the room temperature meets the programmed heating or cooling setpoints. While in AUTO mode,
the thermostat will constantly monitor the room temperature to determine whether to run the HEAT or COOL mode
to maintain a comfortable temperature. To operate properly, the thermostat requires a “dead band” setting to
eliminate program conflicts. The dead band is set in the Installer Options (see section 4.2 of the Installer Guide).
The default is 3º F (1.5º C). Therefore, there is 3º F between the highest HEAT setpoint and the lowest COOL
setpoint. For example, if the highest HEAT setpoint was 72º F, the lowest COOL setpoint would be 75º F. If a setting
is made in either heating or cooling which violates the dead band, the opposite mode will adjust up or down
automatically to maintain the programmed dead band spacing.
3.3 Remote Indoor Sensor
The 5390 Remote Indoor Sensor senses the air temperature at a remote location and sends the information to
the 5300 thermostat. If installed at setup, the display temperature is either the temperature at the sensor or an
average of the temperature at the sensor and the temperature at the thermostat.
cont.
SYSTEM FAN MO
HEAT
AUTO
AM
SET
