2.5.1 Entering Your Program–7 Day Mode
The 7 Day mode has separate Whole Week or Individual Day programming to allow you to change the daily
setpoint times and temperatures to meet your individual schedule needs. The Whole Week programming can
be used to set the main portion of your schedule, allowing you to later modify specific days of the week as
required using the Individual Day programming capabilities.
Whole Week – allows you to program all seven days (MO, TU, WE, TH, FR, SA, SU will show in display) at the
same time. Then you can use the individual day programming to fine tune your program for the few setpoint
times or temperatures that you may wish to change.
Individual Days – allows you to program each day of the week individually to give you the greatest schedule
flexibility. Often used to fine tune programming after initial programming.
IMPORTANT NOTE!
When in Whole Week programming, the thermostat will check if all of the days of
that group have the same program setpoint times and temperatures. If so, the setpoint time and temperature
of the individual setpoint will be displayed.
Otherwise, the individual setpoint time and temperature will be blanked. The user is allowed to change the daily
programs for this setpoint time and temperature by pressing the or button. This will reset all the daily
programs of the group for that specific individual setpoint time and temperature to the startup default for that
setpoint. Continued pressing of the or button by the user will change setpoint time and temperature
settings as desired.
Residential

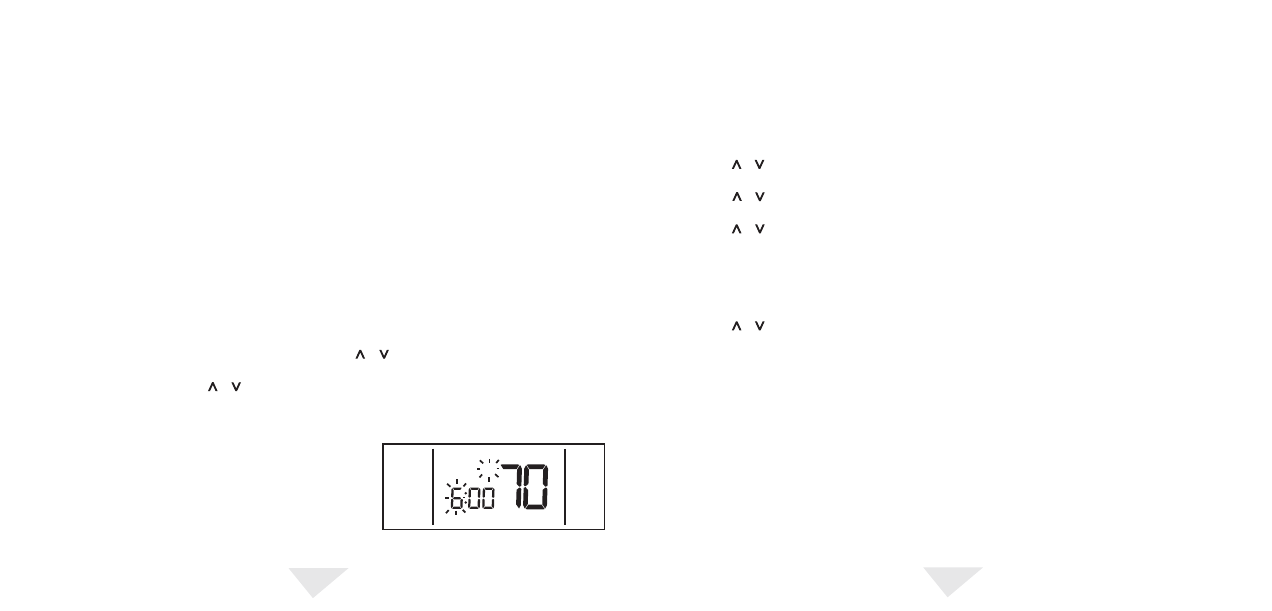

1. Press the PROG button to enter the Program setting mode.
Press the
SYSTEM button to select HEAT (not AUTO HEAT) to set
heating times and temperatures. MORN setpoint of the “Whole
Week” will be displayed. The display will show MO, TU, WE, TH,
FR, SA, SU to indicate the whole week is being programmed.
The hour portion of the setpoint time and the
AM/PM indicator
will be flashing.
2
PROGRAMMING
USER SETTINGS
cont.
2
PROGRAMMING
USER SETTINGS
cont.
NOTE: If Auto Changeover is enabled in the installer options, the heating and cooling programs share time and
fan settings. If a setting is made in either heating or cooling which violates the dead band, the opposite mode
will adjust up or down automatically to maintain the dead band spacing, see section 3.2.
2. If you wish to program each day individually press the DAY/TIME button to select each day.
3. Press the or button to change the time to the desired hour in one hour increments. Press the PROG
button, the minute portion of the setpoint time will begin flashing.
4. Press the or button to change the time to the desired minute in 10-minute increments. Press the
PROG button, the SET temperature will begin flashing.
5. Press the or button to change the setpoint temperature to the desired setting in 1˚ F increments
(0.5˚ C). Press the
PROG button, the FAN mode will begin flashing.
NOTE:
The fan option is not available or displayed if the Fan LOCK was enabled during Installer Setup, see
section 4.2 of the Installer Guide.
6. Press the or button to select AUTO or ON. Changing the FAN mode to ON will cause the fan to run
during the entire programmed time period. Press the
PROG button, the thermostat will now display the DAY
setpoint time and temperature. Again, you will see the hour portion of the setpoint time and the AM/PM
indicator will be flashing.
7. Follow steps 3 through 6 to set the setpoint times and temperatures and fan mode for the DAY, EVE and
NIGHT for the HEAT mode.
8. Press the SYSTEM button to select COOL to set cooling times and temperatures. The display will show COOL.
Follow steps 3 through 7 to set the setpoint times and temperatures and fan mode for the
COOL mode.
NOTE:
Press the SYSTEM button to select COOL (NOT AUTO COOL) to set program.
9. Press the RETURN button to return to the normal mode, or wait 30 seconds for the thermostat to
return automatically.
