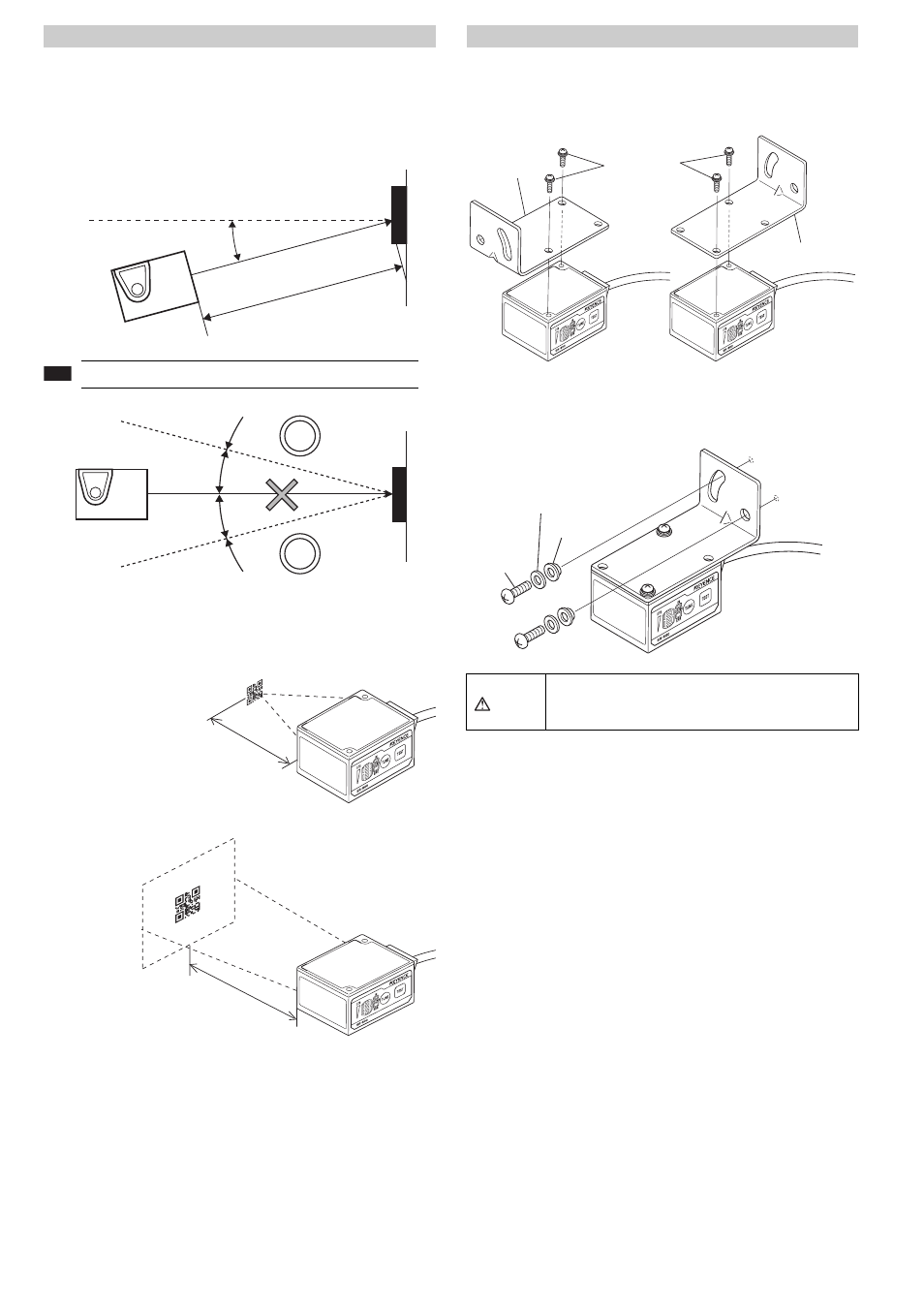

Install the SR-600 Series as shown below to ensure reading stability.
 Installation angle
The scanner of the SR-600 Series should be positioned at an angle of 15 ° in relation to
the 2D code or barcode surface when carrying out reading.
 Adjusting the installation position and distance
1
Press the TUNE switch on the SR-600 Series. The laser pointer will emit a laser
beam.
Adjust the installation position and distance so that the laser pointer intersection
point (the center point between the laser pointers for the SR-610) and the center of
the barcode line up.
For the SR-600/600HA
The distance where the left
and right laser beams
intersect is the optimal
reading distance.
Adjust the laser pointer's
intersection point so that it lies
directly in the middle of the 2D
code or the barcode.
For the SR-610
The two laser
pointers
indicate the
reading width.
Adjust the laser
pointers so that
the 2D code or
the barcode
lies directly in
the middle.
Refer to the user's manual for tuning and confirming reading stability.
• The reading distance and angle differ depending on conditions such as the size and
the print quality of the 2D code or the barcode. Carry out reading tests using the 2D
code or barcode to be used and make adjustments.
 Using the included mounting bracket
1
Attach the SR-600 Series to the mounting bracket.
Secure the mounting bracket with the included M3 screws.
2
Secure the mounting bracket to the device.
Secure the mounting bracket to the device using the installation screws, purchased
separately, with the included insulating spacers and washers. The installation
screws should be at least 3.7 mm (thickness of the bracket, washer, etc.) + 3 mm
long.
Installing the SR-600 Series
Note
• Do not position the scanner to face directly at 2D codes or barcodes.
Doing so may cause instability in reading due to mirror reflection.
Reading distance
15°
Reading distance
20° or more
15° or more
38 mm
(SR-600HA)
60 mm
(SR-600)
100 mm
Mounting the SR-600 Series
CAUTION
• Make sure to attach the included insulating spacers to
prevent excessive noise from the device.
• Reading errors may occur if the insulating spacers are not
attached.
Included
installation screws
M3 x2
Mounting
bracket
Mounting
bracket
Installation
screw (M4)
Washer
Insulating
spacer
