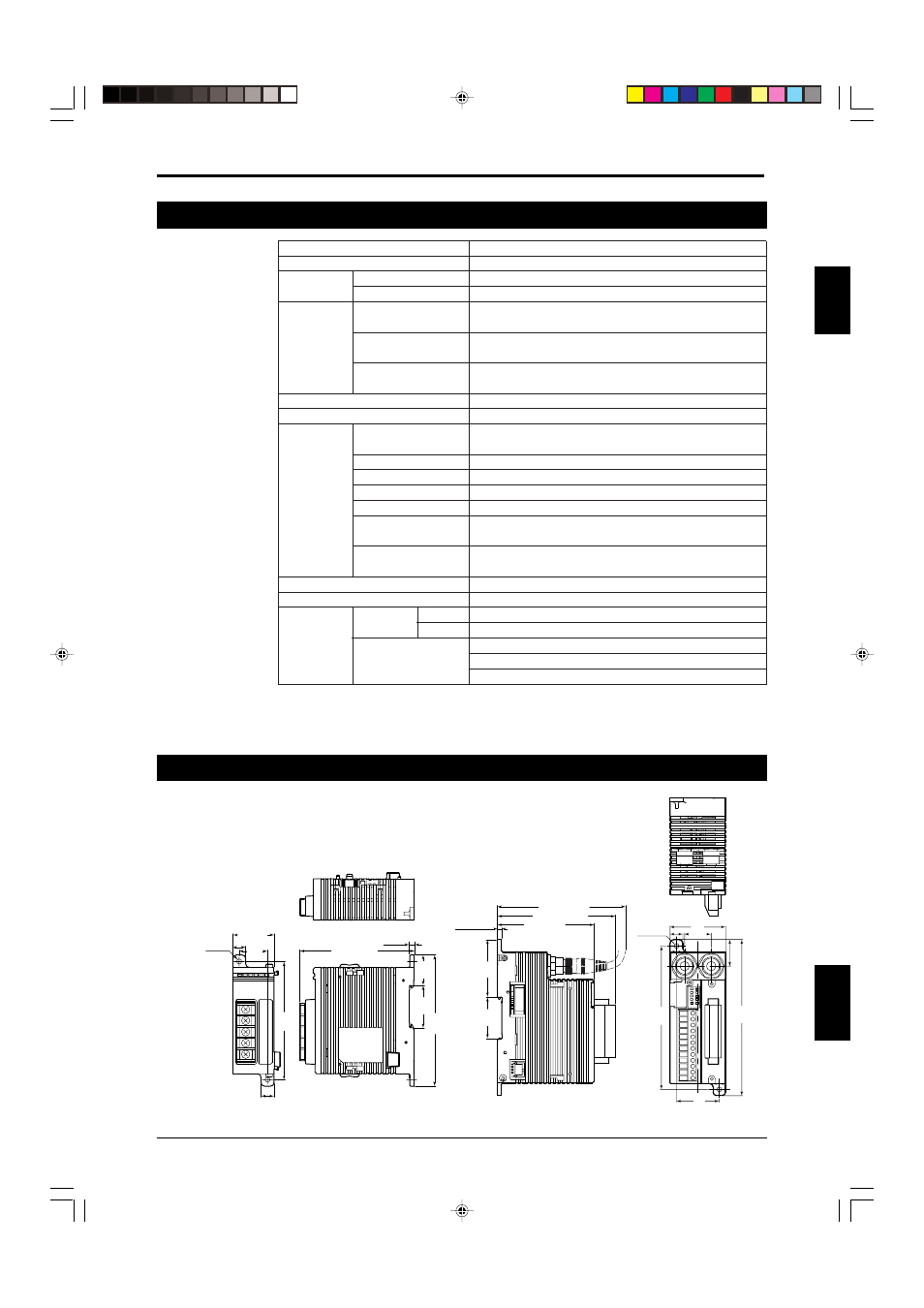

Chapter 1 Specifications
1-3
1
ENGLISH
1-2 Specifications
Model
Safety Light Curtain
Rating
Power supply voltage
Current consumption
Output FSD1, 2
AUX
Lifespan
Response time FSD1, 2, AUX
Response time during E-STOP input
Environmental Protective structure
specifications
Ambient temperature
Storage ambient temperature
Relative humidity
Storage ambient humidity
Vibration
Shock
Material
Weight
Approved EMC
EMS
standards * 1 EMI
Safety
SL-R11
SL-C Series
24V DC ±10% ripple (P-P) 10% max.
150mA max. (for SL-R11 only)
230 V AC 4 A, 30 V DC 2 A (resistive load)
230 V AC 2 A, 30 V DC 1 A (cos ø=0.3) (inductive load)
125 V AC 0.5 A, 30 V DC 2 A (resistive load)
125 V AC 0.25 A, 30 V DC 1 A (cos ø=0.3) (inductive load)
Mechanical life: 10 million times min.
Electrical life: 100,000 times min.
24ms (including sensor response time)*
2
20ms
IP20 (IEC60529) (Install in control panels equal to or
greater than IP54)
-10 to +55 °C (No frost)
-10 to +60 °C (No frost)
35 to 85% RH (No condensation)
35 to 95% RH
10 to 55 Hz double amplitude width 0.7 mm, 20 sweeps
each for X, Y, Z directions
100 m/s
2 (Approx. 10G) 16ms pulse, in X, Y, Z directions
1,000 times each axis
Polycarbonate
380 g max.
UL61496-1
FCC Part 15B Class A
UL61496-1 (type 4 ESPE)
UL61496-2 (type 4 AOPD)
UL508
*1 Evaluated in combination with the SL-C Series
*2 The OFF → ON return time is 150 ms.
1-3 External Dimensions Diagram
11
(0.43")
100
(3.94")
24
(0.94")
35 (1.38")
2-ш4.2
(96.6 (3.8"))
25.8
(1.02")
35.9
(1.41")
111
(4.37")
(ш0.17")
2-ш4.2
SL-U2 SL-R11
3.5 (0.14")
(102.3 (4.03"))
3.5
(0.14")
(112 (4.41"))
49.8
(1.96")
35.9
(1.41")
83.8 (3.3")
11 (0.43")
(ø0.17")
11 (0.43")
48 (1.89")
23 (0.91")
23 (0.91")
135
(5.31")
124
(4.89")
37
(1.46")
