2-4 MPCE (Machine Primary Control Element) Monitor
MPCE (Machine Primary Control Element) is the machine's main control element and is used between the
SL-R11 control output (FSD) and the machine to directly control the machine start/stop. The MPCE uses
safety relays, contactors, and so on, and inputting the feedback signal from these to the MPCE monitor input
terminal provided in the SL-R11 makes it possible to monitor MPCE errors. When an MPCE error causes the
FSD and MPCE operation not to be linked, the SL-R11 immediately turns off the FSD, and the SL-C Series
and SL-R11 go to the lockout condition.
➮ For details, See page 4-6 “4-3-3 Wiring to MPCE Monitor Input Terminal”.
MPCE monitor input
ON
OFF
ON
OFF
Clear
Blocked
FSD
24ms Max. 292ms Max.
ON
OFF
ON
OFF
Clear
Blocked
FSD
MPCE monitor
input
24ms Max. 292ms Max.
Lockout
condition Lockout
condition
MPCE monitor
input
* *
ON
OFF
ON
OFF
Clear
Blocked
FSD
MPCE monitor
input
24ms Max. 292ms Max.
ON
OFF
ON
OFF
Clear
Blocked
FSD
MPCE monitor
input
24ms Max. 292ms Max.
* *
* Depends on response time of machine’s MPCE

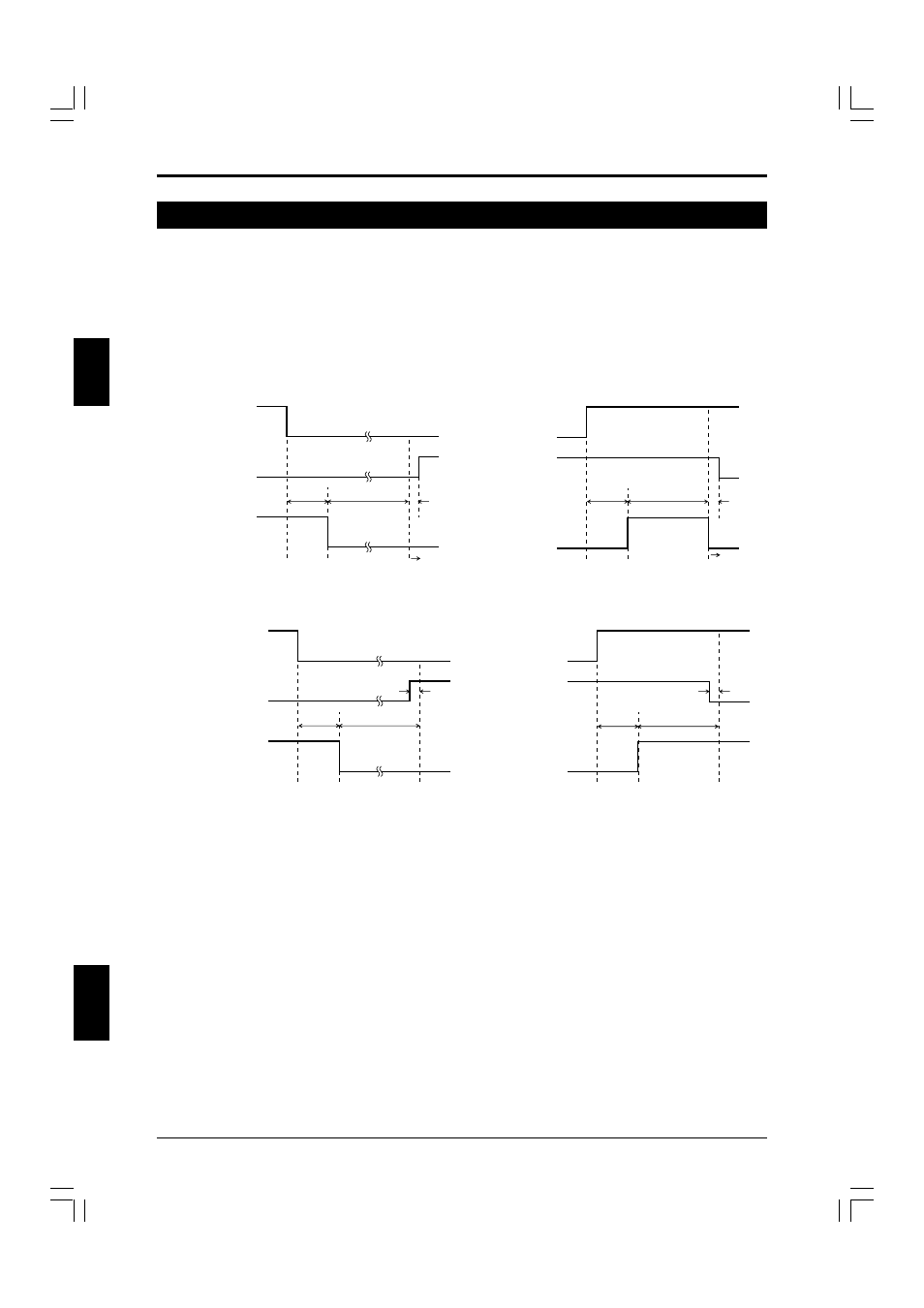

Timing chart when an error occurs
Timing chart when normal
