14

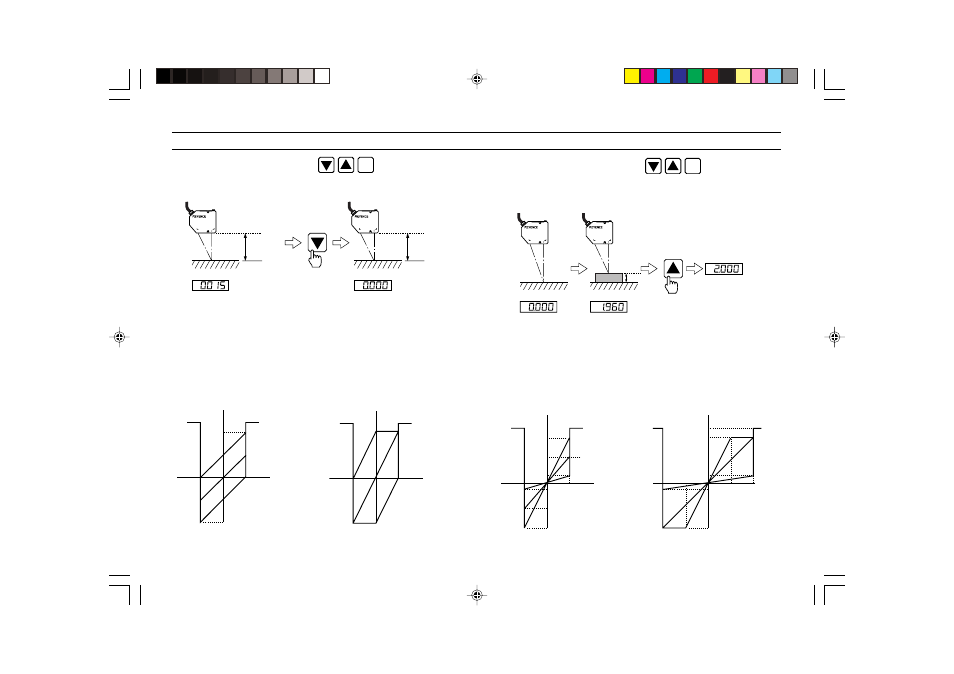

Shift adjustment function
Adjusts the analog value zero point using the UP/DOWN keys for shift
adjustment.
Holding down the UP/DOWN keys to change the shift value faster.
Pressing the ZERO RESET key for 2 seconds cancels the shift adjust-
ment value, and 0 V (12 mA) is output when the target is at the reference
position.
■ Shift adjustment range
LK-031/036/081/086
LK-501/503
LK-501/503 (Long-range mode) (High-precision mode)
Data in ( )* applies to the LK-081.
Data in ( )** applies to the LK-501/503 in long-range mode.
FUNCTIONS SHIFT/SPAN
Span adjustment function
Adjusts the analog value inclination using the UP/DOWN keys for span
adjustment. Use the span adjustment when the sensor head is tilted or
the target surface condition affects the analog output characteristics.
Holding down the UP/DOWN keys to change the span value faster.
Pressing the RESET key for 2 seconds cancels the span adjustment
value, and the output characteristics are reset to the factory-set values.
■ Span adjustment range
LK-031/036/081/086
LK-501/503
LK-501/503 (Long-range mode) (High-precision mode)
Data in ( )* applies to the LK-081.
Data in ( )** applies to the LK-501/503 in long-range mode.
ZERO
RESET
LK-031
30.015 mm 30.015 mm
LK-031
V V
10
5
0
-5
-5
(-15)*
(-250)**
5
(15)*
(250)**
-10
12
Distance (mm)
Output voltage (V)
RESET
LK-031
V
LK-031
V
2.000 mm
V
10
5
0.5
0
-5
-0.5
-5
(-15)*
(-250)**
5
(15)*
(250)**
-10
12
Distance (mm)
Output voltage (V)
Value is inaccurate due to reflective property of the target surface.
10
5
10 -100 100
-10
12
Distance (mm)
Output voltage (V)
10
1
0
-1
50
-50
100 -100
-10
12
Distance (mm)
Output voltage (V)
