12
Measuring distance
LK-031/036/081/086/501/503
To measure the thickness of a moving object, place the target close to
the reference position where the spot diameter is smallest. This assures
the most stable detection.

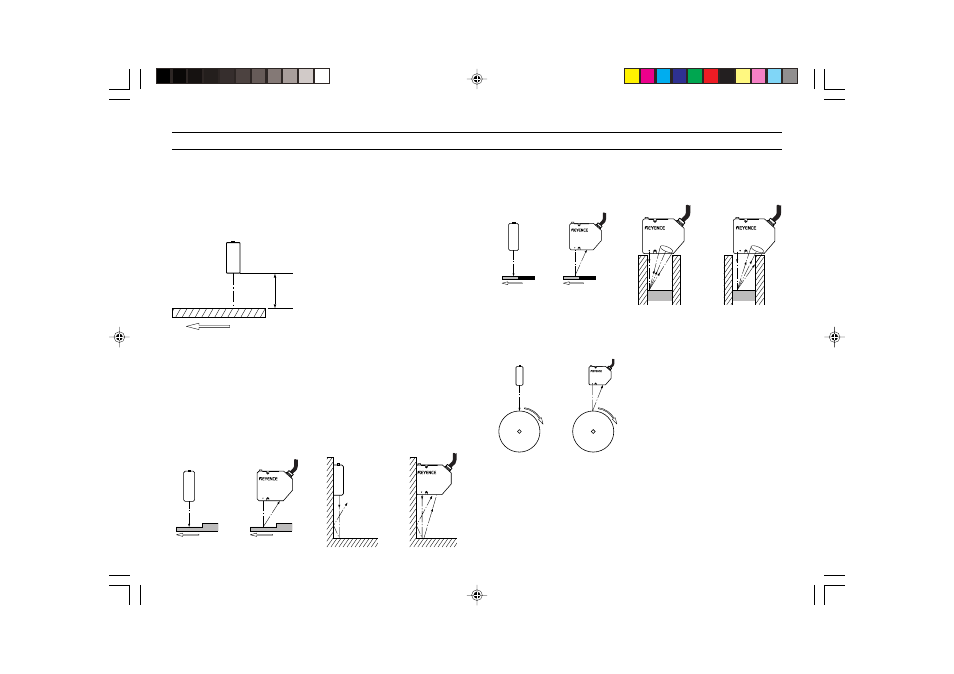

Target shape and recommended setting
The LK series is less affected by the sensor head orientation by
employing the CCD as the light-receiving element. For the following
applications, however, mount the sensor head with the recommended
orientation, if possible.
Height-difference By a wall
SETTING
Border of different Displacement in a hole
color or luster
Moving object
Approx. 30 mm (LK-031/036)
Approx. 80 mm (LK-081/086)
Approx. 350 mm (LK-501/503 in high-precision mode)
Approx. 500 mm (LK-501/503 in long-range mode)
LK-031
(a) (b)
LK-031
(a) (b)
LK-031 LK-031
LK-031
(a) (b)
Correct Incorrect
Correct Incorrect Correct Incorrect
Correct Incorrect
LK-031
Correct Incorrect
