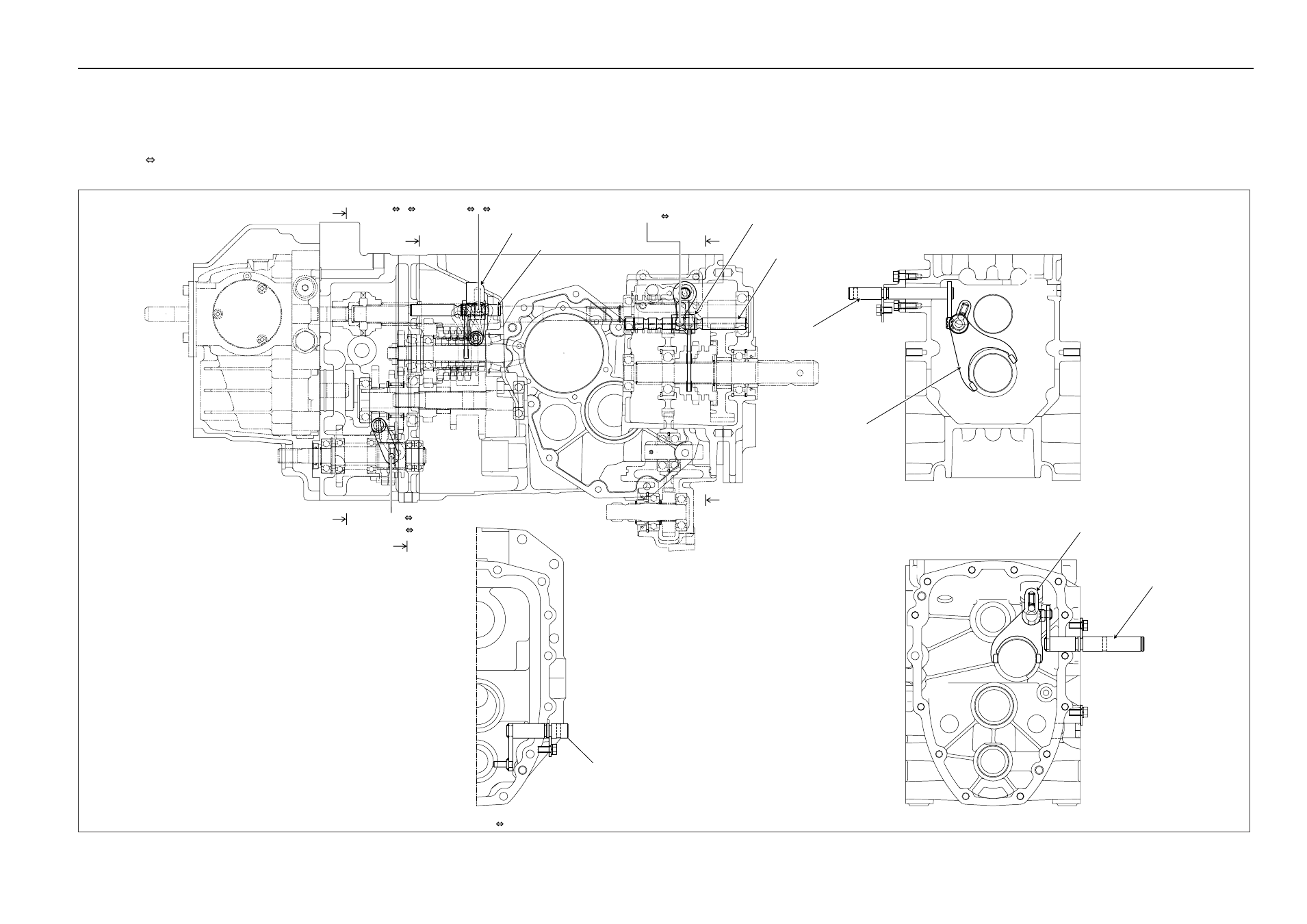

5.2 Transmission Control
5.2.1 7532
• Range shift
• 2WD 4WD change
• PTO ON/OFF
01 01
02
03
04
02
04
03
OFF ON
Rear PTO
Sub gearing
Sub gearing Fork
Sub gearing rail
Rear PTO fork
Rear PTO
PTO rail
PTO shifter
Rear PTO fork
Sub gearing fork
Range shifter
C to C
Range shift
B to B
2WD 4WD
4WD shifter
A to A
OFF ON
Low N Intermediate N High
2WD 4WD change
A
A
B
B C
C
