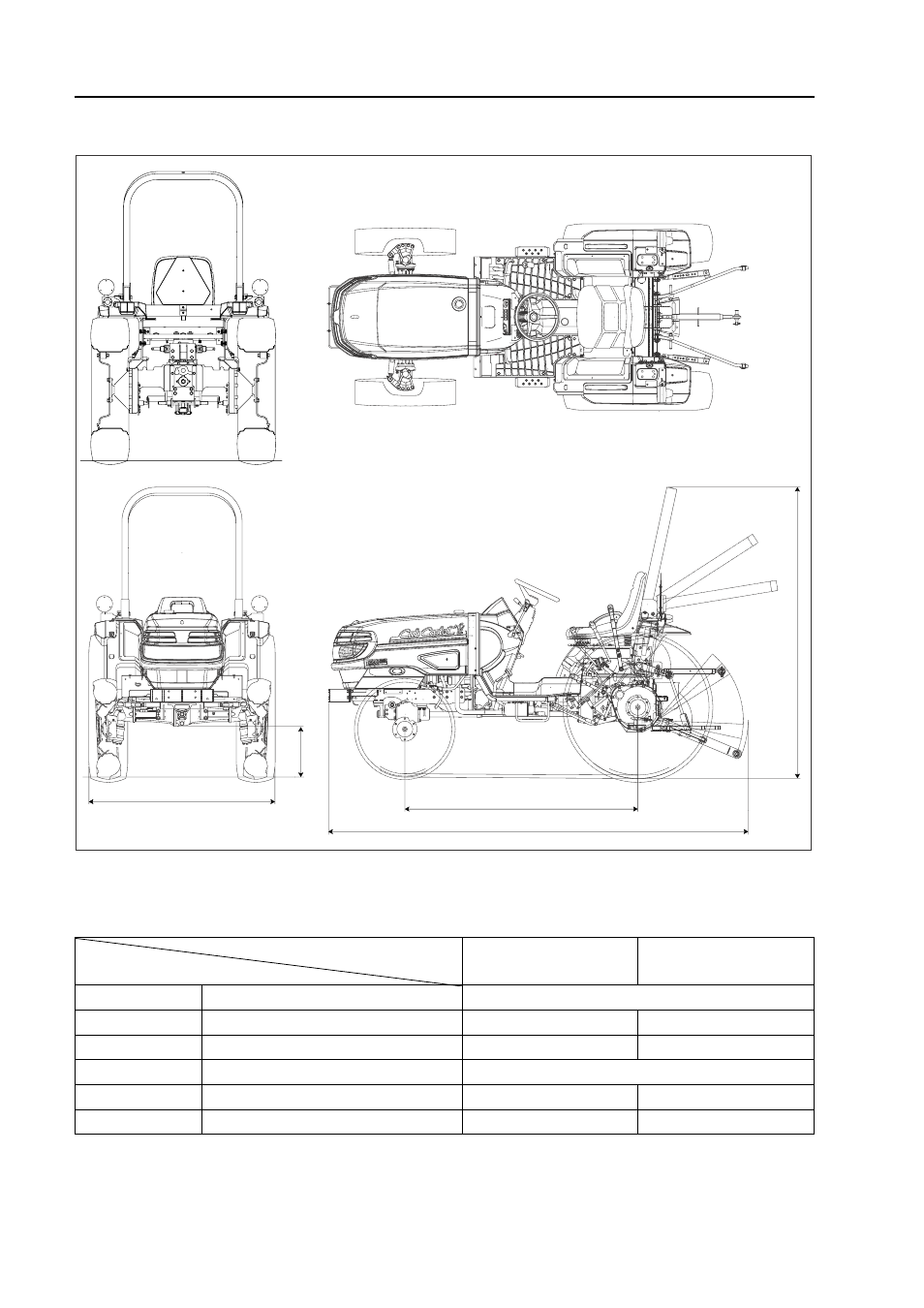

Tetrahedral Sketch Drawing
18
3
Tetrahedral Sketch Drawing
Vehicle Frame Dimension
(Unit : mm {in})
Model
Item
7530
7532
A
Full Length (with 3P)
3070 {120.9}
B
Full Width
1270 {50}
1330 {52.4}
C
Full Height (2 column frame)
2105 {82.9}
2130 {83.9}
D
Wheel Base
1710 {67.3}
E
Road Clearance
337 {13.3}
364 {14.3}
Weight (Machine) kg {lbs}
1050 {2315}
1110 {2447}
1957
27
12
1957 2755
B
A
C
D
E
GZ3W10-001
