7 Front Axle

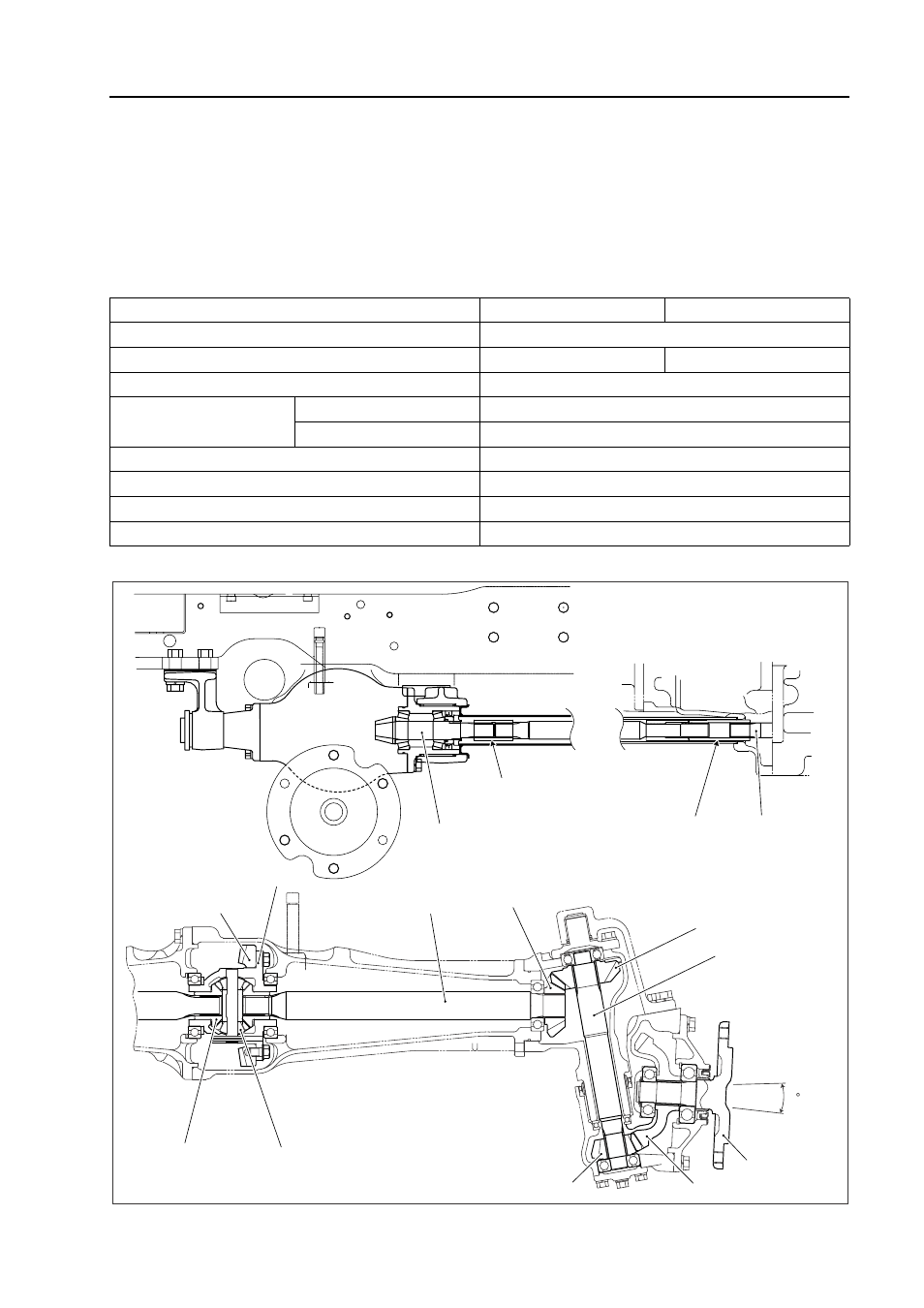

7.1 Structure and Specification of Front Axle
• Center pivot reverse Elliot type is applied to the front axle.
• Bevel type is applied to the front axle with the smaller turning radius at cutting angle interior: 60°, external:
54°, and caster 3°.
(Unit: mm {in})
Model 7530 7532
Tread (front wheel) (mm) 1070 {42.13}
Ground clearance (mm) 337 {13.3} 364 {14.3}
Swing angle 5 °
Steering Angle
Interior angle 60 ° 0
-2 °
External angle 54 ° 0
-2 °
Kingpin angle 10 °
Camber 2.5 °
Caster 3 °
Toe in 0 - 10
Pinion shaft 6T
Front joint
Rear joint 4WD shaft
Side gear
Pinion gear
Ring gear 35T
Deferential case
Deferential shaft
Shaft gear 14T
Gear 18T
Shaft
Gear 32T Gear 12T
Wheel shaft
