Removal and Disassembly of MID PTO
Follow the following procedure for removal and disassembly of MID PTO.
1
Removal of MID PTO
1. Remove the cover and MID PTO assembly with
removing the mounting bolts.(4 bolts)
2 Disassembly of MID PTO
1. Disassemble the MID PTO.
1) Remove the snap ring from MID PTO shaft.
2) Remove the holder.
3) Remove the oil seal.
4) Remove the snap ring from MID PTO case.
5) Remove the MID PTO shaft and bearing
together.

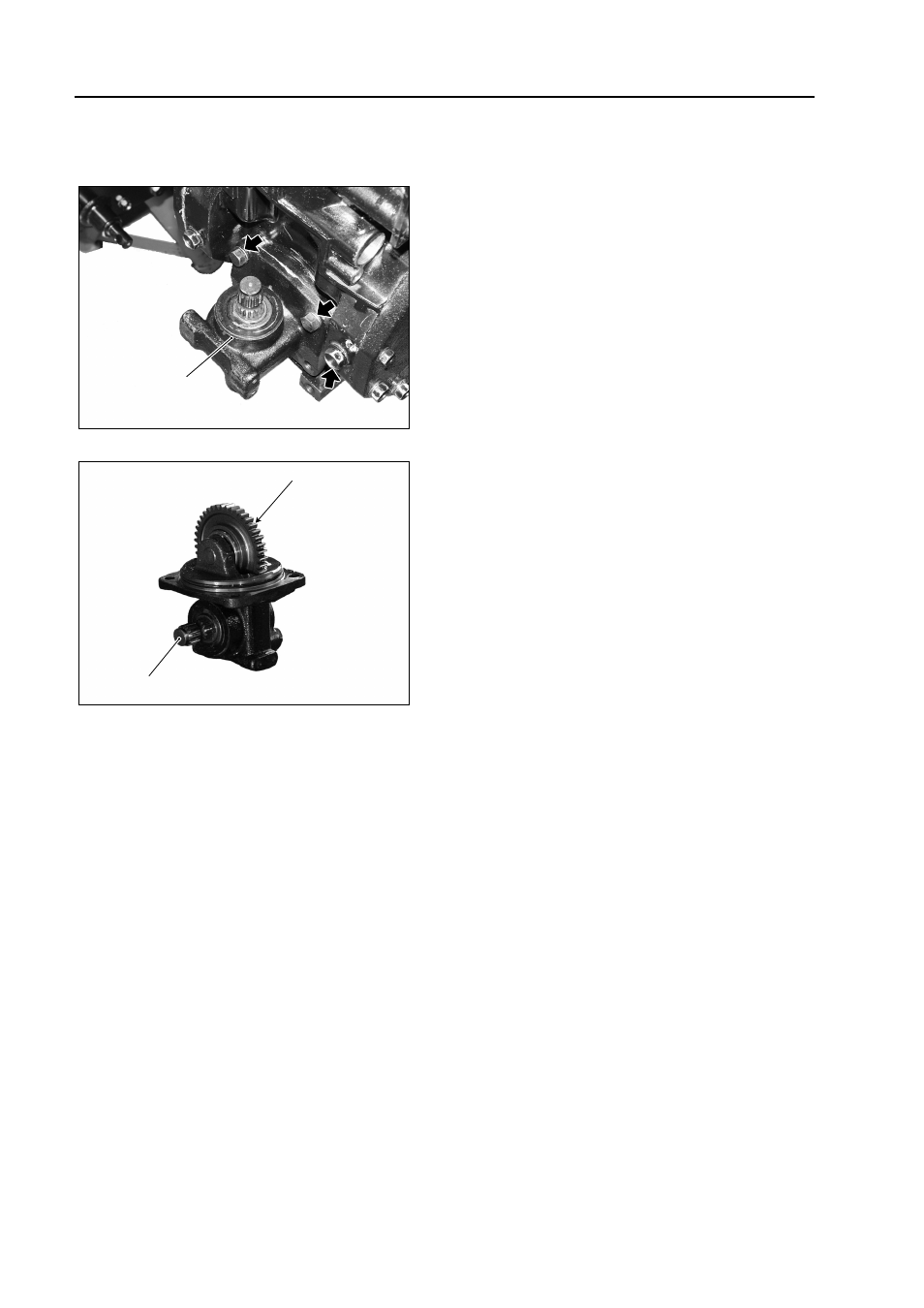

MID PTO assembly
GZ3W24-038
MID PTO shaft
Gear 41T
GZ3W24-039
