Cub Cadet 7532 User Manual
Page 129
Rear Axle and Brake
6
88
6.5

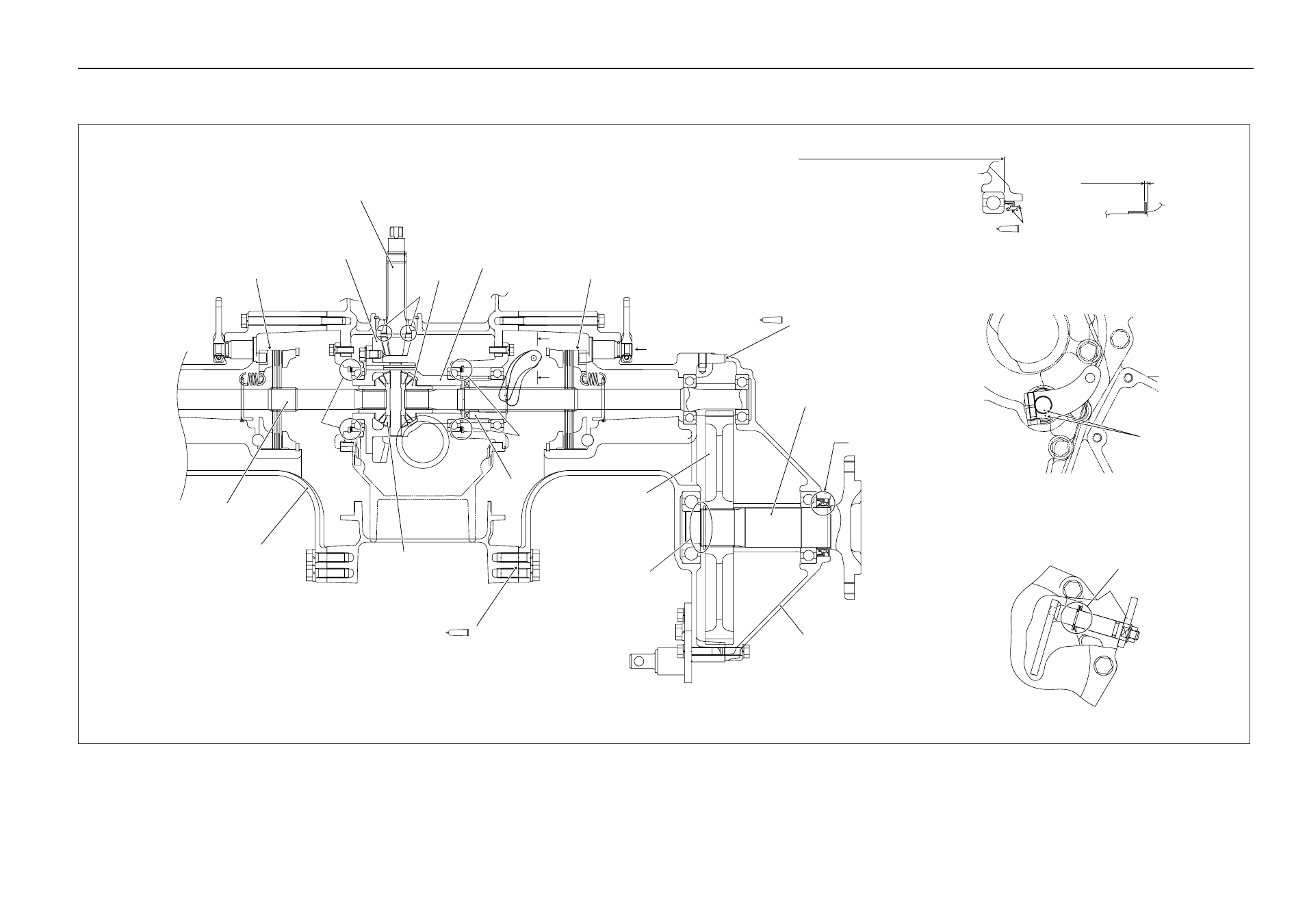

Assembly and Installation of Rear Axle and Brake
Follow the procedure for removal and disassembly of rear axle in the reverse order for assembly and installation.
Ring gear 35T
Side gear
Differential case
Brake RH
Pinion shaft 6T
Brake LH
"B"
"C"
"E"
Z
Y
X
Z
"A"
Differential shaft
Differential pinion
Sleeve
Final gear
Axle cover
Rear axle
Rear axle case
Match mark
"D"
Z to Z
Y
X
Packing
Packing
Shaft side
1mm {0.039in}
Grease
GZ3W25-013
Case side
Press fit to flush oil seal end and bearing side face.
