8 Troubleshooting
89 SpeedExtractor E-916/E-914 Operation Manual, Version D
Test 4: Heater in the back position, beaker underneath. If no
pressure is built up, the blockage is located between lower seal
holder and outlet valve. The following parts can be blocked:
lower seal holder, cooling unit, capillary, outlet valve. These
parts must be exchanged or cleaned by a service technician.
A leak test must be carried out to ensure the tightness of the
SpeedExtractor.
If pressure builds up, the top cover plate or the parts up to the
solvent valve are blocked. Release the pressure manually. The
top cover plate can be exchanged or cleaned by the operator. If
parts before the top cover plate are blocked the service techni-
cian has to exchange or clean these parts.
Go back to the SERVICE FUNCTIONS with the left arrow.
Not ok
ok
ok
ok
ok
Not ok
Not ok
Not ok

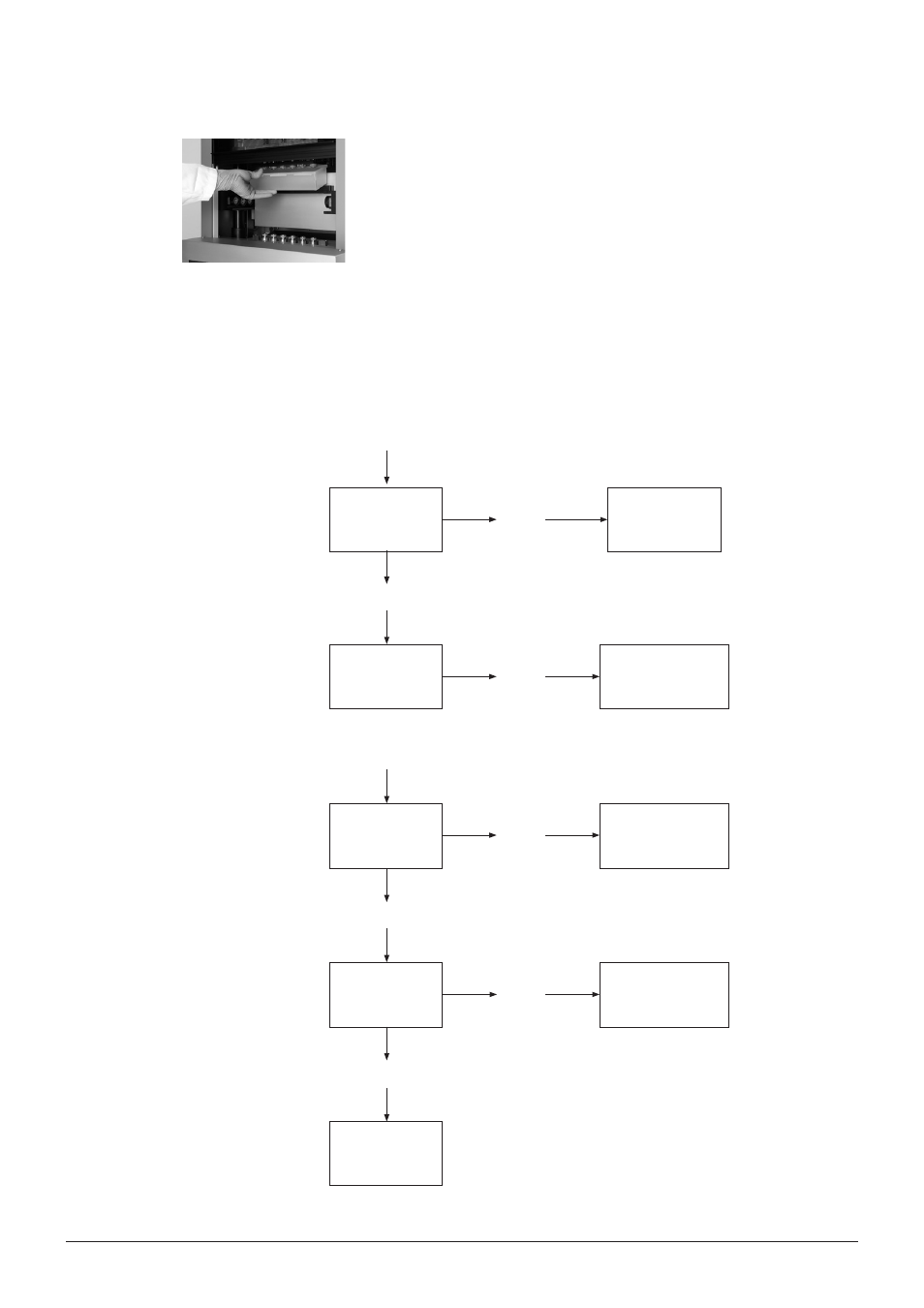

Flow test Clogging caused by:
Test 1
Test 2
Test 3
Test 4
Flow test into Vials with
septa
Cell
Between vial and exhaust:
needles, tube to exhaust,
exhaust tube outside
Between outlet valve and
vial: outlet valve, capillaries,
needle
Between lower seal holder
and outlet valve: lower seal
holder, cooling unit, capillary,
outlet valve
Flow test into Vials
without septa
Flow test into Waste
Flow test: Heater in back
position, beaker under-
neath
Top cover plate or before
