5 Putting into operation
44 B-90 Operation Manual, Version B
j Feed tubing
k Spray cap
NOTE
• Only use original BUCHI parts for installation.
• Small parts (e–j) are available in the set „Set of feed tubing connections complete“ with
order no. 051768.

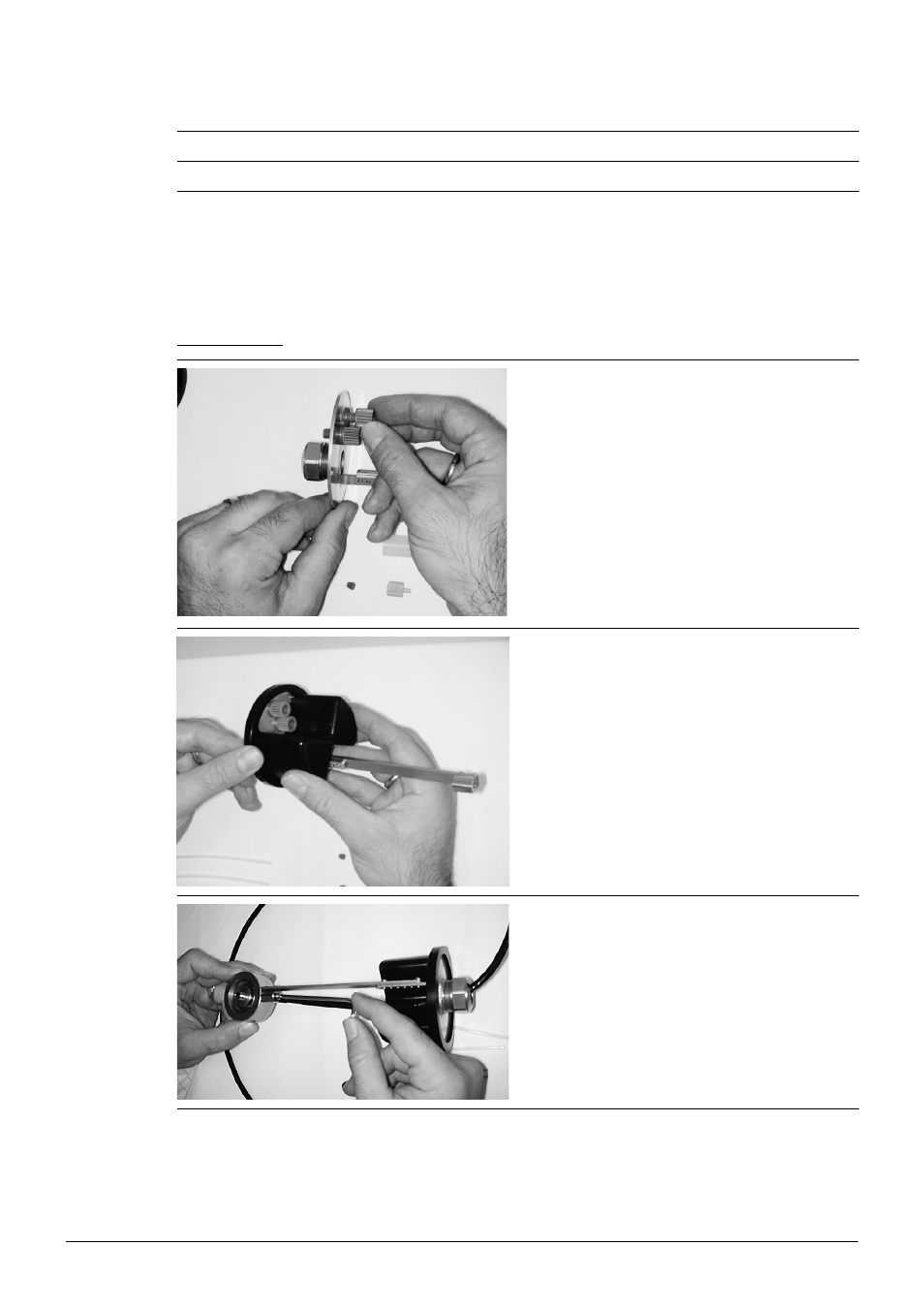

Assembly steps
1. Put the “Silicone seal” g onto the two
“Fittings” f and screw them into the head
holder hand-tight.
2. Introduce the “Rubber sealing” c onto the
head holder.
3. Mount the spray head at the “Head holder”
d. See also section 5.3.2 for details.
4. Insert the electrical cable through the cable
hole of the “Head holder”.
