5 Putting into operation
39 B-90 Operation Manual, Version B
ቦ

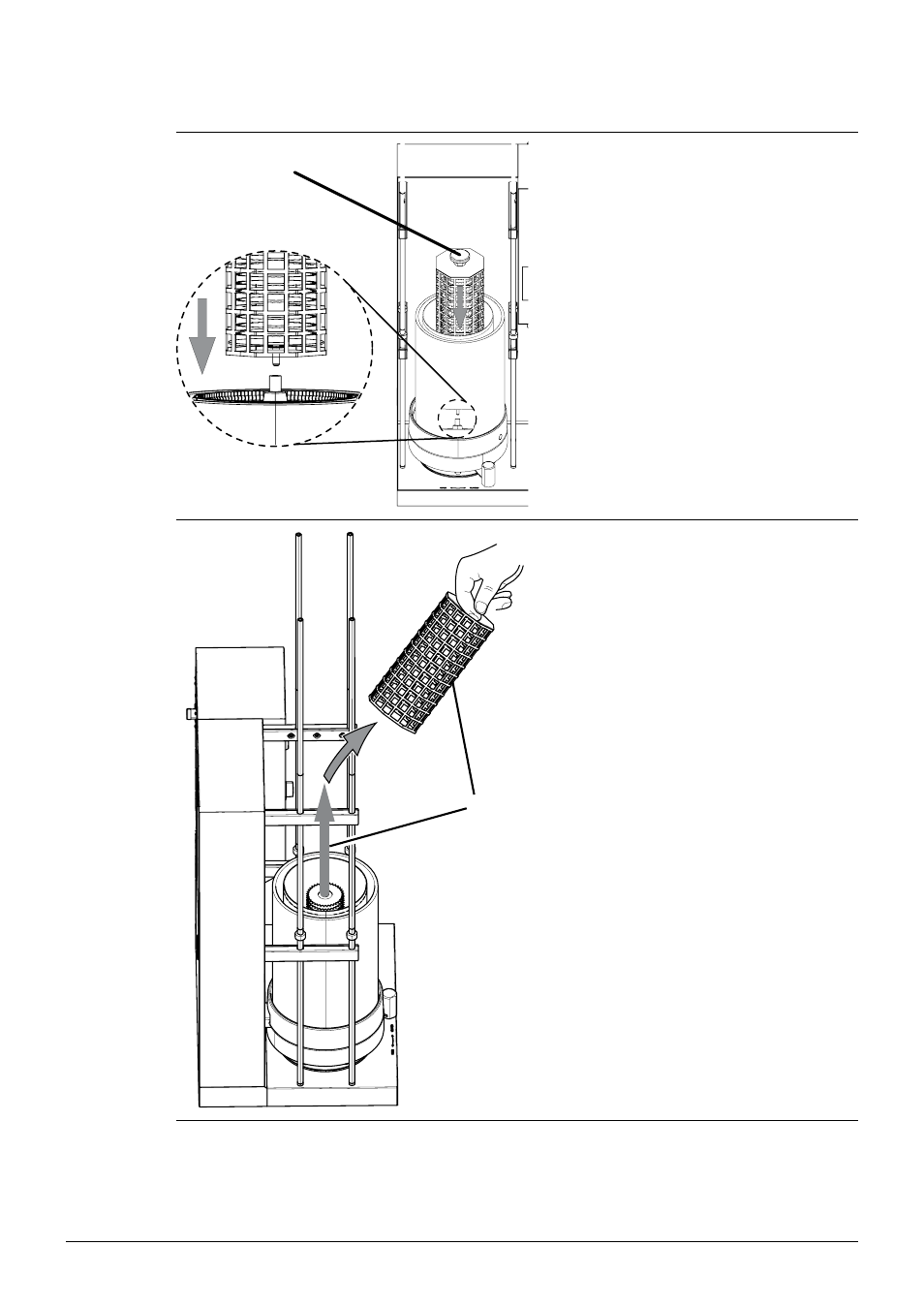

e Use the protective grid holder to carefully
insert the HV-electrode into its seat at the
bottom plate of the particle collector. Clean
and dry this part before installation.
ቧ
f To unlock the protective grid, open the
spring lock at the handling knob first.
Carefully lift off the grid from the HV-
electrode in a vertical upwards movement.
Finally, connect the electrical cable of the
particle collector to the high voltage socket
at the frontside of the instrument (see section
4.10, socket a) and fix it hand-tight.
