7

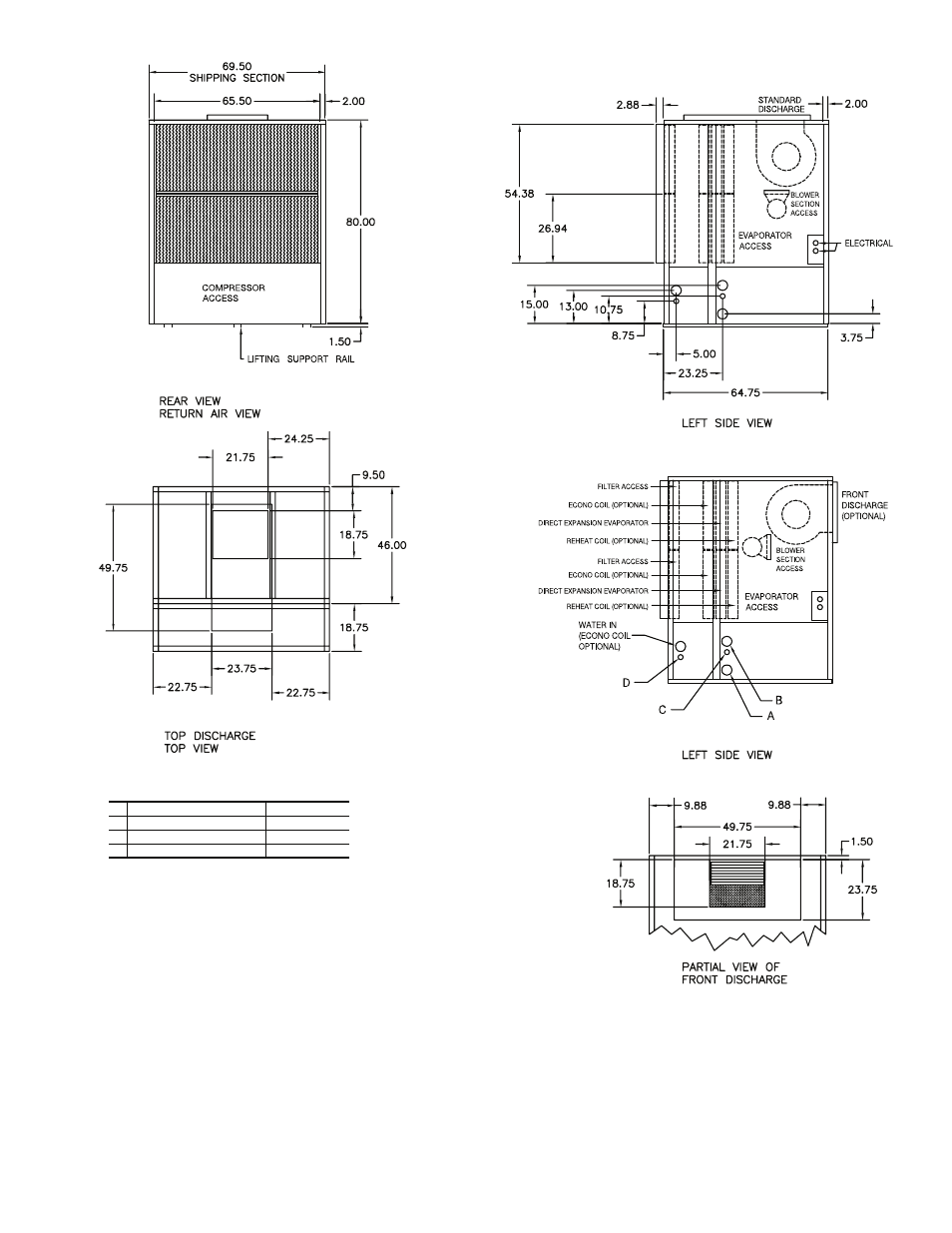

Fig. 5 — 50BVT,V,W034 (Low-Boy) Dimensions
a50-8202
NOTES:
1. Dimensions in inches.
2. All units are rear return airflow configuration.
3. Recommended minimum service clearances are as follows:
a. Front and rear — 30 in. (762 mm)
b. Left or right side — 65 in. (1651 mm) for coil removal
c. Side opposite coil removal — 20 in. (508 mm)
CONNECTIONS
REPLACEMENT FILTERS : EIGHT (8) AT 17 x 27 x 4 INCHES.
A WATER OUT 2-1/2 in. FPT
B WATER IN 2-1/2 in. FPT
C CONDENSATE DRAIN 1-1/4 in. FPT
D ECONOMIZER DRAIN 1-1/4 in. FPT
a50-8202.eps
