Shipping Weights (lb)
*High-boy/low-boy.
50BVT,U,V,W,X UNIT
HIGH-BOY UNIT LOW-BOY UNIT
034 044 054 064 034 044 054 064
MAIN AIR CONDITIONING SECTION (EACH)
NUMBER OF SECTIONS
1 2 2 2 1 2 2 2
SECTION WEIGHT 1450 1175 1550 1575 2100 1825 2200 2225
REHEAT COIL OPTION 40 40 40 40 40 40 40 40
FILTER/ECONOMIZER SECTION (EACH)
NUMBER OF SECTIONS
1 2 2 2 1 2 2 2
FILTER SECTION 310 310 310 310 310 310 310 310
ECONOMIZER OPTION 200 200 200 200 200 200 200 200
FAN SECTION (EACH)
NUMBER OF SECTIONS
1 2 2 2 INCLUDED IN
AIR CONDITIONING SECTION FAN SECTION 650 650 650 650
TOTAL UNIT
NUMBER OF SECTIONS
3 6 6 6 2 4 4 4
UNIT WITH OPTIONS 2650 4750 5500 5550 2650 4750 5500 5550
Size 034 Units
Size 044-064 Units

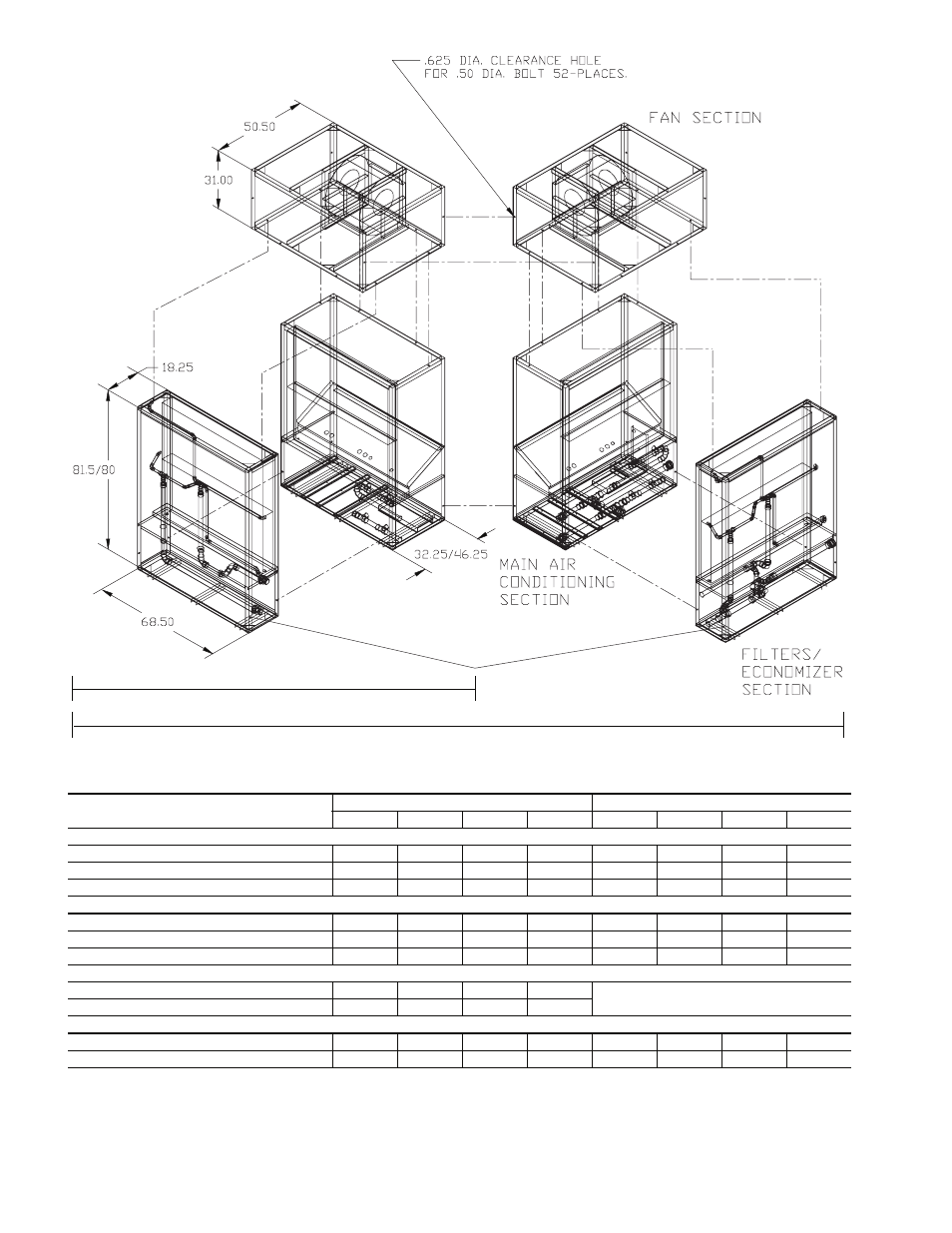

Fig. 14 — Modular Shipping Weights — 50BVT,U,V,W,X
