REAR VIEW
RETURN AIR VIEW
LEFT SIDE VIEW
80.00
FRONT VIEW
54.38
8.75
13.00
31.00
BLOWER
SECTION
ACCESS
EVAPORATOR
ACCESS
2.88 2.00
EVAPORATOR
ACCESS
BLOWER
SECTION
ACCESS
LEFT SIDE VIEW
FILTER ACCESS
ECONO COIL (Optional)
DIRECT EXPANSION
EVAPORATOR
REHEAT COIL (Optional)
STANDARD
DISCHARGE
REAR DISCHARGE
(Optional)
WATER IN
(ECONO COIL
OPTIONAL)
ELECTRICAL
81.50
BLOWER
SECTION
ACCESS
COMPRESSOR
ACCESS
COMPRESSOR
ACCESS
EVAPORATOR
ACCESS
EVAPORATOR
ACCESS
ELECTRICAL BOX
ACCESS
ELECTRICAL BOX
23.75
18.75
49.75
21.75
9.88
111.00
3.19
5.50
65.50
54.75
2.00
23.25
5.00
51.63
1.50 1.50
LIFTING SUPPORT RAIL
69.50
SHIPPING SECTION
10.75
E
F
A
B
C
D
NOTES:
1. Dimensions in inches.
2. All units are rear return airflow configuration.
3. Constant volume units are available with front or rear air supply
.
4. VAV units (50BVX) are available with rear supply only.
5. Recommended condenser match is ONE (1) 09DK034 (50/50 split).
6. Use proper piping practice for remote refrigerant connections. Refer to
Carrier System Design Manual Part 3.
7. Recommended minimum service clearances are as follows:
a. Front and rear — 30 in. (762 mm)
b. Left or right side — 65 in. (1651 mm) for coil removal
c. Side opposite coil removal — 20 in. (508 mm)
CONNECTIONS
REPLACEMENT FILTERS : EIGHT (8) AT 17 x 27 x 4 INCHES.
A LIQUID LINE CIRCUIT 1 7/8 in. OD
B LIQUID LINE CIRCUIT 2 7/8 in. OD
C DISCHARGE LINE CIRCUIT 1 1-1/8 in. OD
D DISCHARGE LINE CIRCUIT 2 1-1/8 in. OD
E CONDENSATE DRAIN 1-1/4 in. FPT
F ECONOMIZER DRAIN 1-1/4 in. FPT
a50-8205

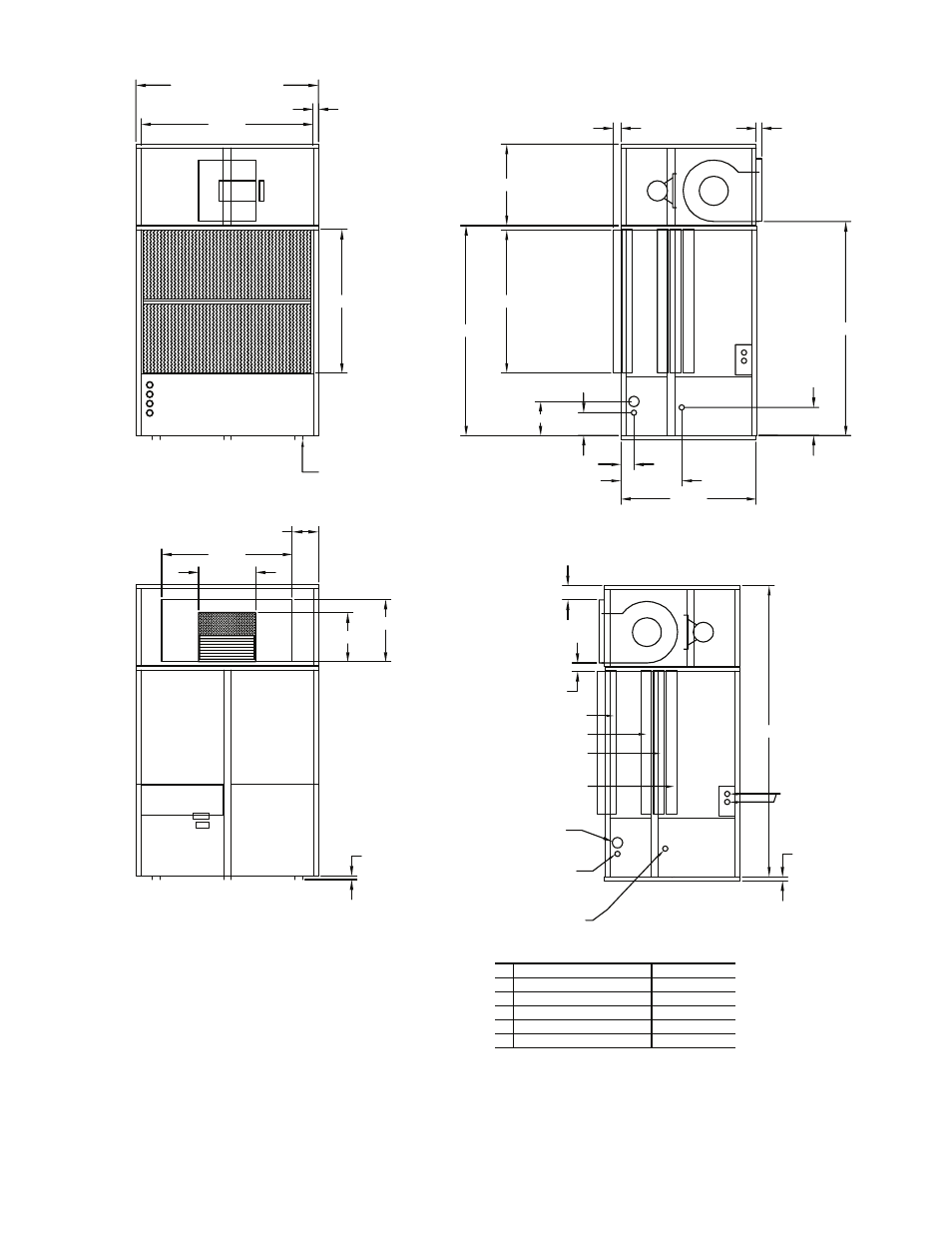

Fig. 8 — 50BVU,X034 (High-Boy) Dimensions
