Carrier OMNIZONE 50BV020-064 User Manual
Page 4
4
STANDARD
BLOWER
ORIENTATION
OPTIONAL
BLOWER
ORIENTATION
STANDARD
BLOWER
ORIENTATION
OPTIONAL
BLOWER
ORIENTATION

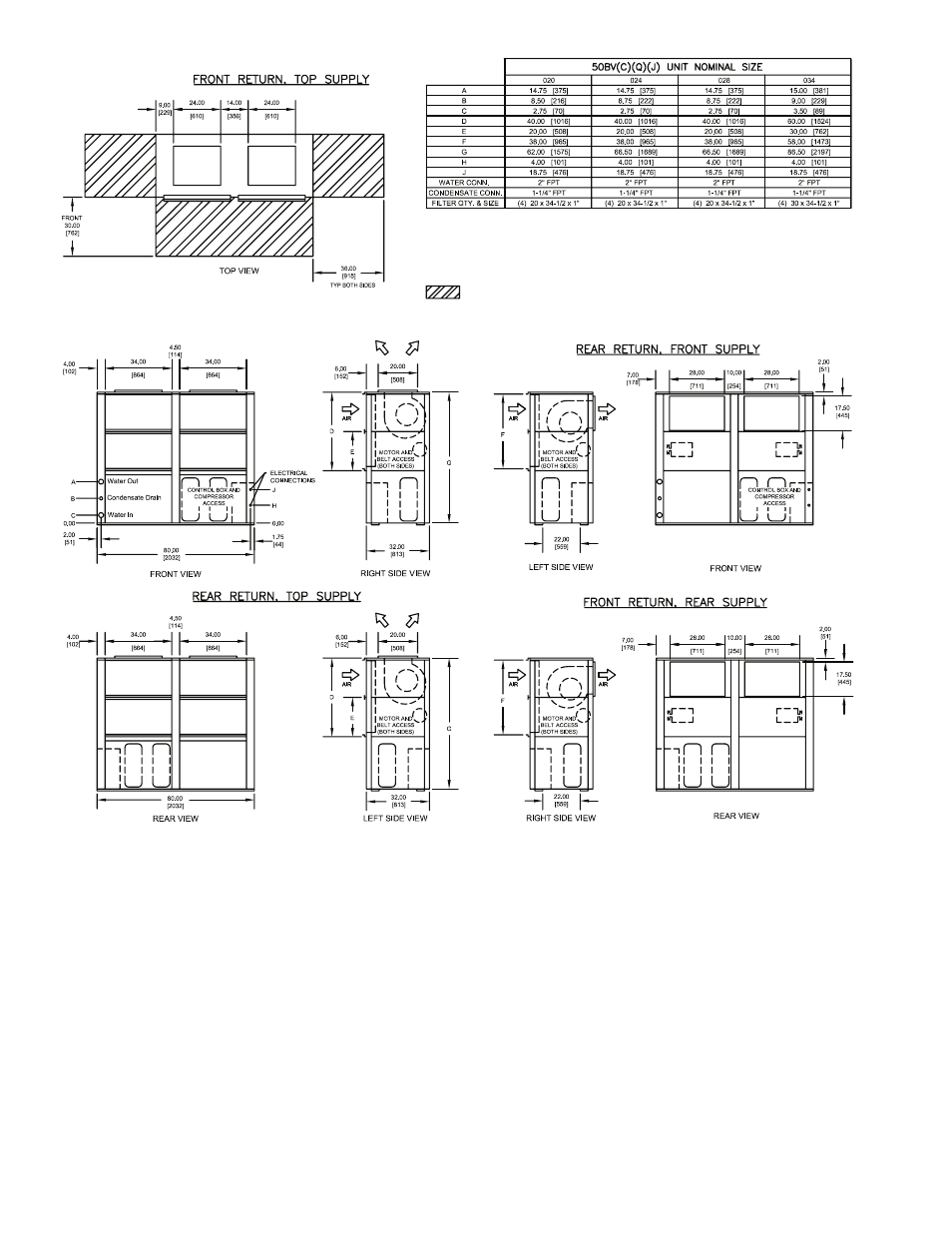

Fig. 2 — 50BVC,J,Q020-034 Dimensions
NOTES:
1. Dimensions in inches [mm].
2. VAV models (50BVJ) are rear return, top supply only.
3. Compressor, controls, and condenser access are through front panels.
4. Field power connections are 1-3/4
inches. Control connections are 7/8 inches.
5. Optional blower orientation is selected in model number nomenclature as option 9 in FIOP section
(digits 15 and 16).
Shows recommended minimum service clearances.
a50-8199
