16.2 Inputs
In this submenu, the type of the sensor connected can
be adjusted for each individual input. The following ty-
pes can be selected:
• Switch
• KTY
• Pt500
• RTA11M
• Pt1000
• None

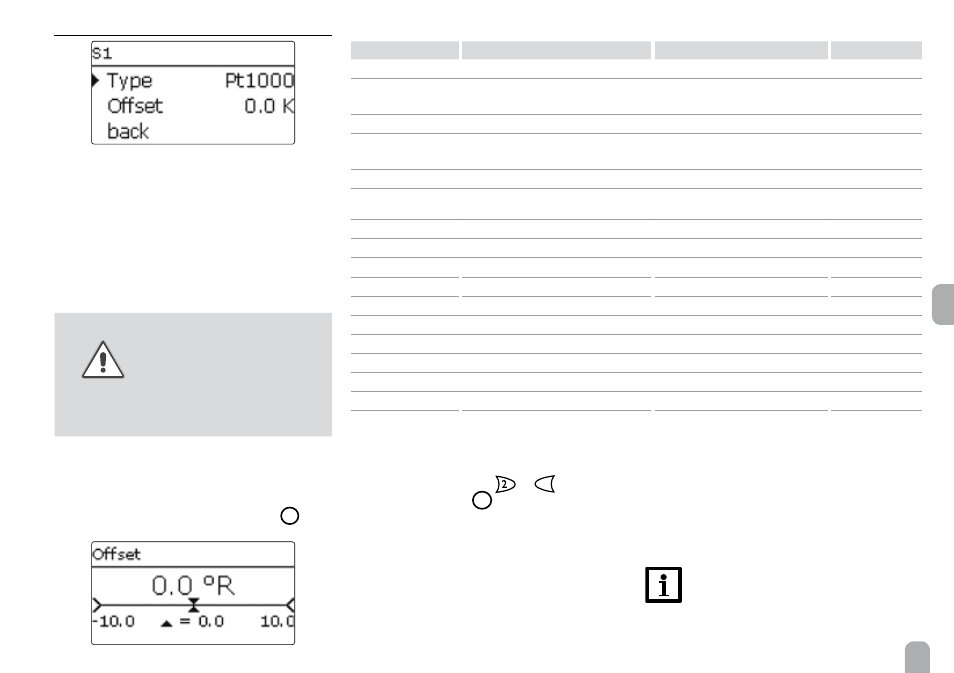

If KTY, Pt500 or Pt1000 are selected, the channel
Offset appears, in which an individual offset can be
adjusted for each sensor.
Î
In order to adjust the offset, select the corres-
ponding menu item by pressing button
5
In- / Outputs / Inputs
Adjustment channel Description
Adjustment range / selection
Factory setting
S1 ... S12
Sensor input selection
-
-
Type
Sensor type selection
Switch, KTY, Pt500, RTA11M,
Pt1000, None
Pt1000
Offset
Sensor offset
-5.0 ... +5.0 K [-10.0 ... +10.0 °Ra]
0.0 K [0.0 °Ra]
Imp. 1 ... 3
Sensor type selection Imp 1 ... 3
Impulse, Switch, KTY, Pt500,
RTA11M, Pt1000, None
Impulse
Vol./Imp.
Impulse input selection
-
-
Type
Sensor type selection
Impulse, Switch, KTY, Pt500,
RTA11M, Pt1000, None
Impulse
CS10
CS10 input
-
-
Type
CS type
A ... K
E
Offset
Delete offset
Yes, No
No
Ga1, 2
Analog Grundfos Direct Sensor
TM
-
-
Type
Grundfos Direct Sensor
TM
type
RPS, VFS, None
None
Gd 1,2
Digital Direct Sensor
TM
type
-
-
Type
Grundfos Direct Sensor
TM
type
RPD, VFD, None
None
Min.
Minimum pressure (if Type = RPS)
0.0 ... 0.5 bar
0.0 bar
Max.
Maximum pressure (if Type = RPS)
0.1 ... 16.0 bar
0.6 bar
Min.
Minimum flow rate (if Type = VFS)
1 ... 39 l/min
2 l/min
Max.
Maximum flow rate (if Type = VFS)
2 ... 400 l/min
40 l/min
Î
To adjust the sensor offset, select the desired va-
lue by pressing buttons
or
4
, then confirm
by pressing button
5
CS sensor offset
If a CS10 irradiation sensor is to be connected, an
offset has to be carried out before the connection
is made.
To carry out the offset, proceed as follows:
Î
Adjust the CS type in the Type channel
Î
Select the Offset channel
Note:
If Grundfos Direct Sensors TM are used,
connect the sensor grounding common ter-
minal block with the protective grounding
conductor (see chap. 2.2).
Î
Confirm the reset enquiry with Yes
Î
Select back to return to the Inputs menu,
then connect the CS sensor
ATTENTION! System damage!
Selecting the wrong sensor type
will lead to unwanted controller
actions. In the worst case, system
damage can occur!
Î
Make sure that the right
sensor type is selected
for each input!
