The Parallel relay function can be used to opera-
te an allocated parallel relay alongside a selected re-
ference relay. With this function, e. g. a valve can be
controlled in parallel to the pump via a separate relay.
If the Overrun option is activated, the parallel relay
remains switched on for the adjusted duration time
after the reference relay has been switched off.
If the Delay option is activated, the parallel relay will
be energized after the adjusted duration has expired.
If the reference relay is switched off again during the
delay time, the parallel relay will not be switched on
at all.
If the Inverted option is activated, the parallel relay
switches on when the reference relay switches off and
vice versa.

Adjustment channel Description

Adjustment range / selection Factory setting

Relay

Relay selection

system dependent

Ref. relay

Reference relay selection

system dependent

Overrun

Overrun option

Yes, No

Duration

Overrun time

1 ... 30 min

1 min

Delay

Delay option

Yes, No

Duration

Delay time

1 ... 30 min

1 min

Inverted

Inverted switching option

Yes, No

Funct.

Activation / Deactivation

Activ., Deactivated

Deactivated

Arrangement / Opt. functions / Add new function... / Parallel relay

The mixer function can be used to adjust the actual
flow temperature to the desired mixer target tem-
perature TMixer. The mixer is opened or closed in
pulses depending on this deviation. The pulses are
determined by the adjustable Interval. The pause is
determined by the difference between the actual va-
lue and the set value.
The mixer runtime can either be adjusted in the
channel Runtime or automatically adapted with the
Offset function. When Offset is selected, the mixer
will close first. When button

is pressed, the mixer

opens and the seconds are counted in the display. As
soon as the mixer has reached its open position, press
button

again. The time measured will automati-

cally appear as the value for the channel Runtime.
Once per day, the mixer will automatically adjust itself.
The exact Time for that can be adjusted.

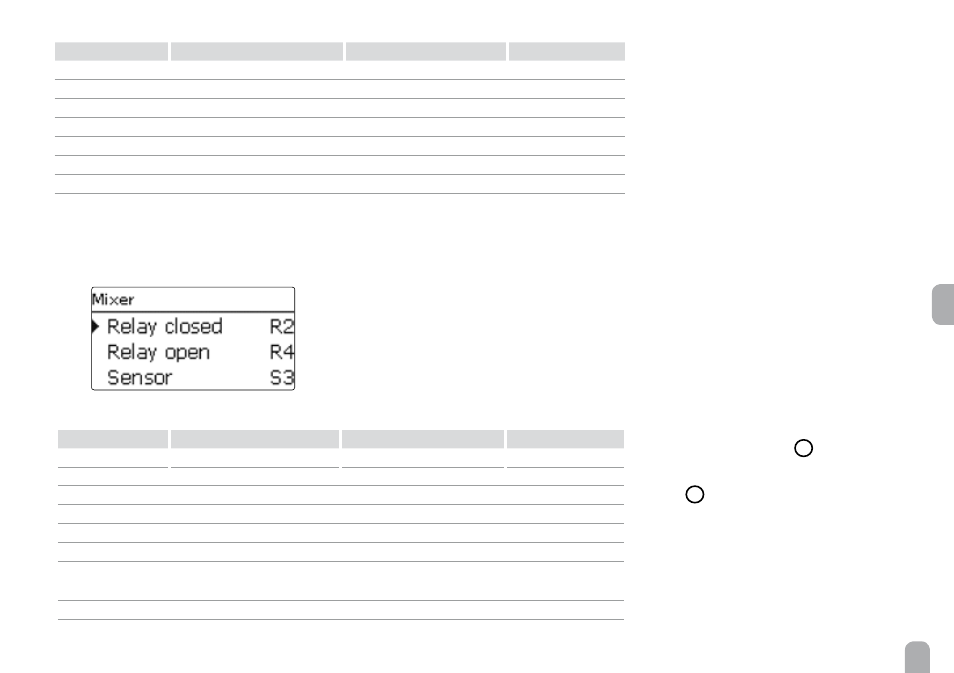

Mixer

Adjustment channel Description

Adjustment range / selection

Factory setting

Relay closed

Relay selection mixer closed

system dependent

Relay open

Relay selection mixer open

system dependent

Sensor

Sensor selection

system dependent

TMixer

Mixer target temperature

0 ... 130 °C [32 ... 266 °F]

60 °C [140 °F]

Interval

Mixer interval

1 ... 20 s

4 s

Runtime

Mixer runtime

10 ... 600 s

240 s

Offset

Automatic adaption of the
mixer runtime

Time

Adjustment time

00:00 ... 23:30

23:30

Funct.

Activation / Deactivation

Activ., Deactivated

Deactivated

Arrangement / Opt. functions / Add new function... / Mixer
