Adjustment channel Description

Adjustment range / selection

Factory setting

Relay

Relay selection

system dependent

Sensor top

Top sensor selection

system dependent

Sensor base

Base sensor selection

system dependent

TBoiler on

Boiler switch-on temperature 0 ... 94 °C [32 ... 202 °F]

45 °C [114 °F]

TBoiler off

Boiler switch-off temperature 1 ... 95 °C [34 ... 204 °F]

60 °C [140 °F]

Timer

Timer option

Yes, No

Timer

Days of the week

Day selection

All days, Monday ... Sunday, Continue -

Timer

Time frame adjustment

00:00 ... 23:45

Funct.

Activation / Deactivation

Activ., Deactivated

Deactivated

Arrangement / Opt. functions / Add new function... / Boiler loading

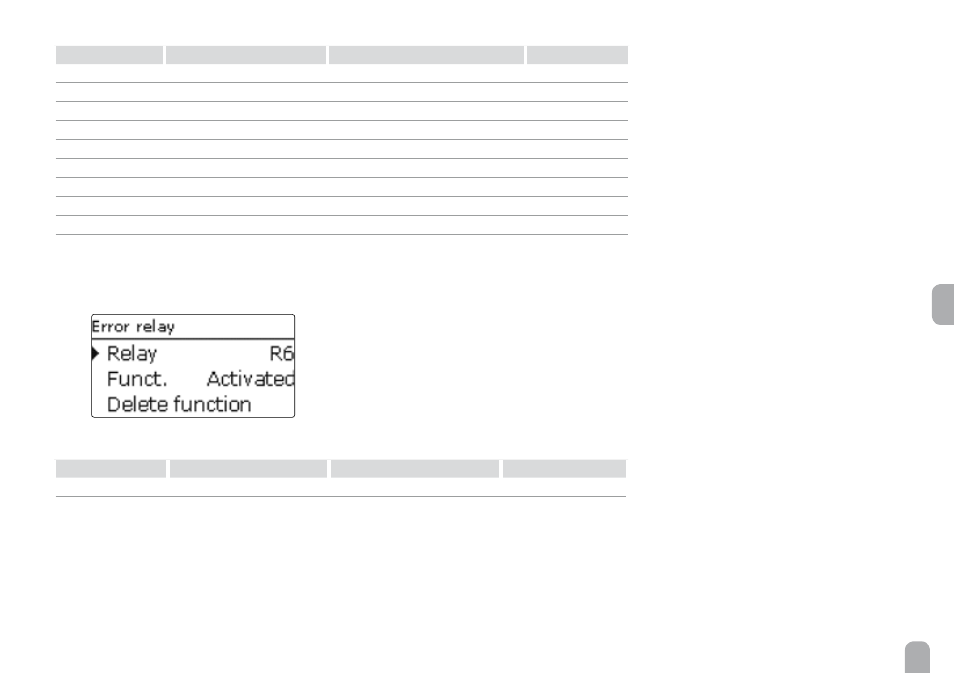

Error relay

The error relay function can be used to operate a re-
lay in the case of an error. Thus, e. g. a signaling device
can be connected to signal errors.
If the error relay function is activated, the allocated
relay will be energized when a sensor fault occurs. If
the flow rate monitoring function is activated, the er-
ror relay will additionally energized in the case of a
flow rate error.

Adjustment channel Description

Adjustment range / selection

Factory setting

Relay

Relay selection

system dependent

Funct.

Activation / Deactivation

Activ., Deactivated

Deactivated

Arrangement / Opt. functions / Add new function... / Error relay
