Panasonic KX-PNB2 User Manual
Page 8
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
2,
Remove the plate.
■ Plate

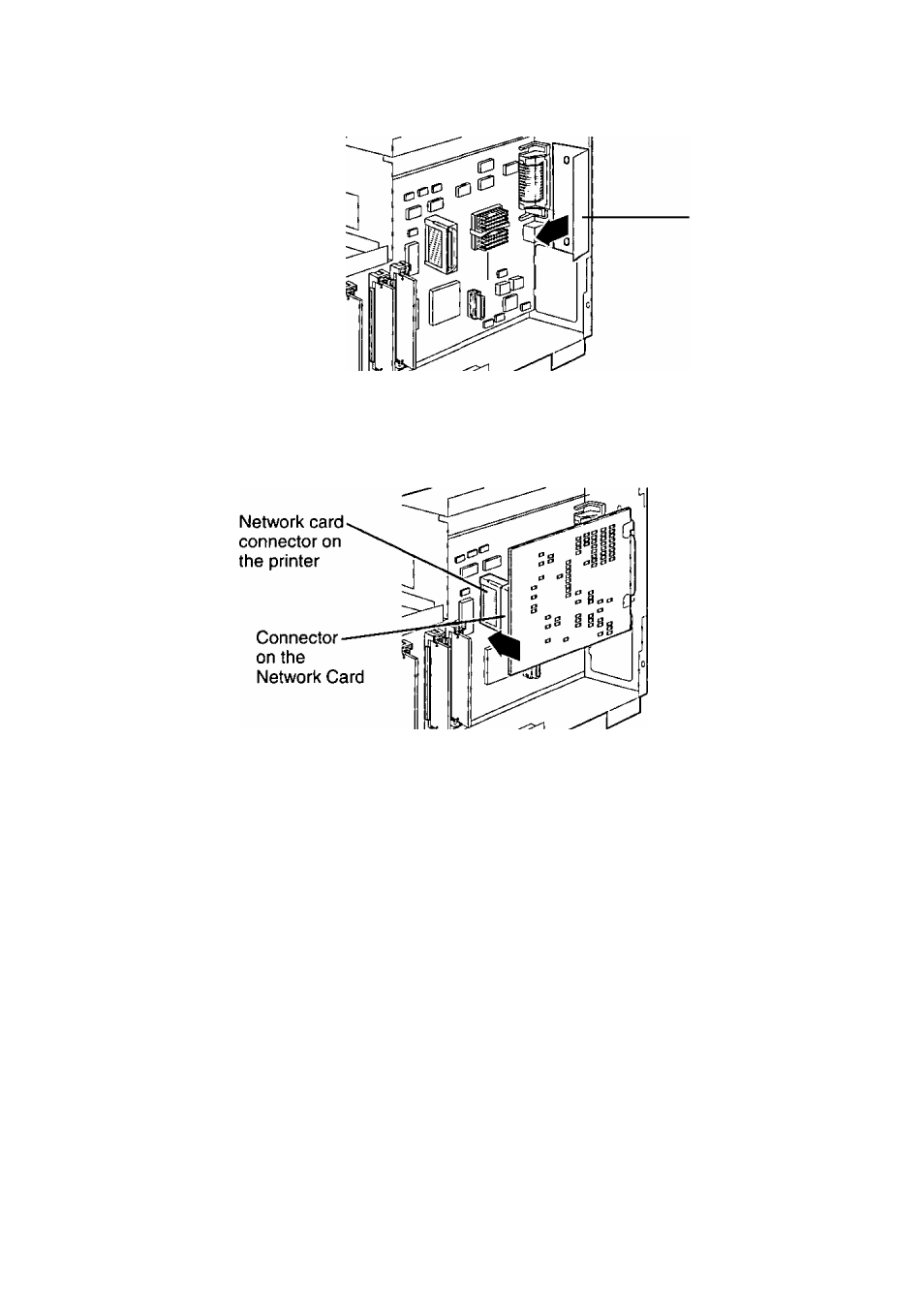

Insert the connector on the Network Card into the network card
connector on the printer control board until it is completely in place.
The two connectors should fit snugly together.
4
Gently tighten the two screws to secure the Network Card to the
printer control board.
/"■
\
\ Screw /
----------^
8
