Panasonic KX-PNB2 User Manual
Page 6
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

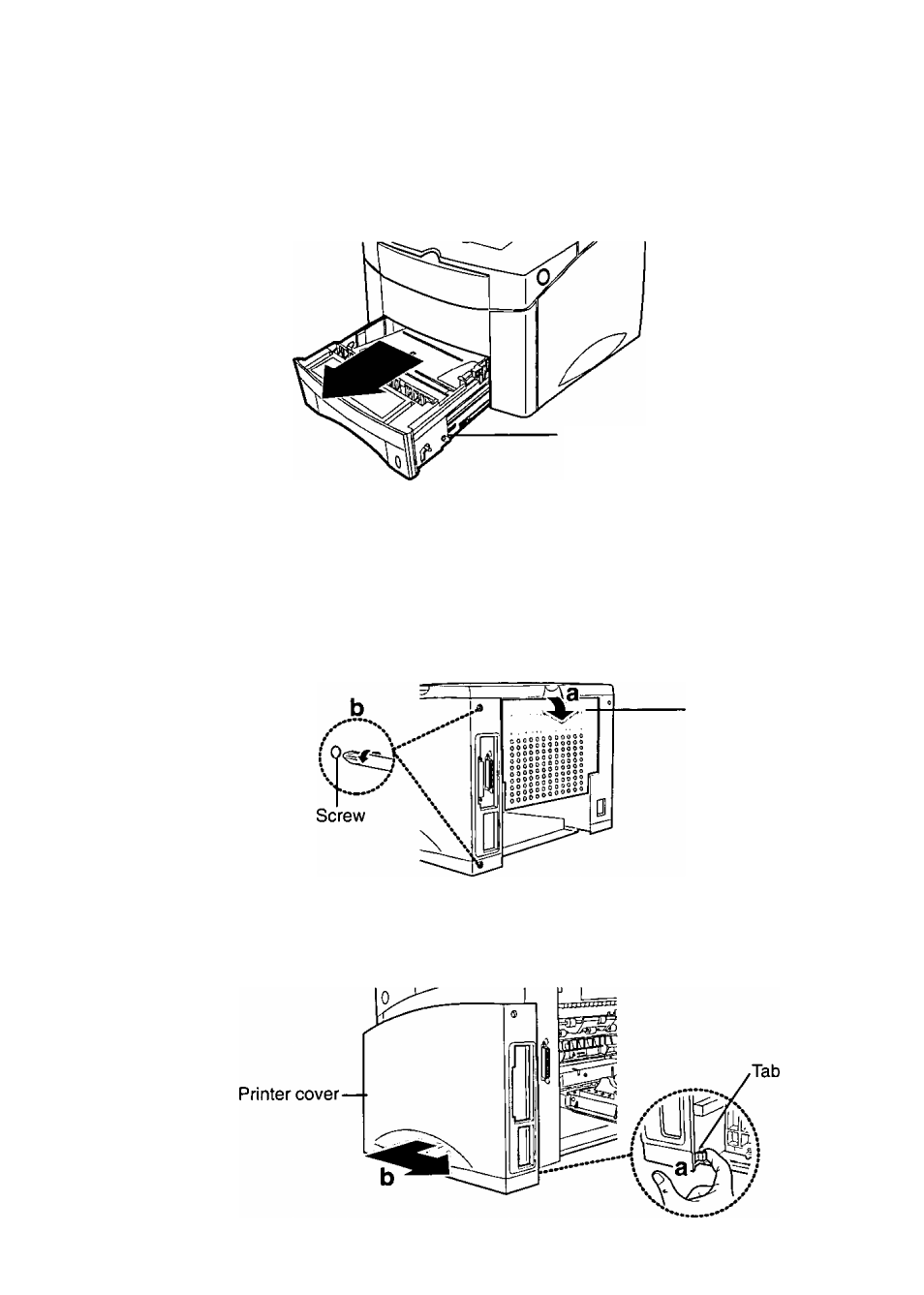

To remove the printer cover
See the “IMPORTANT’ on page 5.
1
Turn the printer OFF and pull out the 1st cassette.
1 St cassette
2
Unplug the power cord and disconnect any cables connected to the
connectors on the back of the printer.
3
a)
open the rear cover.
b)
Remove the two screws from the back of the printer.
Rear cover
a)
Pull tab to release the printer cover.
b)
Slide printer cover towards back of the printer.
