8

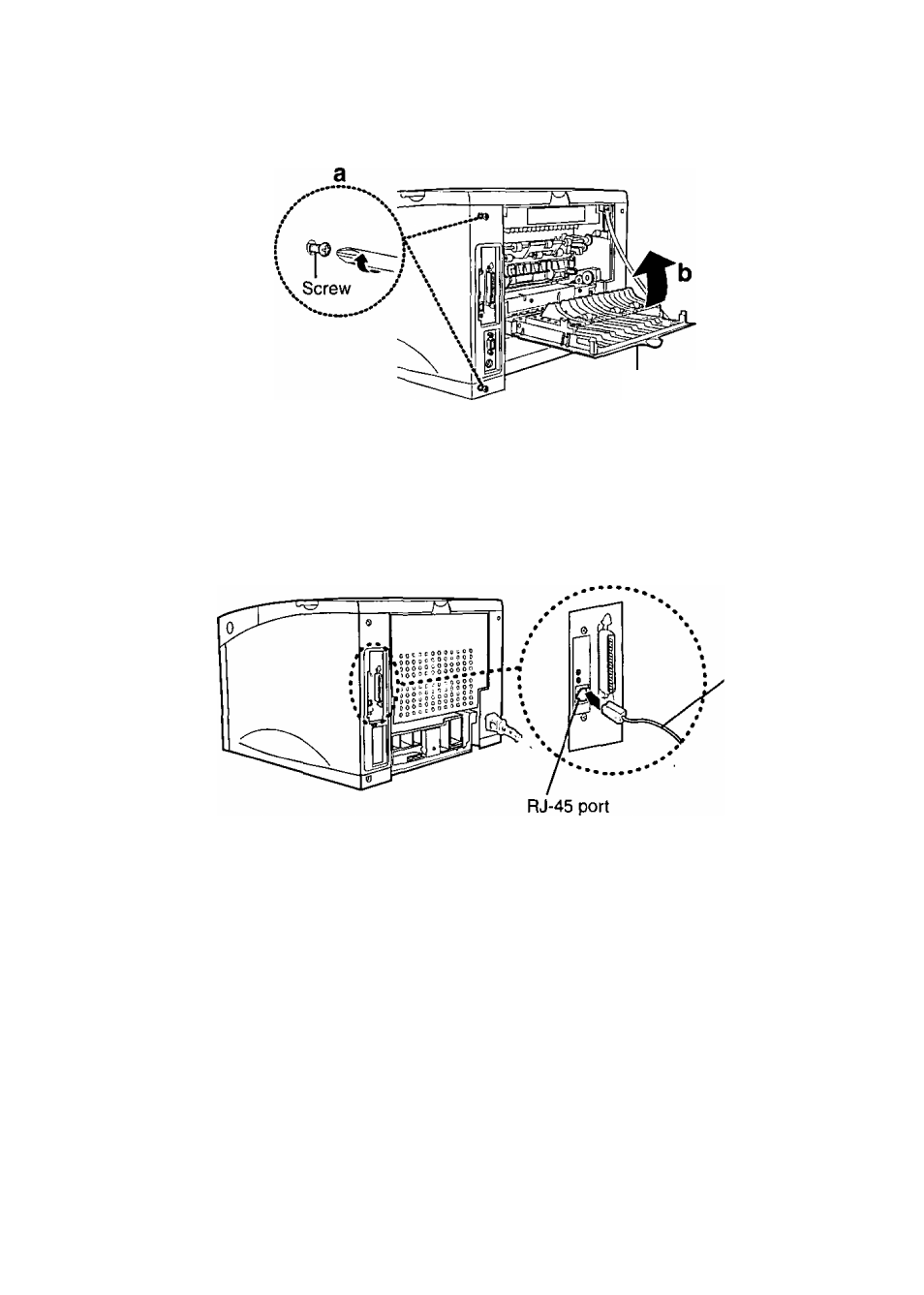

a)
Gently tighten the two screws.
b)Close the rear cover.
Rear cover
Q
Replace the 1st cassette, then reconnect any interface cables and
power cord.
10
Connect a twisted-pair network cable (not supplied) to the RJ-45
port.
11
Turn ON the printer.
, A twisted pair
network cable
N
otes
• The top green LED comes on when the cable is connected to the port on the Network
Card.
• After booting, the bottom green LED should blink irregularly and the top green LED
should come on continuously.
10
