Tuning the TV Set to the Video Playback Channel
The adjustments described on this page are not
necessary, if the VTR is connected to the TV set via the
Video/Audio output sockets.

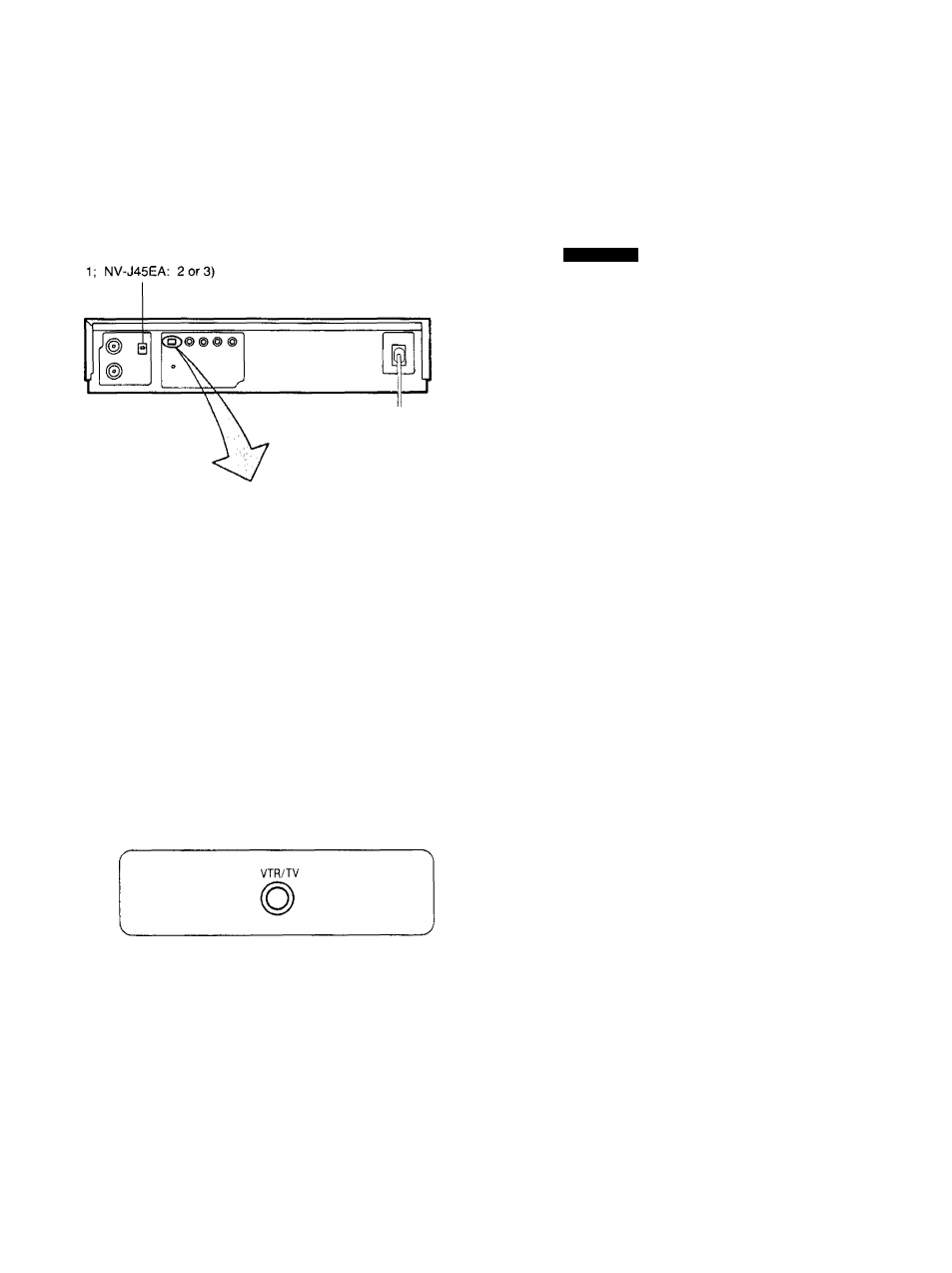

Video Playback Channel Selector
This switch is used to select the video playback channel
which is not occupied with any TV station.(NV-J45A: 0 or
□
OFF ON
TEST
SIGNAL
Tune your TV to VHF channel as shown below.
Confirm by your TV that the received test pattern is as
shown below.
NV-J45A: VHF channel 0 or 1*
NV-J45EA; VHF channel 2 or 3
NV-J45A only
*ln some areas
channel 0 may be
used by focal TV
station. In this case
switch to channel 1.
6 Set the Test Signal Switch to "OfT. Your TV is now
ready to receive the RF output signal from the VTR.
□
OFF ON
TEST
SIGNAL
7
To check, playback a pre-recorded tape and comfirm
that the picture quality is satisfactory.
1
Turn the TV set on and select the AV programme
position or another programme position that is not
occupied by any TV station.
2
Press the VTR On/Off Switch to turn the VTR On.
(FRONT SIDE)
o
VTR
• The corresponding indicator lights up.
3
Press the VTR/TV Selector to "VTR” position.
VTR Indicator will appear in the Multi-Function
Display.
4
Set the Test Signal Switch to "On”.
□
OFF ON
TEST
SK3NAL
<
