Location of Controls

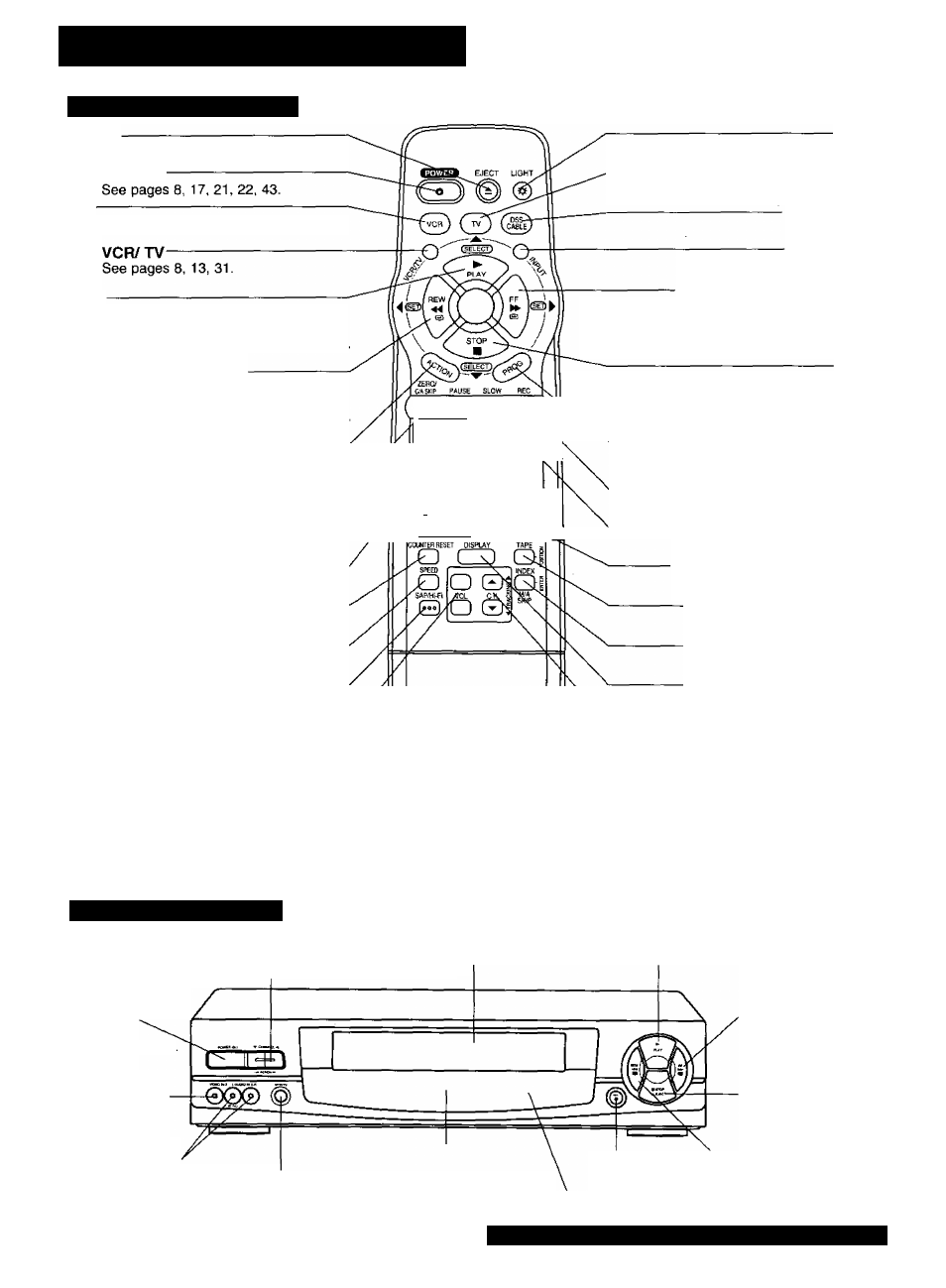

Remote control Buttons
EJECT
See pages 12, 54.
POWER
VCR
See page 22
PLAY
See pages 12, 25, 27, 29, 31,37, 45.
SELECT UP
See pages 8~11,16-21,24, 25, 27-30,33-40,42, 43
REWIND/ SEARCH
See pages 12, 28, 29.
SET
See pages 11, 16-21, 34, 35, 37, 42, 43,
ACTION
See pages 9-11,16, 17-21. 24, 25, 30, 33-36, 38-40, 42, 43.
ZERO SEARCH/ COMMERCIAL ADVANCE-
See pages 25, 30.
PAUSE
See pages 12, 13, 31.
NUMBERED KEYS
See pages 13, 21,22, 24, 28, 43.
COUNTER RESET
See page 30.
SPEED
See page 13.
SAP/Hi-Fi
See page 33.
VOLUME UP/ DOWN
See page 22.
0 0 0. j '
© © ©'
© ® ®
^ ^(LAi.'ULI '
® ® Ok
LIGHT
See page 54.
TV
See page 22.
DSS/ CABLE
Seepage 22,
INPUT ^ V.
See page 31.
FAST FORWARD/ SEARCH
See pages 12, 25, 28, 29.
SET
See pages 8-11,16-21,24, 25, 27-30, 33-40,42, 43.
STOP
See pages 12, 13, 27, 31.
SELECT DOWN
See pages 8-11,16-21, 24, 25, 27-30, 33-40, 42, 43.
PROGRAM
See pages 16, 17, 21, 37.
-------------------------- RECORD
See pages 13, 31.
SLOW
See page 12.
ADD/ DELETE
See pages 17, 19-21, 34, 35, 43.
TAPE POSITION
See page 38.
INDEX/ MOVIE ADVANCE
See pages 27-29.
DISPLAY
See pages 30, 32, 46.
CHANNEL UP/ DOWN
See pages 8-11, 13, 31, 42, 43, 45.
Light Tower Universal Remote Control
Light button: When the LIGHT button is pressed, the buttons which can be activated in the seiected mode will light and the
selected mode button (TV/VCR or CABLE/DSS) will flash for 5 seconds. If no buttons are pressed within 5
seconds, the light will turn off in order to conserve battery power. Also while holding down the buttons,
the selected mode button will flash so you will be able to see, in the dark, which mode has been selected.
EJECT button: When EJECT is pressed, the tape is ejected from Cassette Compartment.
If EJECT is pressed during recording, the VCR will not respond to the command.
Front View of the VCR
CHANNEL UP/ DOWN Cassette Compartment
TRACKING/ V-LOCK/ ACTION/ PROG See pages 12, 13, 31,45.
See pages 8-10, 13, 16, 43, 44.
POWER
See pages
8, 17, 21,22, 43, 44
VIDEO Input
Connecter
See page 31.
PLAY/ SELECT UP
See pages 10, 12, 16, 25, 37, 43-45.
FAST FORWARD/
SEARCH/ SET
See pages 10,16, 25,43.
AUDIO Input
Connecter(L/R)_____
See page 31. VCR/TV selector
See pages 8, 13.
Multi Function Display
See pages 12, 13, 17, 21, 31, 55.
RECORD
See pages 13, 38.
Remote Sensor
STOP/ EJECT/
SELECT DOWN
See pages
10, 12, 13, 16, 43.
REWIND/ SEARCH/ SET
See pages 10, 16, 43.
54
