Belt Drives CC-140 - Manual (Page 7)

24. Damage can / will occur to the basket if it is not supported correctly, also damage will occur to the
“clutch hub / basket” bearing if hub is not pressed out and in properly.
25. You can test your current clutch hub bearing by holding the clutch hub and spinning the clutch
basket, basket should spin freely and smoothly, no notching or jumping, if basket does not spin
freely and smoothly, replace hub bearing, recheck after installing new clutch hub.

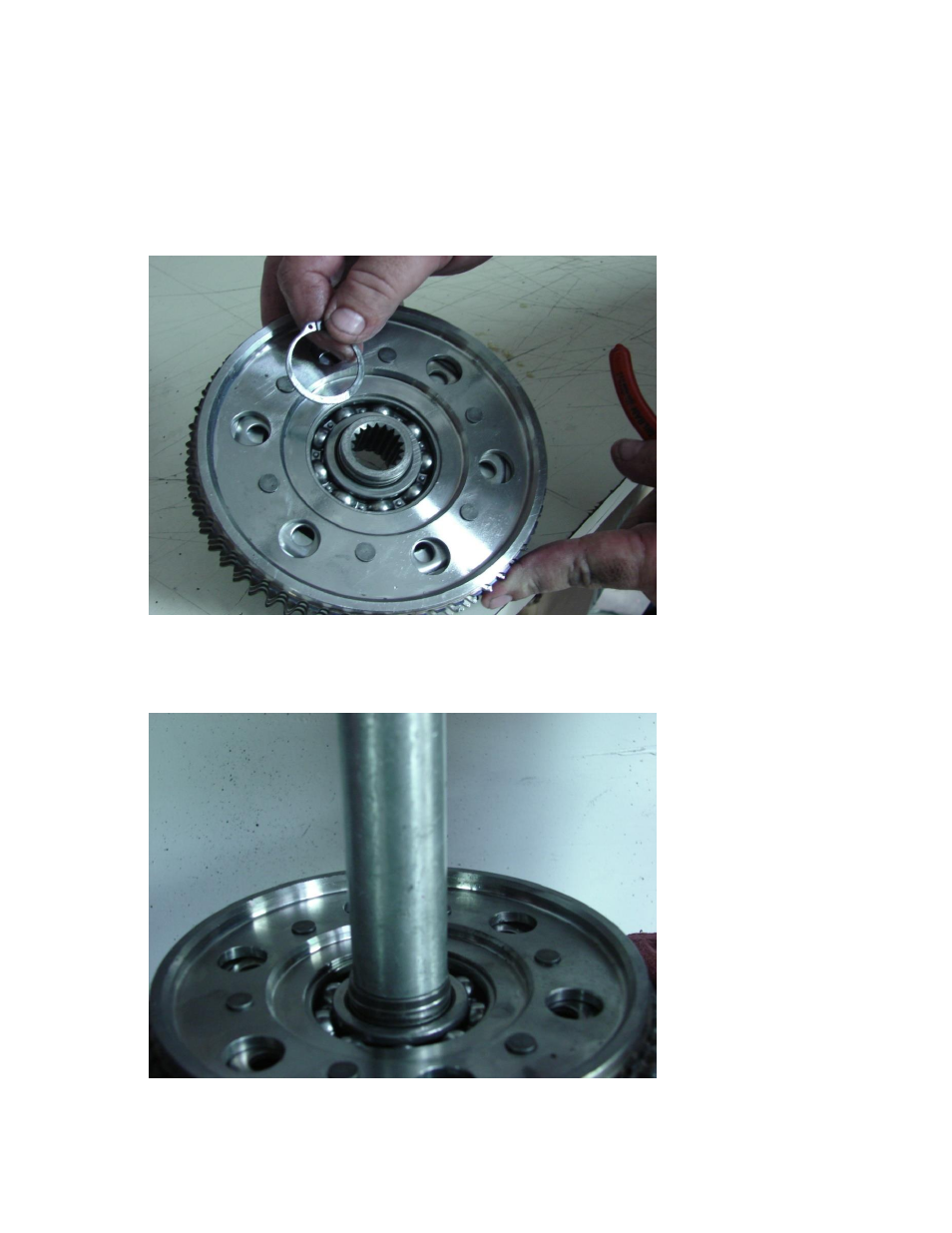

26. Start by removing the retaining ring on the backside of the clutch hub at the bearing. SEE FIG.#12
FIGURE #12
27. You will need to support the clutch basket high enough off of the plate to press the clutch hub out
of the bearing, use something a bit smaller than the O.D. “outer diameter” of the clutch hub shaft
so it will fit through the clutch hub bearing .SEE FIG.#13A & 13B
FIGURE #13A
