Belt Drives TF-2000 User Manual
Belt Drives For motorcycles
INSTALLATION FOR TOP FUEL 14MM DRIVE
Kit numbers TF-1000, TF-2000
Refer to
Warranty, Introduction, belt tracking
and
starter gear problems, alignment procedure
and
3" Electric
Start Installation for FXR and Softail
for general instructions.

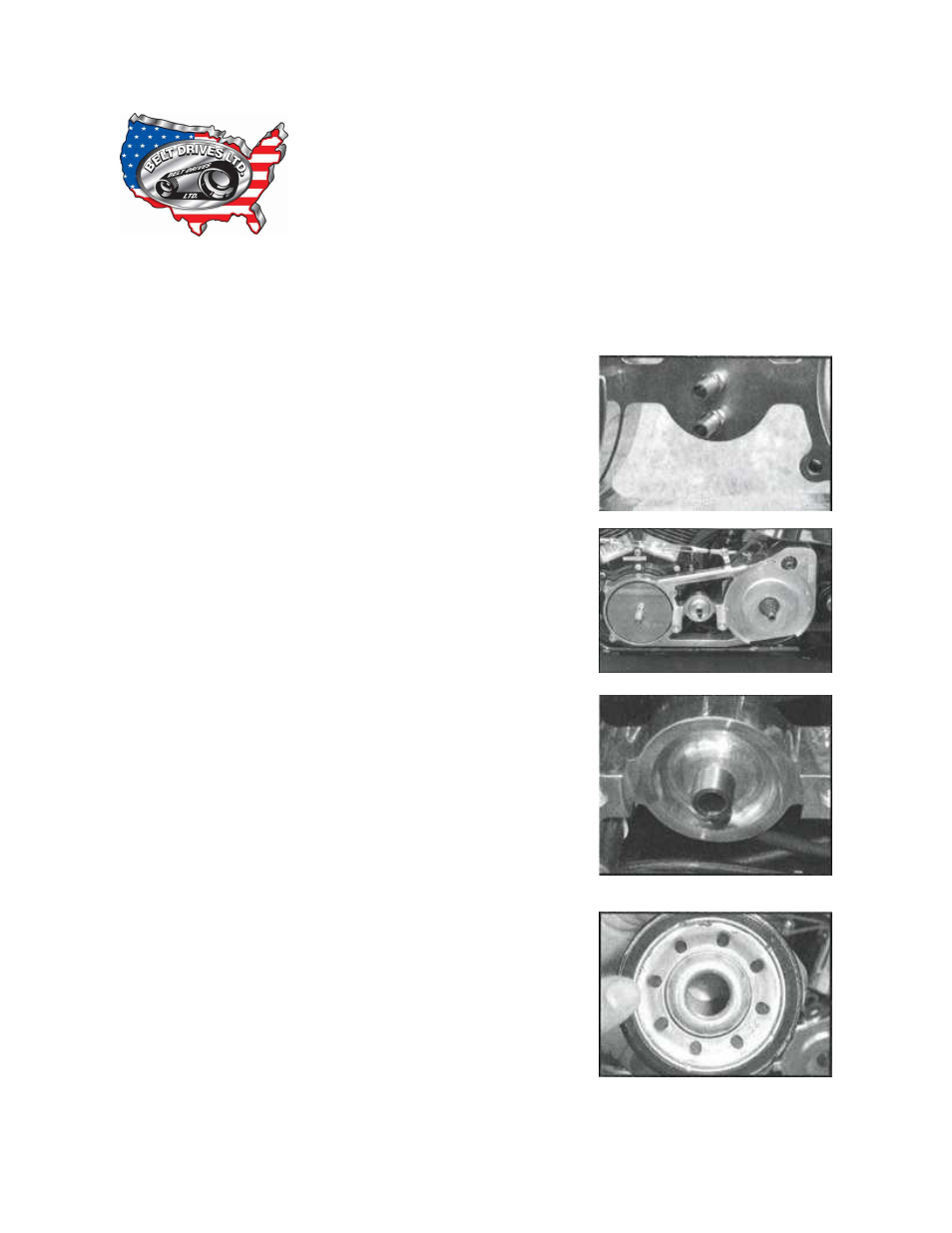

1. Install oil line fittings on back side of motor plate, cut hose to make 2 pieces, top fitting is for oil return ( oil out
of filter), bottom fitting is for oil feed ( oil into filter).
2. Install motor plate with alternator cover over engine spacer and install
the 2 standoffs. Be sure that the motor plate is aligned properly.
Fig. 1
Fig. 2
Fig. 3
3. Install threaded oil filter mount on front side of motor plate, grease
rubber gasket on oil filter and install hand tight. (Fig. 4 & 5)
Install starter
pinion gear supplied with kit. (See PG-100 Installation).
Fig. 4
1
