Belt Drives CC-140 - Manual (Page 12)

FIGURE #21

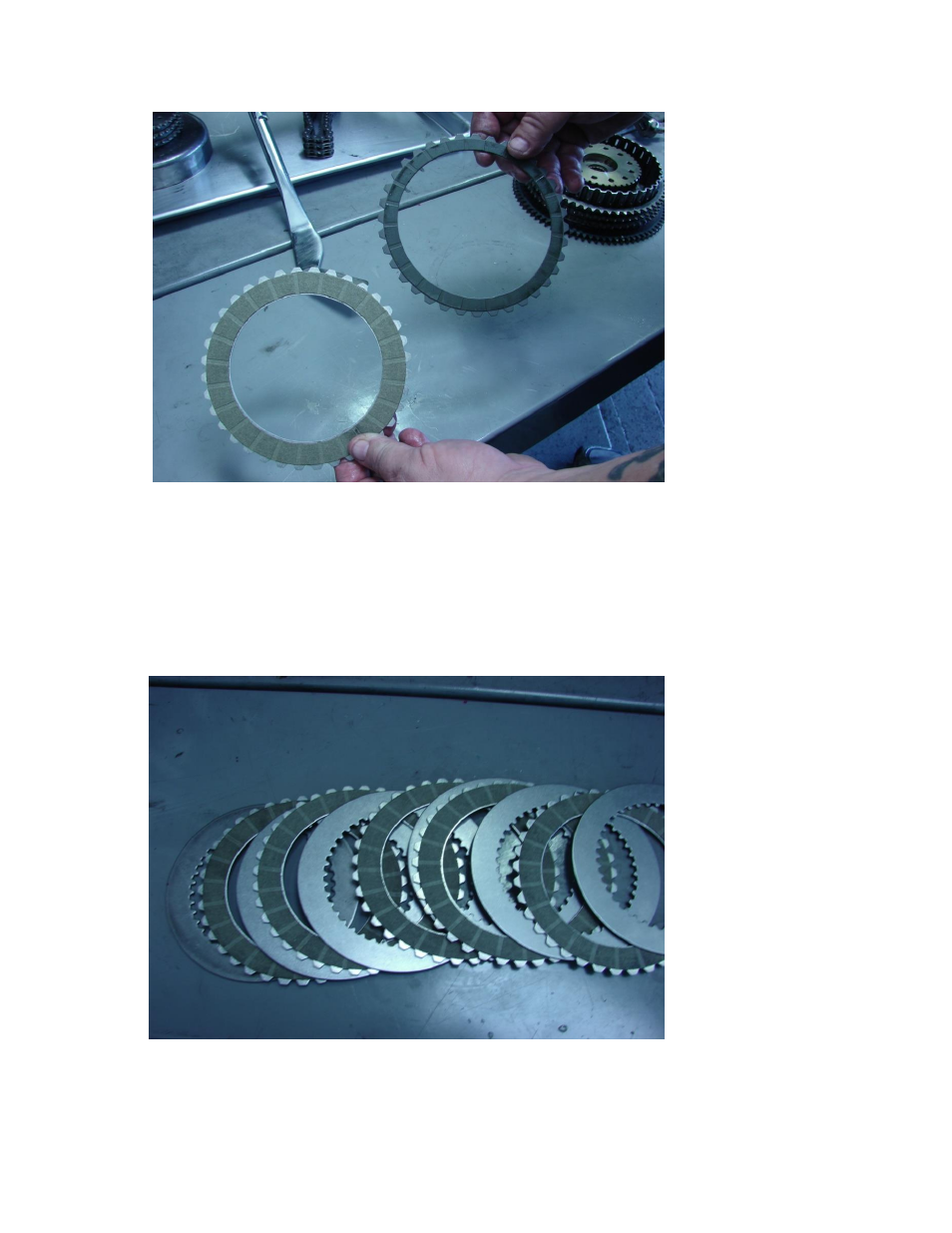

41. Next you will need to stack the clutch plates, you will have (1) thicker steel clutch plate this is the
backing plate, the backing plate (BKG.PLT.) loads onto the clutch hub first. It measures .120 thick.
The (5) remaining steel drive plates (STL.) measure .078 thick, and the (5) friction plates (FR.)
measure .118 thick, the clutch plates will stack as follows: BKG.PLT., FR., STL., FR., STL., FR., STL,.
FR., STL., FR., STL. SEE FIG #22
FIGURE #22
