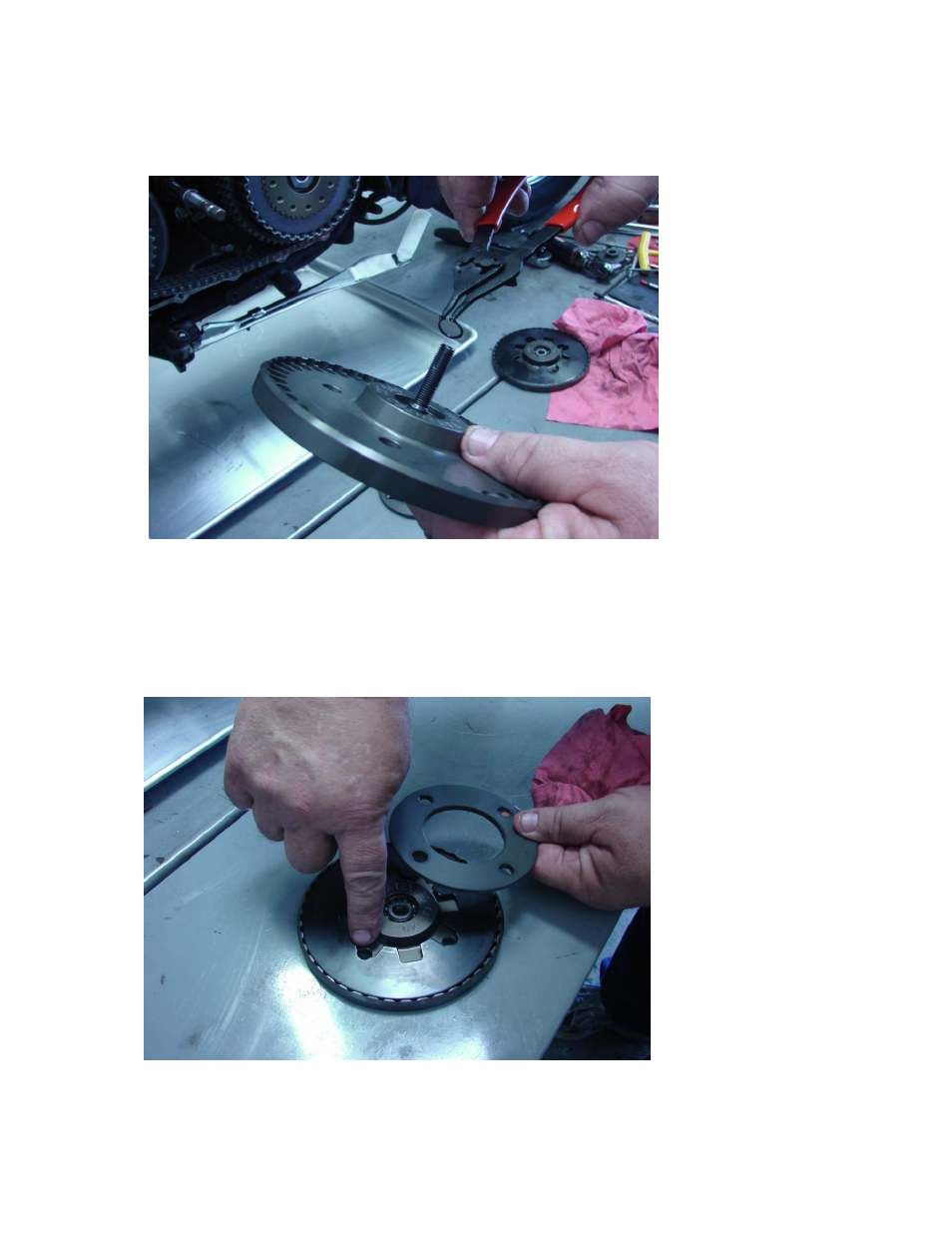

42. Install the clutch adjusting screw in from the backside of new pressure plate and install new
retaining ring. SEE FIG.#23
FIGURE #23
43. Time to install the (42) 5/16” ball bearings into the bearing pockets of the pressure plate, you
should perform this task over a pan of some sort, this will help catch any dropped ball bearings,
44. Cover the bearings with the diaphragm clutch spring aligning the (4) bolt reliefs in the spring with
the (4) bolt holes in the pressure plate, align the (4) holes of spring retainer “beveled side down” on
top of diaphragm spring. SEE FIG.#24
FIGURE #24
