48. Install outer primary cover screws , tighten in correct sequence and to correct torque spec,

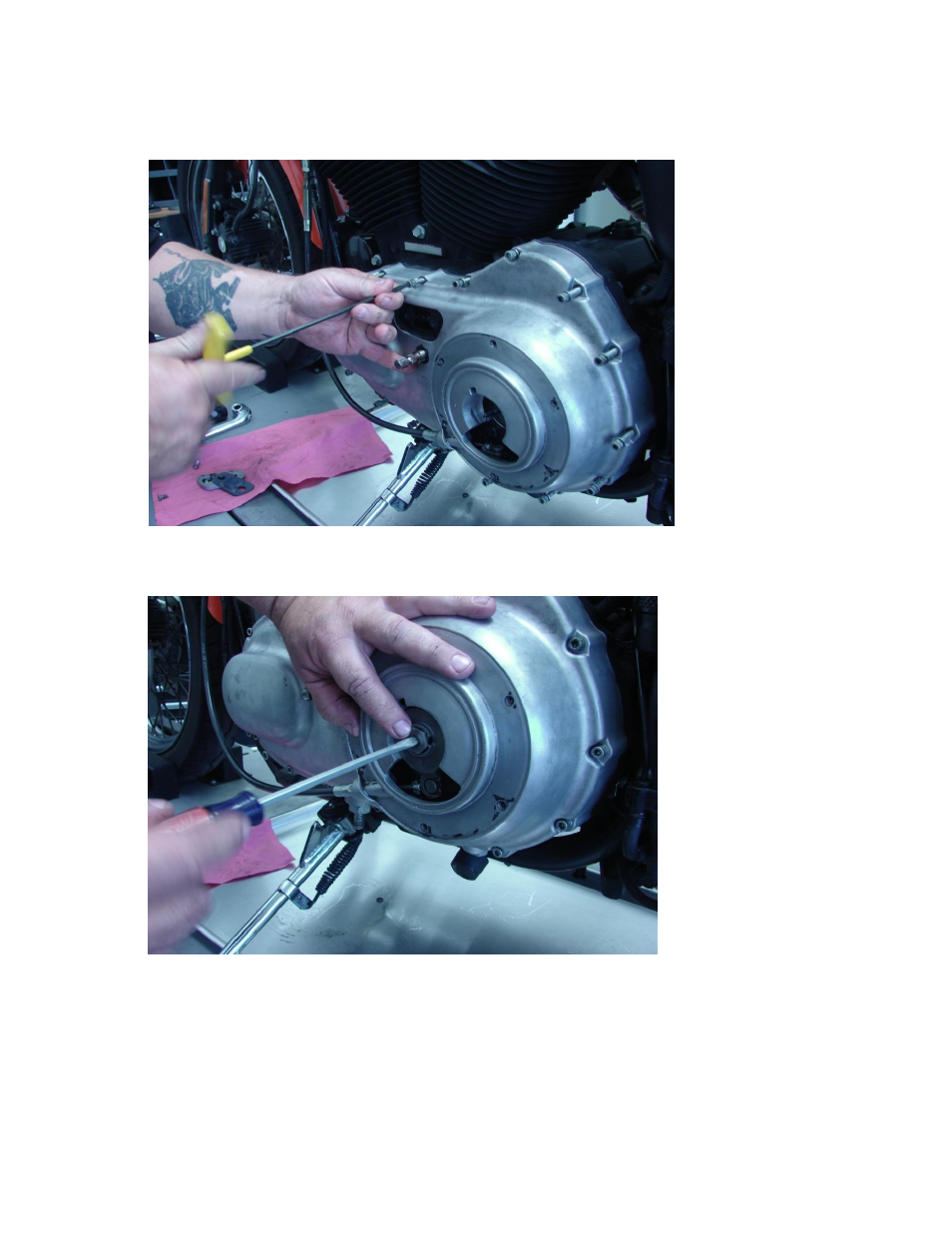

sequence and specifications are in your OEM service manual. SEE FIG.#27
FIGURE #27
49. Reconnect clutch cable to the coupling and connect the coupling to inner and outer ramp, install
well nut so it will sit down into hex pocket, adjust clutch as per OEM specifications. SEE FIG.#28
FIGURE #28
50. Reinstall lock plate and spring, readjust free play in clutch cable, tighten cable jam nut, slide rubber
boot back over cable adjuster.
51. Install new large inspection cover gasket / seal/ o-rings and inspection cover, tighten screws in
correct sequence and torque spec, as per OEM service manual.
52. Reinstall rubber shift shaft spacer and foot shift lever / linkage, tighten shift lever pinch bolt to
spec.
