Belt Drives CC-140 - Manual (Page 2)

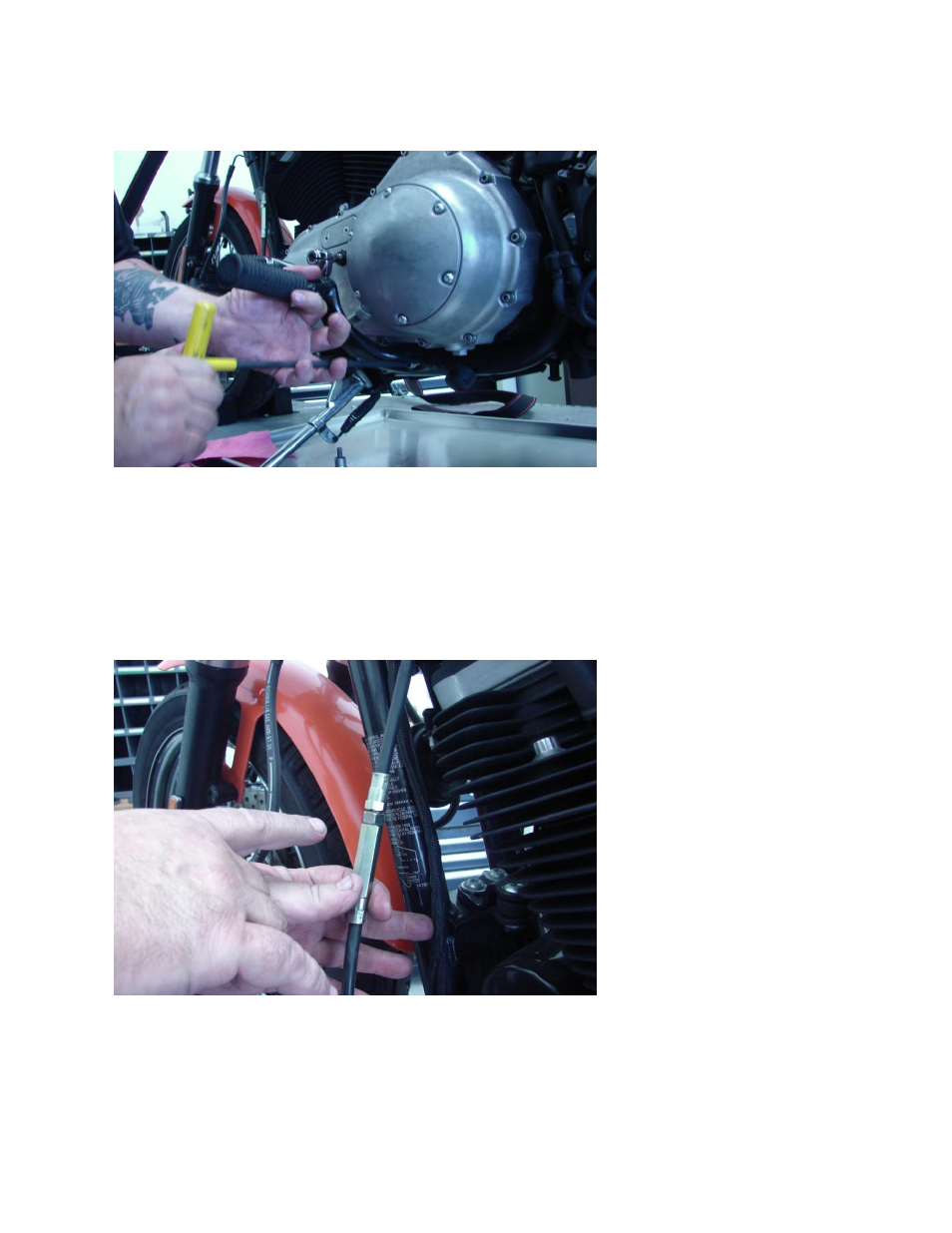

SEE FIG. #2
FIGURE #2
6. Slide rubber boot on clutch cable “down or up” to expose the clutch cable adjuster.
7. Using (2) open end wrenches loosen adjuster jam nut and fully collapse cable adjuster. SEE FIG. #3
8. Remove the larger inspection cover “(6) screws” and seal / gasket.
9. Using a flat blade screw driver, loosen the clutch adjuster screw all of the way
10. Remove the spring, lock plate and well nut from outer ramp. SEE FIG. #4
FIGURE #3
11. Loosen the primary chain adjuster jam nut & collapse the primary chain adjuster to its lowest point.
