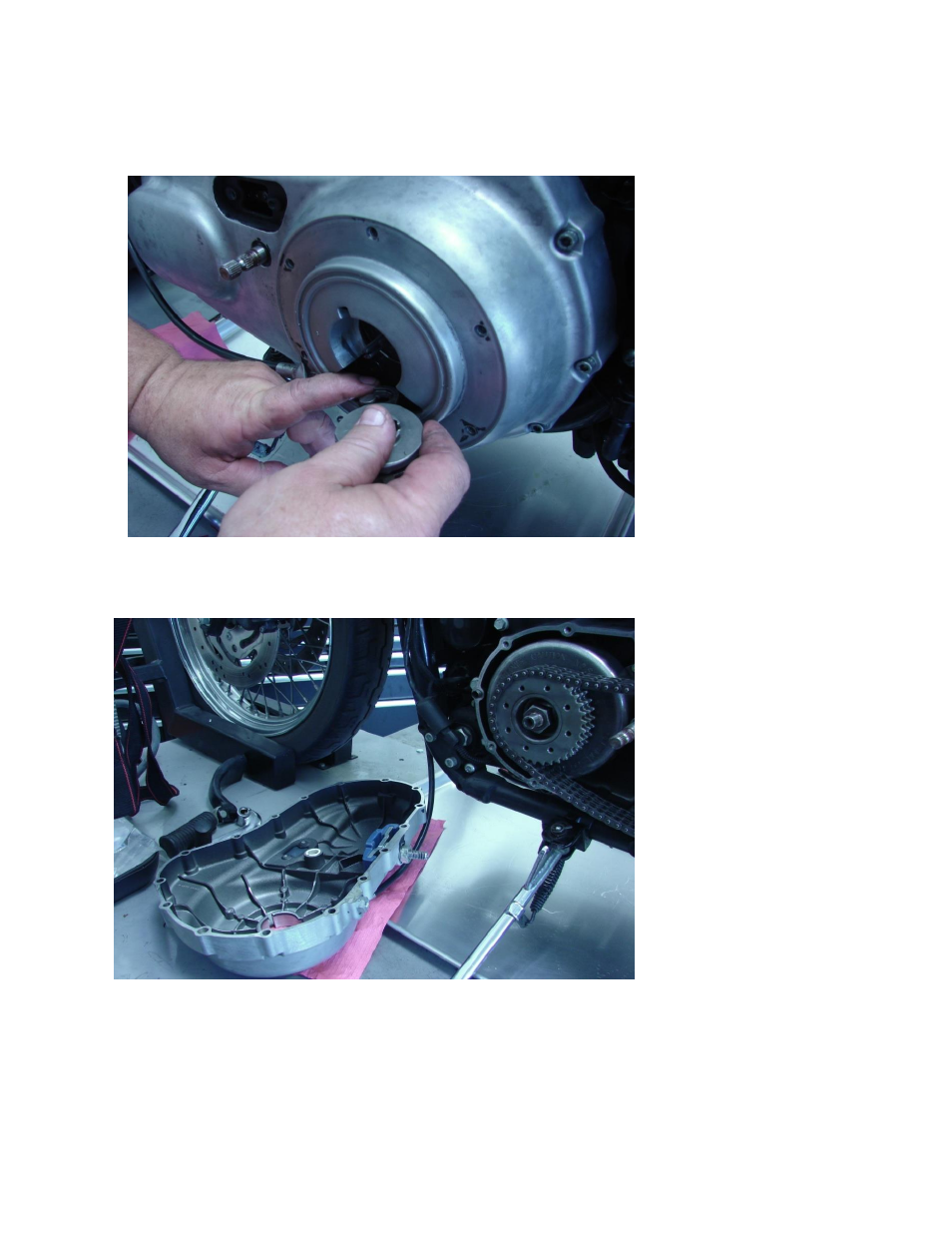

13. Remove the clutch cable from the inner and outer ramps, via the coupling, remember the (3) ball
bearings. SEE FIG. # 6
FIGURE #6
14. Remove outer primary cover and gasket, with clutch cable still attached, set to the side. SEE FIG.#7
FIGURE #7
15. Collapse and remove the pressure plate diaphragm spring, retaining ring, spring seat & pressure
plate. SEE FIG.#8 *
16. Note* Takes a special spring collapsing tool for # 15 above.
