FIGURE #17

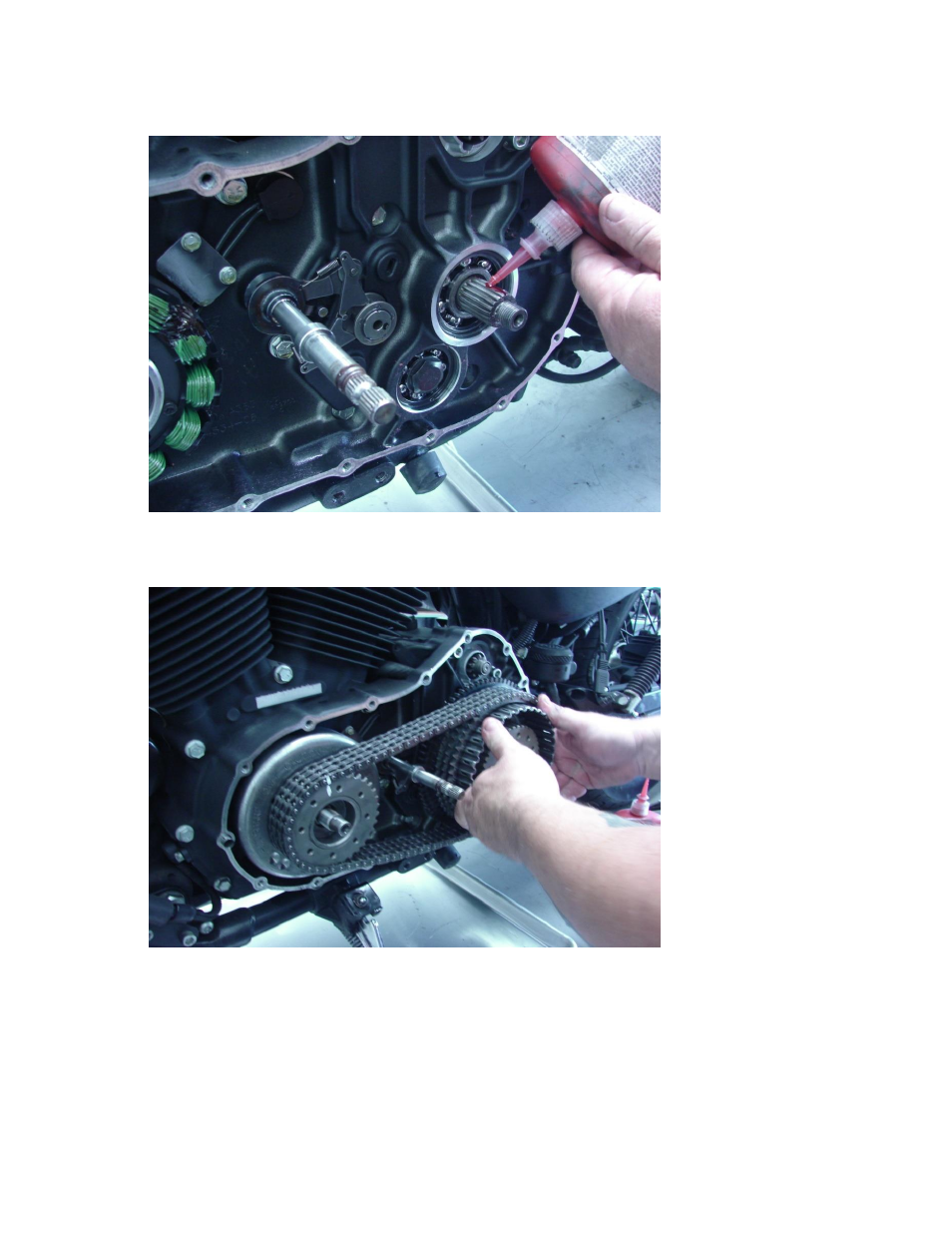

33. Reinstall primary drive train components. SEE FIG. #18
FIGURE #18
34. Apply RED LOCTITE to the threads of the engine sprocket shaft, and to the threads of the
transmission mainshaft. SEE FIG. #19
35. Install the sprocket shaft nut, and the mainshaft beveled washer and mainshaft nut, torque to OEM
specifications, the word out is on the mainshaft beveled washer, this faces outward.
36. You will need to use a primary sprocket locking tool to achieve the proper torque . SEE FIG. #20
37. To make a locking tool, you can cut a piece of 3/16” x2” flat metal strap 4-1/4” long.
