Page 9

.....x4

40528
King Pin Screw

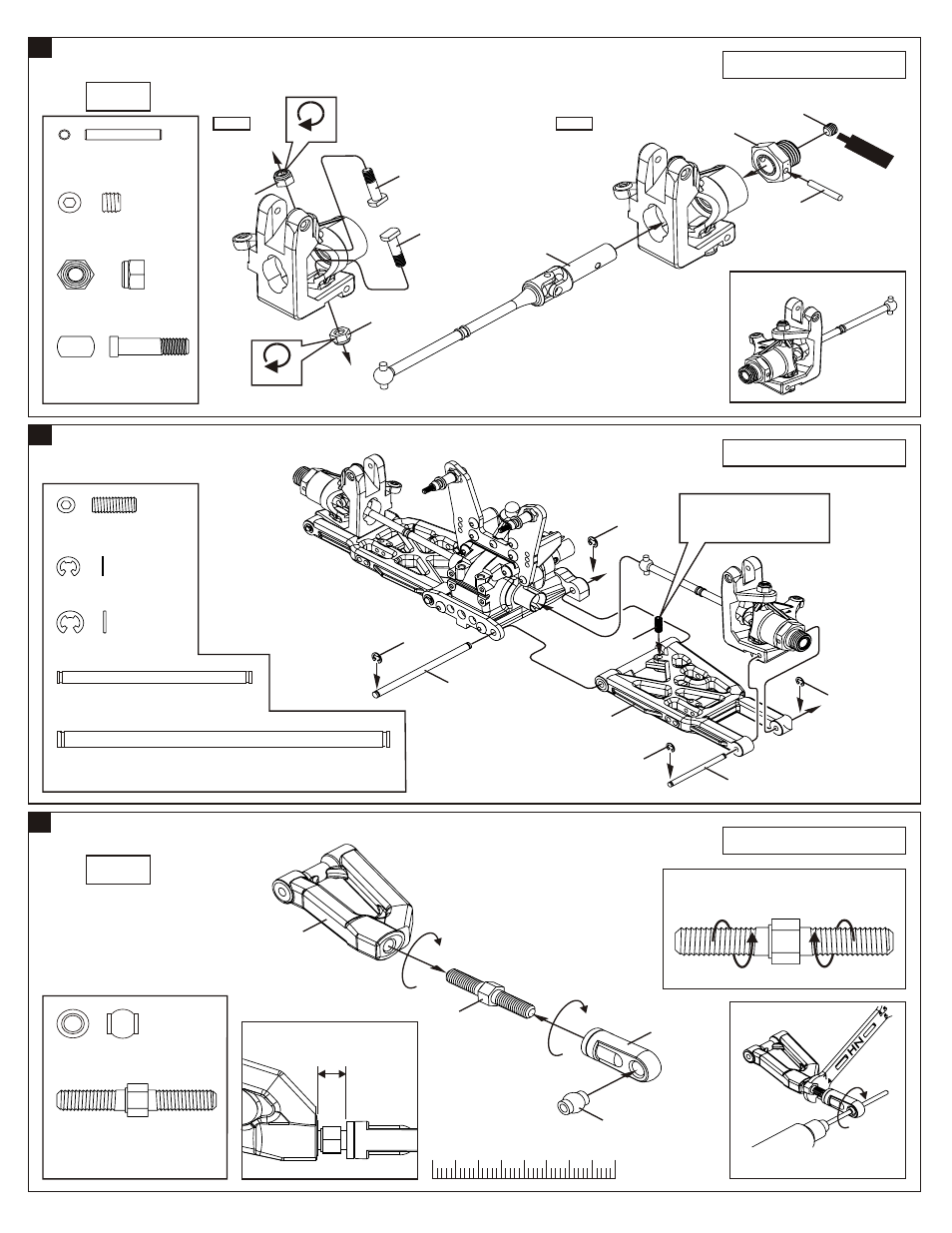

ASSEMBLY OF THE STEERING KNUCKLE & C-HUB

.....x4

94042
4mm
Nylon Nut

.....x2

94036
5x4mm
Set Screw

.....x2

36055
2.5x16.8mm
Pin

Step 2

Step 1

Assemble both left and right sides.

40528

4mm

40521

40526

5x4mm

rew

Tighten

Right side

ASSEMBLY OF THE FRONT LOWER ARMS

90021
3mm E-Ring

.....x4

90020
2.5mm E-Ring

.....x4

36870
4x10mm
Set Screw

.....x2

40546
3x42.7mm Arm Shaft

.....x2

40524
4x73mm Arm Shaft

.....x2

Assemble both left and right sides.

40546 (3x42.7mm)

2.5mm

3mm

40524 (4x73mm)

4x10mm

3mm

2.5mm

40535

A 4x10mm set screw is used
to adjust ride-height.

36055

ASSEMBL OF THE FRONT UPPER ARMS

36860
5x35mm
Turnbuckle

.....x2

36850
7mm Ball

.....x2

Assemble both left and right sides.

40537

36860

36690

36850

Step detail

Use tools to tighten as shown.

Approx. 7.5mm

LEFT SIDE

Step detail

Tighten

Note the locking direction!
