34

35

33

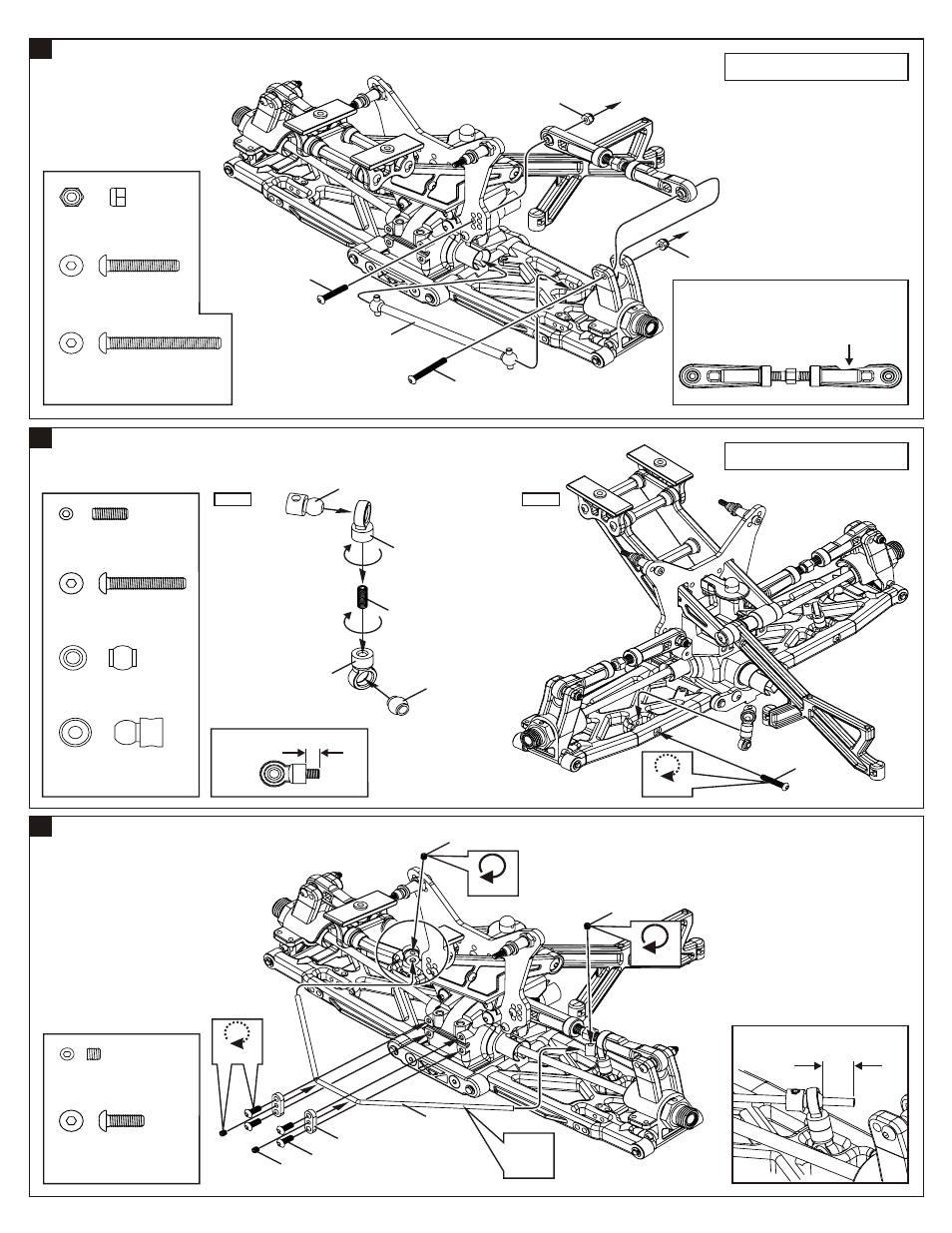

ASSEMBLY OF THE REAR SUSPENSION UPPER ARMS

94041
3mm Nylon Nut

.....x4

94005
3x16mm
Hex Screw

.....x2

94008
3x25mm
Hex Screw

.....x2

Assemble both left and right sides.

3x16mm

34028 (100mm)

3x25mm

3mm

3mm

Put the cut out ball end toward the wheel. Make
left and right hand side the same.
(Note the cut out.)

Step detail

94035
3x8mm
Set Screw

.....x2

94006
3x18mm
Hex Screw

.....x2

.....x2

30341
Stabilizer Ball

.....x2

30403
6mm Ball

3x8mm

40540

40540

30341

30403

Step detail

4mm

Step 1

ASSEMBLY OF THE REAR STABILIZER BAR

Assemble both left and right sides.

Step 2

Do Not

Over Tighten

3x18mm

.....x4

94033
3x3mm
Set Screw

94002
3x8mm
Hex Screw

.....x4

ASSEMBLY OF THE REAR STABILIZER BAR

*Approx. 4mm

Step detail

Ensure

Free

Movement

3x3mm

Tighten

3x3mm

Tighten

40530

40533

3x8mm

3x3mm

Do Not

Over Tighten
