46

ASSEMBLY OF THE

ELECTRIC SPEED

CONTROLLER MOUNT

ONTO CHASSIS

EXTREMELY IMPORTANT

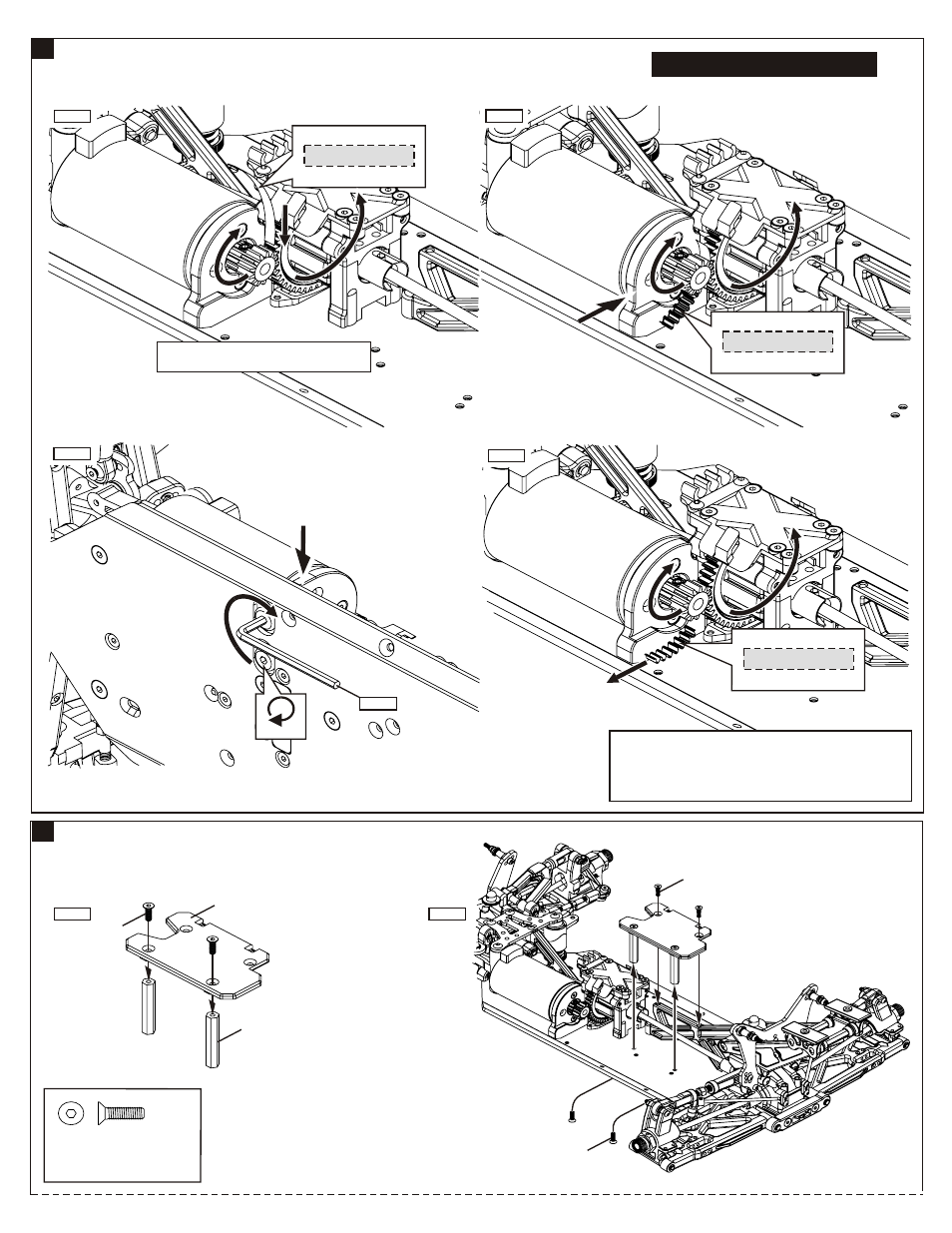

45

ADJUSTING MOTOR AND SPUR GEAR MESH

Paper for Gear Mesh

Step 2

Step 1

Step 3

Step 4

PUSH

PUSH

Tighten

•Adjust the motor mount position to get proper gear mesh.

•To get a perfect gear mesh , place a piece of notebook paper
between the gears and tighten the motor mount screws.

•The spur gear may be damaged if the gear mesh is wrong.

94019
3x10mm
Flat Head
Hex Screw

.....x6

3x10mm

41206

41207

3x10mm

3x10mm

3mm

Step 2

Step 1

Insert a notebook paper between spur gear
and motor gear to make correct gear mesh.

PULL OUT

Paper for Gear Mesh

Paper for Gear Mesh
