Page 27: Extremely important

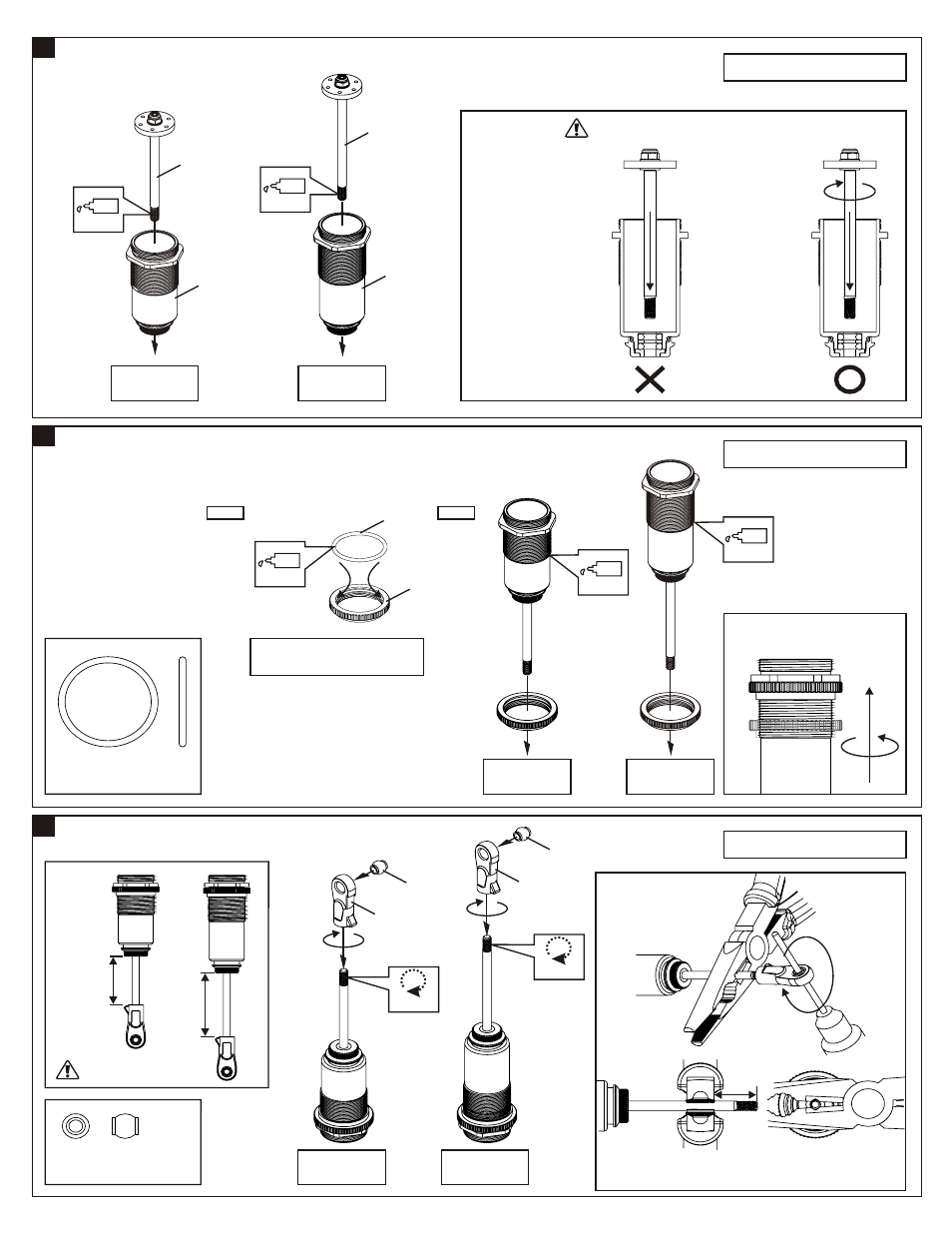

ASSEMBLY OF THE SHOCKS

Assemble both left and right sides.

REAR SHOCK

FRONT SHOCK

.....x4

30403
6mm Ball

30403

40643

Step detail

Do Not

Over Tighten

Do Not

Over Tighten

Attention to length.

Assemble both left and right sides.

ASSEMBLY OF THE SHOCKS

REAR SHOCK

FRONT SHOCK

Oil

41007
P10 O-RING

.....x4

Step 2

Step 1

Fit the o-ring into groove before
assembly.

Step detail

TOP

ASSEMBLY OF THE SHOCKS

Assemble both left and right sides.

REAR SHOCK

FRONT SHOCK

Oil

(LONG)

(SHORT)

(LONG)

Do not push the shock
shaft straight down;
O-ring can be damaged.

Slowly twist the shock
shaft down to the
bottom. Also put a drop
of shock oil in before
inserting shaft.

EXTREMELY IMPORTANT

41007

41006

Oil

Step detail

•Use tools to tighten as shown.

14mm

•Be careful not to damage the shock shaft.
