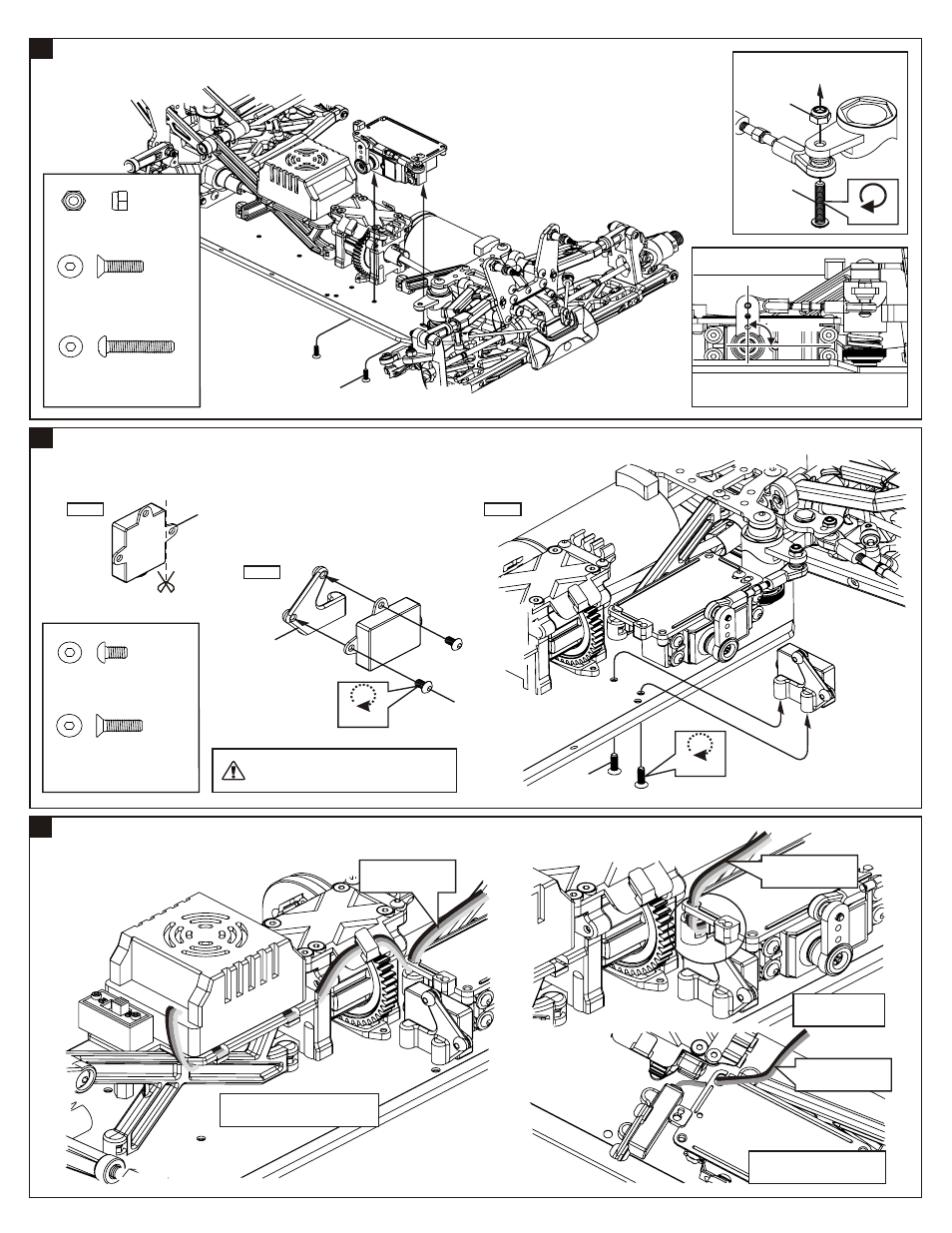

ASSEMBLY OF THE STEERING SERVO ONTO THE CHASSIS

STEERING SERVO

PERSONAL TRANSPONDER

ELECTRONIC SPEED CONTROL

94005
3x16mm
Hex Screw

.....x1

94019
3x10mm
Flat Head
Hex Screw

.....x2

94041
3mm Nylon Nut

.....x1

Tighten

To receiver CH2

To receiver CH1

To receiver CH3
